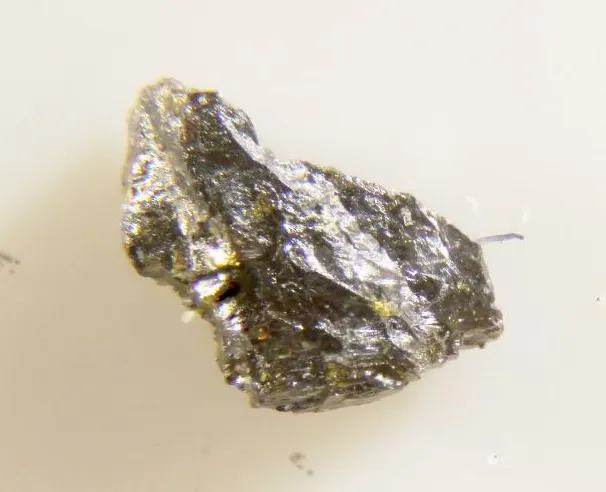

Foordite

Sn2+Nb2O6
IMA status
  • Approved
IMA symbol
Foo
Discovered
1988
Also known as
  • Foordiet
  • IMA1984-070

Where it forms, where it's found

Geological setting

In alluvium, presumably derived from a granite pegmatite.

Type locality
Lutsiro
  1. Rutsiro District
  2. Western Province
  3. Rwanda

-1.9167°, 29.4333°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark brown · yellowish brown · olive brown
Streak
Yellowish white
Tenacity
brittle
Cleavage
Perfect

(100), also (011) poor

Fracture
Irregular/Uneven
Density
6.73 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 45°
Refractive index
2.294
Surface relief
Very high
Principal indices
nβ 2.294
Birefringence
0.010 +
Dispersion
strong
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#10
Cell parameters
a = 17.09 Å · b = 4.87 Å · c = 5.55 Å
Cell angles
β = 90.85 °
Ratio a:b:c
1 : 0.285 : 0.325
Type-locality form

Small masses and pebbles.

Comment

C2/c

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
41NbNiobiumNiobium292.906185.812
46.39%
50SnTinTin1118.710118.710
29.64%
8OOxygenOxygen615.99995.994
23.97%
Total400.516100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Pb

Synonyms

  • Foordiet
  • IMA1984-070

In other languages

German
Foordit · IMA 1984-070
Spanish
Foordita
Italian
Foordite
Chinese
傅锡铌矿

Classification

Strunz
10th ed.

4.DG.15

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DGWith large (+- medium-sized) cations; chains of edge-sharing octahedraGroup
  • 4.DG.15FoorditeSpecies
Dana
8th ed.

08.03.10.02

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.03AB2O6Type
  • 08.03.10— unnamed intermediate level —Group
  • 08.03.10.02FoorditeSpecies
CIM

18.1.23

  • 18Niobates and TantalatesClass
  • 18.1Niobates and tantalates containing neither rare earths nor UGroup
  • 18.1.23FoorditeSpecies

Group, growth & confusion

In the same group
1 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1988Ercit, T.S. and Cerny, P. (1988) The crystal structure of foordite. The Canadian Mineralogist: 26: 899-903.
  2. 1990Jambor, John L., Vanko, David A. (1990) New Mineral Names. American Mineralogist, 75 (5-6) 706-713
  3. 1998Daltry, V.D.C., von Knorring, O. (1998) Type-mineralogy of Rwanda with particular reference to the Buranga pegmatite. Geologica Belgica: 1: 9-15. https://popups.uliege.be/1374-8505/index.php?id=1593
  4. 2005(2005) Foordite. Handbook of Mineralogy. Mineralogical Society of America

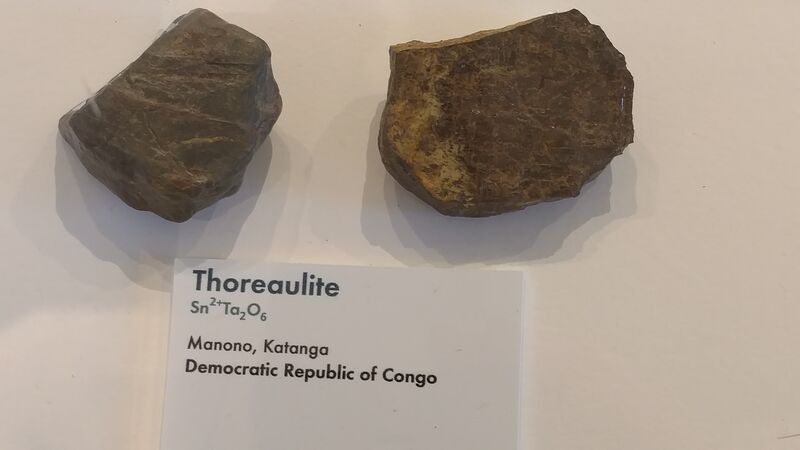

  5. 2008Uher, Pavel, Černý, Petr, Chapman, Ron (2008) Foordite-thoreaulite, Sn2+Nb2O6Sn2+Ta2O6: compositional variations and alteration products. European Journal of Mineralogy, 20 (4) 501-516 doi:10.1127/0935-1221/2008/0020-1845DOI: 10.1127/0935-1221/2008/0020-1845
