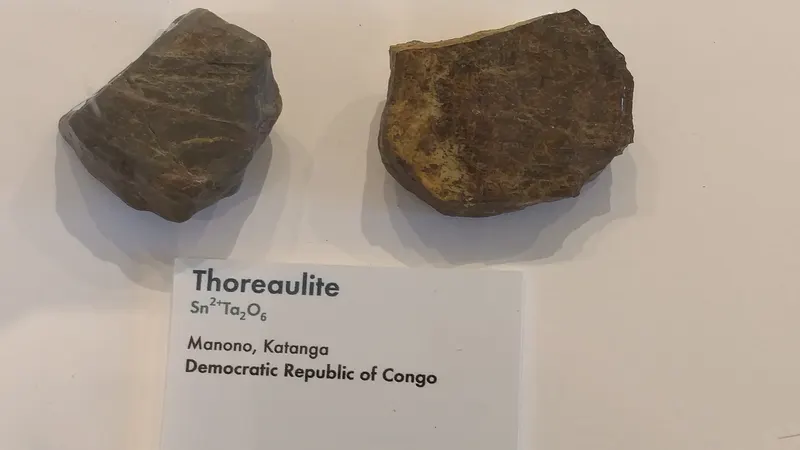

Thoreaulite

Sn2+Ta2O6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Tre
Discovered
1933
Also known as
  • Thoreauliet
  • Thoreaulit
  • Thorolit
  • +2 more

Where it forms, where it's found

Geological setting

Granite pegmatite (tin bearing)

Type locality
Manono-Kitotolo mine
  1. Tanganyika
  2. DR Congo

-7.2775°, 27.4508°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine or Resinous
Transparency
Opaque
Colour
Brown to yellow
Streak
Brown to yellow, slightly greenish
Cleavage
Perfect

On (100); on (011) imperfect.

Density
7.6 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 25 – 35° · 2V calc = 60°
Refractive index
2.39 – 2.52
Surface relief
Very high
Principal indices
nα 2.39 · nβ 2.42 · nγ 2.52
Birefringence
On {100} cleavages = 0.039.
Pleochroism
Non-pleochroic
Dispersion
r < v
Michel-Lévy diagramhighlighted lineδ = 0.0390
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]390 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation390 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 17.127(20) Å · b = 4.869(5) Å · c = 5.52(2) Å
Cell angles
β = 91 °
Ratio a:b:c
1 : 0.284 : 0.322
Z
4
Morphology

Crystals rough, prismatic [001].

Twinning

Lamellar twins, with composition face (010).

Type-locality form

Coarse crystals reaching several centimeters, without a characteristic shape and resembling wood tin.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
73TaTantalumTantalum2180.948361.896
62.76%
50SnTinTin1118.710118.710
20.59%
8OOxygenOxygen615.99995.994
16.65%
Total576.600100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Thoreauliet
  • Thoreaulit
  • Thorolit
  • Thorolita
  • Thorolite

In other languages

French
Thoreaulite
German
Thoreaulith
Spanish
Thoreaulita
Italian
Thoreaulite
Chinese
钽锡矿

Classification

Strunz
10th ed.

4.DG.15

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DGWith large (+- medium-sized) cations; chains of edge-sharing octahedraGroup
  • 4.DG.15ThoreauliteSpecies
Dana
8th ed.

08.03.10.01

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.03AB2O6Type
  • 08.03.10— unnamed intermediate level —Group
  • 08.03.10.01ThoreauliteSpecies
CIM

18.1.21

  • 18Niobates and TantalatesClass
  • 18.1Niobates and tantalates containing neither rare earths nor UGroup
  • 18.1.21ThoreauliteSpecies

Group, growth & confusion

In the same group
1 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1933Buttgenbach, H. (1933) La thoreaulite, nouvelle espéce minérale. Annales de la Société géologique de Belgique: 56: 327-331.
  2. 1941(1941) New mineral names. American Mineralogist, 26 (3) 235-236
  3. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  4. 1950Melon, J., Toussaint, J. (1950) La thoreaulite de Kubitaka (Punia, Maniema, Congo Belge) et la crystallographie de la thoreaulite. Annales de la Société géologique de Belgique: 74: B25-32.
  5. 1958Fleischer, M. (1958) New Mineral Names. American Mineralogist, 43 (9-10). 1006-1008
