Foshagite

Ca4(SiO3)3(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Fos
Discovered
1925
Also known as
  • Foshagiet

Where it forms, where it's found

Geological setting

Thermally altered limestone

Type locality
Crestmore quarries
  1. Crestmore
  2. Jurupa Valley
  3. Riverside County
  4. California
  5. USA

34.0248°, -117.3836°

18recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Silky
Transparency
Translucent
Colour
White
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Distinct (001)

Density
2.73 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.594 – 1.598
Surface relief
Moderate
Principal indices
nα 1.594 · nβ 1.594 · nγ 1.598
Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 10.32 Å · b = 7.36 Å · c = 14.07 Å
Cell angles
β = 106.4 °
Ratio a:b:c
1 : 0.713 : 1.363
Z
2
Type-locality form

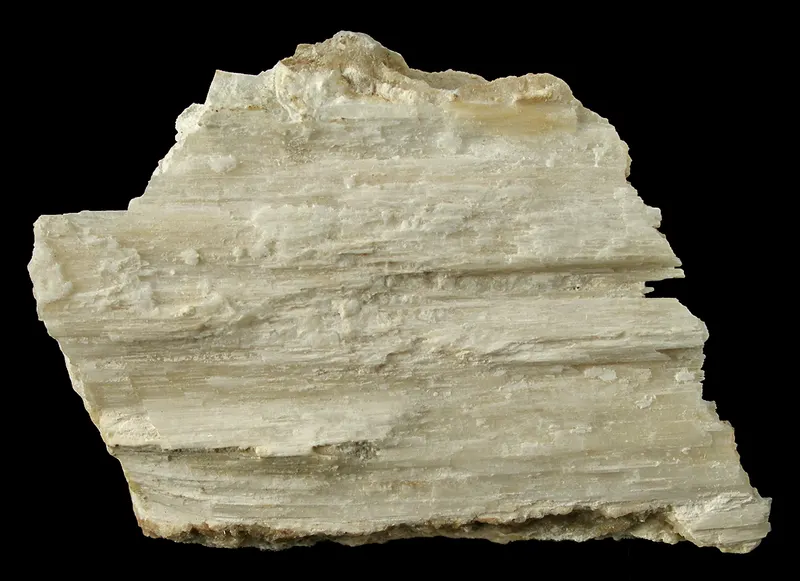

White veins of very compact fibrous structure with the fibers perfectly parallel and several inches long

Comment

Monoclinic. Point Group: 2/m; 2; or m: Space Group: A-centered.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1115.999175.989
41.65%
20CaCalciumCalcium440.078160.312
37.94%
14SiSiliconSilicon328.08584.255
19.94%
1HHydrogenHydrogen21.0082.016
0.47%
Total422.572100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Mg

Synonyms

  • Foshagiet

In other languages

German
Foshagit
Italian
Foshagite
Chinese
傅硅钙石

Classification

Strunz
10th ed.

9.DG.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DGInosilicates with 3-periodic single and multiple chainsGroup
  • 9.DG.15FoshagiteSpecies
Dana
8th ed.

65.02.02.01

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.02Single-Width Unbranched Chains, W=1 with chains P=3Type
  • 65.02.02— unnamed intermediate level —Group
  • 65.02.02.01FoshagiteSpecies
CIM

14.5.13

  • 14Silicates not Containing AluminumClass
  • 14.5Silicates of CaGroup
  • 14.5.13FoshagiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1925Eakle, Arthur S. (1925) Foshagite, a new silicate from Crestmore, California. American Mineralogist, 10 (4) 97-99
  2. 1931Vigfusson, V.A. (1931) The hydrated calcium silicates. American Journal of Science: 21: 67-78.
  3. 1938Flint, E.P., McMurdie, H.F., Wells, L.S. (1938) Formation of hydrated calcium silicates at elevated temperatures and pressures. Journal of Research of the National Bureau of Standards: 21(1): 617-638.
  4. 1943McMurdie, H.F., Flint, E.P. (1943) X-ray patterns of hydrated calcium silicates. Journal of Research of the National Bureau of Standards: 31: 225-228.
  5. 1956Hweller, L., Taylor, H.F.W. (1956) Crystallographic data for the calcium silicates. London, H.M.S.O.: 79 pgs (53).
