Gahnite

ZnAl2O4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ghn
Discovered
1807
Also known as
  • Automalit
  • Automalita
  • Automalite
  • +11 more

Where it forms, where it's found

Type locality
Falun mine
  1. Falun
  2. Dalarna County
  3. Sweden

60.5981°, 15.6131°

461recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789107.5 – 8/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Dark blue-green · yellow · brown · black
Streak
Grey
Tenacity
brittle
Fracture
Irregular/Uneven · Conchoidal
Density
4.62 g/cm³

Optical

Optical type
Isotropic
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation

Crystallography

Crystal system
Isometric
Space group
#222
Cell parameters
a = 8.062 Å
Morphology

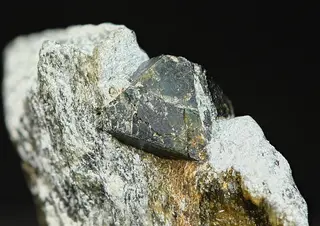

Crystals usually octahedral.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
30ZnZincZinc165.38065.380
35.66%
8OOxygenOxygen415.99963.996
34.91%
13AlAluminiumAluminium226.98253.964
29.43%
Total183.340100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg

Synonyms

  • Automalit
  • Automalita
  • Automalite
  • Automolit
  • Automolita
  • Automolite
  • Automolith
  • Dysluite
  • Fahlunite (of Karsten)
  • Gahnite (of von Moll)
  • Spinelle Zincifère
  • Spinellus superius
  • Zinc Spinel
  • Zinkspinell

In other languages

French
Gahnite
German
Gahnit
Spanish
Gahnita
Italian
Gahnite
Portuguese
gahnita
Japanese
亜鉛スピネル
Chinese
锌尖晶石
Russian
Ганит
Arabic
جانيت · جهنيت · غانيت

Classification

Strunz
10th ed.

4.BB.05

  • 4OxidesClass
  • 4.BMetal: Oxygen = 3:4 and similarDivision
  • 4.BBWith only medium-sized cationsGroup
  • 4.BB.05GahniteSpecies
Dana
8th ed.

07.02.01.04

  • 07Multiple OxidesClass
  • 07.02AB2X4Type
  • 07.02.01(Aluminum subgroup)Group
  • 07.02.01.04GahniteSpecies
CIM

7.5.5

  • 7Oxides and HydroxidesClass
  • 7.5Oxides of Zn, Cd and HgGroup
  • 7.5.5GahniteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. Sandhaus, D.J. and Craig, J.R. (1986) Gahnite in the metamorphosed stratiform massive sulfide deposits of the Mineral District, Virginia, USA. Tschermaks mineralogische und petrographische Mitteilungen, 35, 77-98.
  2. 1807von Moll, C.E.F. (1807) Uebersicht. Gahnit, aus Fahlun, Efemeriden der Berg- und Huttenkunde, 3, 75-92.
  3. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  4. 1953Swanson, H.E., Fuyat, R.K. (1953) Standard X-ray Diffraction Powder Patterns. National Bureau of Standards Circular 539, 2, 40.
  5. 1964SAALFELD, H. (1964) Strukturdaten von Gahnit, ZnAl2O4. Zeitschrift für Kristallographie - Crystalline Materials, 120 (1-6). 476-478 doi:10.1524/zkri.1964.120.16.476 DOI: 10.1524/zkri.1964.120.16.476
