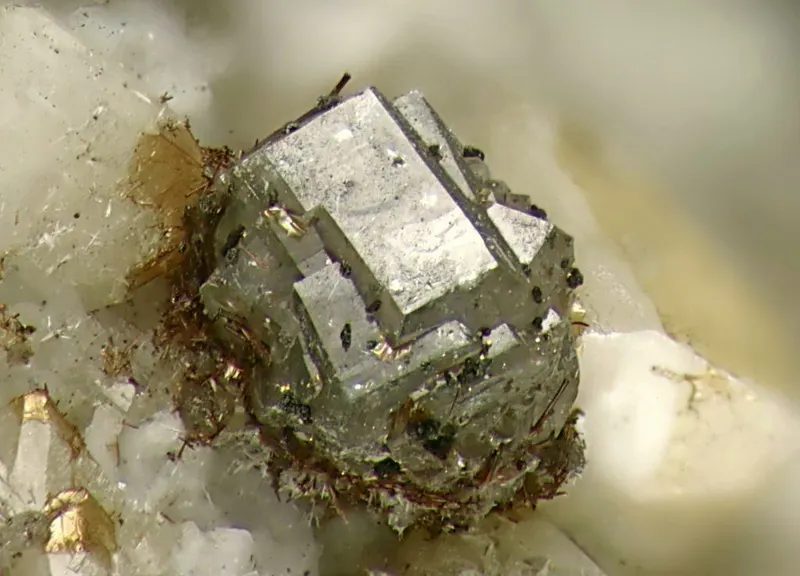

Gaidonnayite

Na2ZrSi3O9 · 2H2O
IMA status
  • Approved
IMA symbol
Gdn
Discovered
1973
IMA approved
1974
Also known as
  • Gaidonnayiet
  • IMA1973-008
  • α-catapleiite

Where it forms, where it's found

Geological setting

In miaroles in nepheline syenite and in sltered pegmatite dykes.

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

25recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · may be pale yellow · pale brown to brown · pale grey · gray green.
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
2.67 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 53 – 59°
Refractive index
1.57 – 1.605
Surface relief
Moderate
Principal indices
nα 1.570 – 1.575 · nβ 1.590 – 1.593 · nγ 1.596 – 1.605
Birefringence
0.035
Pleochroism
Non-pleochroic
Dispersion
r < v strong
Extinction
Parallel. X = a; Y = b; Z = c.
UV response
Bright green SW and LW (Mt. St-Hilaire and Norway)
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#70
Cell parameters
a = 11.740 Å · b = 12.820 Å · c = 6.691 Å
Ratio a:b:c
1 : 1.092 : 0.570
Z
4
Morphology

Equant to slightly elongated crystals with wedge-like forms. (010), (120), (011), (100), (001). Striated || [001].

Twinning

[012] common

Type-locality form

Colourless crystals.

Comment

Non-standard setting P21nb.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1115.999175.989
43.84%
40ZrZirconiumZirconium191.22491.224
22.72%
14SiSiliconSilicon328.08584.255
20.99%
11NaSodiumSodium222.99045.980
11.45%
1HHydrogenHydrogen41.0084.032
1.00%
Total401.480100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Nb
  • Ca
  • K

Synonyms

  • Gaidonnayiet
  • IMA1973-008
  • α-catapleiite

In other languages

German
Gaidonnayit · IMA 1973-008
Italian
Gaidonnayite
Chinese
斜方钠锆石

Classification

Strunz
10th ed.

9.DM.15

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DMInosilicates with 6-periodic single chainsGroup
  • 9.DM.15GaidonnayiteSpecies
Dana
8th ed.

59.02.02.03

  • 59Cyclosilicates Three-membered RingsClass
  • 59.02Three-Membered Rings, hydratedType
  • 59.02.02Catapleiite groupGroup
  • 59.02.02.03GaidonnayiteSpecies
CIM

14.10.7

  • 14Silicates not Containing AluminumClass
  • 14.10Silicates of Zr or HfGroup
  • 14.10.7GaidonnayiteSpecies

Group, growth & confusion

In the same group
1 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1924Gordon, S.G. (1924) Minerals obtained in Greenland on the second Academy-Vaux expedition, 1923. Proceedings of the Academy of Natural sciences of Philadelphia: 76: 249-268 [α-catapleiite, kalithompsonite] (abstracted in Min. Rec. 5, 115-127.)
  2. 1973Chao, G.Y. (1973) The crystal structure of gaidonnayite, orthorhombic Na2ZrSi3O9•2H2O. The Canadian Mineralogist: 12: 143-144. (Abstract)
  3. 1974Chao, George Y., Watkinson, David H. (1974) Gaidonnayite, Na2ZrSi3O9·2H2O, a new mineral from Mont St. Hilaire, Quebec. The Canadian Mineralogist, 12 (5) 316-319
  4. 1978Mandarino, J.A., Sturman, B.D. (1978) The identity of α-catapleiite and gaidonnayite. The Canadian Mineralogist: 16: 195-198.
  5. 1979Khomiakov, A., Semenov, E. (1979) 1st finds of gaidonnayite in the USSR. Doklady Akademii Nauk SSSR, 248(1), 219-222.
