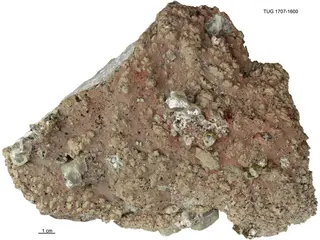

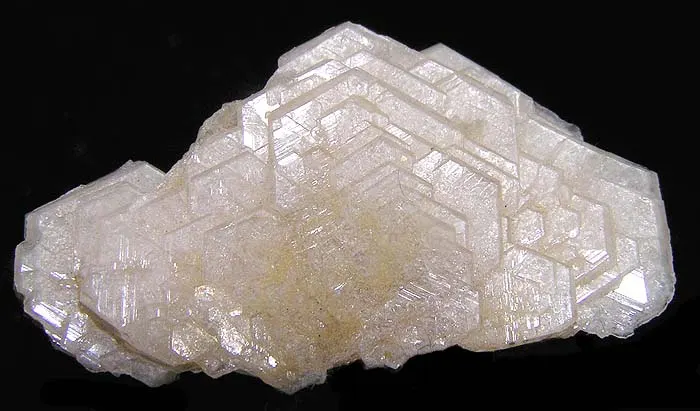

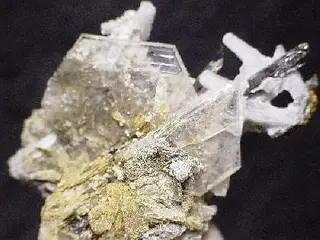

Catapleiite

Na2Zr(Si3O9) · 2H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ctp
Discovered
1850
Also known as
  • Catapleiiet
  • Catapleiit
  • Catapleit
  • +5 more

Where it forms, where it's found

Geological setting

Nepheline syenite pegmatite.

Syenites and nepheline syenites

Type locality
Låven
  1. Larvik Commune
  2. Vestfold
  3. Norway

58.9956°, 9.8175°

114recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Dark brown · reddish brown · flesh red · yellowish red · colourless · light grey · beige to tan · light yellow · orange · light blue
Streak
White to pale yellow
Tenacity
brittle
Cleavage
Perfect

Perfect on (100) Imperfect on (101) (102)

Fracture
Irregular/Uneven
Density
2.65 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 40°
Refractive index
1.591 – 1.627
Surface relief
Moderate
Principal indices
nα 1.591 · nβ 1.592 · nγ 1.627
Dispersion
r < v moderate
Michel-Lévy diagramhighlighted lineδ = 0.0360
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]360 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation360 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 12.799 Å · b = 7.419 Å · c = 20.157 Å
Cell angles
β = 90.41 °
Ratio a:b:c
1 : 0.580 : 1.575
Z
8
Morphology

Pseudohexagonal, rosettes.

Twinning

Polysynthetic at 30, 60, 90 degrees.

Comment

monoclinic, pseudohexagonal I2/c

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1115.999175.989
43.84%
40ZrZirconiumZirconium191.22491.224
22.72%
14SiSiliconSilicon328.08584.255
20.99%
11NaSodiumSodium222.99045.980
11.45%
1HHydrogenHydrogen41.0084.032
1.00%
Total401.480100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ca
  • Fe

Synonyms

  • Catapleiiet
  • Catapleiit
  • Catapleit
  • Catapleita
  • Catapleite
  • Natroncatapleiite
  • Natronkatapleït
  • Soda-Catapleiite

In other languages

German
Catapleiit · Katapleiit
Italian
Catapleiite
Chinese
鈉鋯石
Russian
Катаплеит

Classification

Strunz
10th ed.

9.CA.15

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CA[Si3O9]6- 3-membered single rings (dreier-Einfachringe), without insular complex anionsGroup
  • 9.CA.15CatapleiiteSpecies
Dana
8th ed.

59.02.02.01

  • 59Cyclosilicates Three-membered RingsClass
  • 59.02Three-Membered Rings, hydratedType
  • 59.02.02Catapleiite groupGroup
  • 59.02.02.01CatapleiiteSpecies
CIM

14.10.24

  • 14Silicates not Containing AluminumClass
  • 14.10Silicates of Zr or HfGroup
  • 14.10.24CatapleiiteSpecies

Group, growth & confusion

In the same group
1 members
Often grow together
3 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1850Weibye, P. H., Berlin, N. J., Sjögren, K. A., von Borck, J. B. (1850) Neue Mineralien aus Norwegen beschrieben von P.H. Weibye; analysirt von N.J. Berlin, K.A. Sjögren und J.B. von Borck (Erster Theil) [1.Tritomit, 2. Katapleiit, 3.Atheriasit, 4. Eudnophit.]. [New minerals from Norway described by P.H. Weibye; analyzed by N.J. Berlin, K.A. Sjögren and J.B. von Borck (first part) [1.tritomite, 2. catapleiite, 3. atheriasite, 4. eudnophite.].]. Annalen der Physik und Chemie, 155. 299-304 doi:10.1002/andp.18501550210DOI: 10.1002/andp.18501550210
  2. 1893Flink, Gust. (1893) Om några mineral från Grönland. Geologiska Föreningen i Stockholm Förhandlingar, 15 (4) 195-208 doi:10.1080/11035899309442185DOI: 10.1080/11035899309442185
  3. 1923Foshag, William F. (1923) Catapleiite from Magnet Cove, Arkansas. American Mineralogist, 8 (4). 70-72
  4. 1964Pendlebury, G. B. (1964) Catapleiite from St. Hilaire mountain, Quebec. The Canadian Mineralogist, 8 (1) 120-121
  5. 1973Chao, G.Y., Rowland, J.R., Chen, T.T. (1973) The crystal structure of catapleiite. Geological Society of America Abstracts: 5: 572.
