Ganomalite

Pb9Ca6(Si2O7)4(SiO4)O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Gnm
Discovered
1876
Also known as
  • Ganomaliet
  • Ganomalit

Where it forms, where it's found

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Greyish white
Tenacity
very brittle
Cleavage
Distinct/Good

Distinct : (1010) and (0001)

Fracture
Irregular/Uneven
Density
5.7 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.91 – 1.945
Surface relief
Very high
Principal indices
nω 1.91 · nε 1.945
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#100
Cell parameters
a = 9.8456(3) Å · c = 10.1438(4) Å
Z
1
Type-locality form

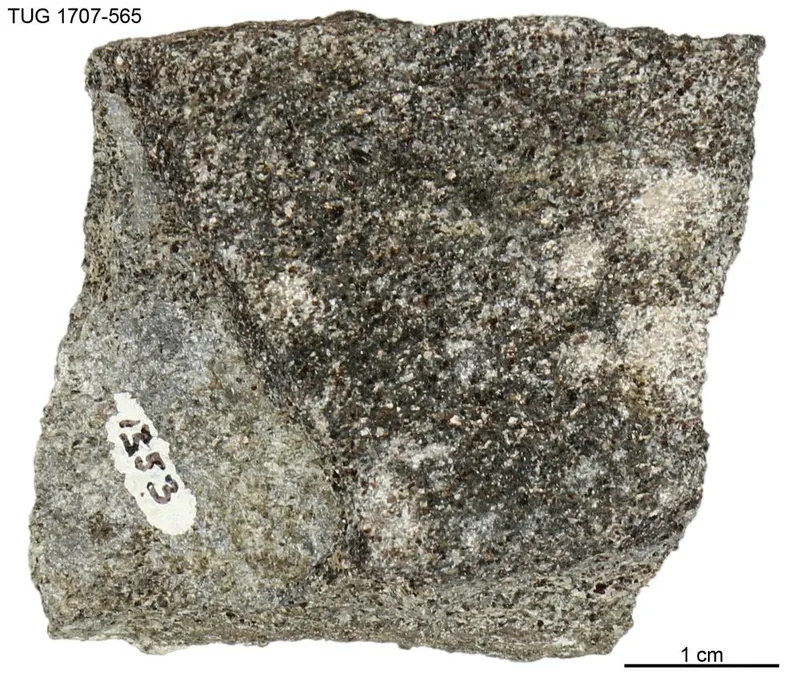

Greyish white masses with a strong lustre.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead9207.2001864.800
64.62%
8OOxygenOxygen3315.999527.967
18.29%
14SiSiliconSilicon928.085252.765
8.76%
20CaCalciumCalcium640.078240.468
8.33%
Total2886.000100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ganomaliet
  • Ganomalit

In other languages

German
Ganomalith
Italian
Ganomalite

Classification

Strunz
10th ed.

9.BG.25

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.25GanomaliteSpecies
Dana
8th ed.

78.02.01.01

  • 78Unclassified SilicatesClass
  • 78.02Unclassified silicates possible sorosilicatesType
  • 78.02.01— unnamed intermediate level —Group
  • 78.02.01.01GanomaliteSpecies
CIM

14.13.6

  • 14Silicates not Containing AluminumClass
  • 14.13Silicates of PbGroup
  • 14.13.6GanomaliteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1876Nordenskiöld, A. E. (1876) Mötet den 6 April 1876. Åtskilliga nya mineralfynd vid Nordmarken och Långban. Geologiska Föreningens i Stockholm Förhandlingar, 3, 119-123.
  2. 1899Penfield, Samuel Lewis; Hyde, Warren Charles (1899) Some New Minerals from the Zinc Mines at Franklin, N. J., and Note Concerning the Chemical Composition of Ganomalite. American Journal Of Science, S. 3 Vol. 8. 339-353
  3. 1969Welin, E. (1969) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden. Arkiv för Mineralogi och Geologi, 4 (6, nr 30). 499-541
  4. 1976SAMANTA, S. C., HUMMEL, F. A. (1976) Phase Equilibria in the System CaO-PbO-SiO2. Journal of the American Ceramic Society, 59 (3). 157-160 doi:10.1111/j.1151-2916.1976.tb09456.xDOI: 10.1111/j.1151-2916.1976.tb09456.x
  5. 1985Dunn, Pete J., Peacor, Donald R., Valley, John W., Randall, Charles A. (1985) Ganomalite from Franklin, New Jersey, and Jakobsberg, Sweden: new chemical and crystallographic data. Mineralogical Magazine, 49 (353). 579-582 doi:10.1180/minmag.1985.049.353.12 DOI: 10.1180/minmag.1985.049.353.12
