Garronite-Na

Na6(Al6Si10O32) · 8.5H2O
IMA status
  • Approved
IMA symbol
Grn-Na
IMA approved
2015
Also known as
  • Garroniet-Na
  • IMA2015-015

Where it forms, where it's found

Geological setting

In vugs in sodalite syenite

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Pale yellow to white
Streak
white
Tenacity
brittle
Cleavage
None Observed
Density
2.19 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 75° · 2V calc = 82°
Refractive index
1.489 – 1.496
Surface relief
Low
Principal indices
nα 1.489 · nβ 1.492 · nγ 1.496
Pleochroism
Not Visible
Dispersion
None observed
UV response
Not fluorescent in either short-wave or long-wave ultraviolet light
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 9.990(2) Å · b = 10.032(2) Å · c = 10.036(2) Å
Cell angles
β = 90.11(3) °
Ratio a:b:c
1 : 1.004 : 1.005
Z
1
Twinning

Probable microscopic twinning

Parting
In the type description, the abstract says good parting (011). The body says no parting.
Type-locality form

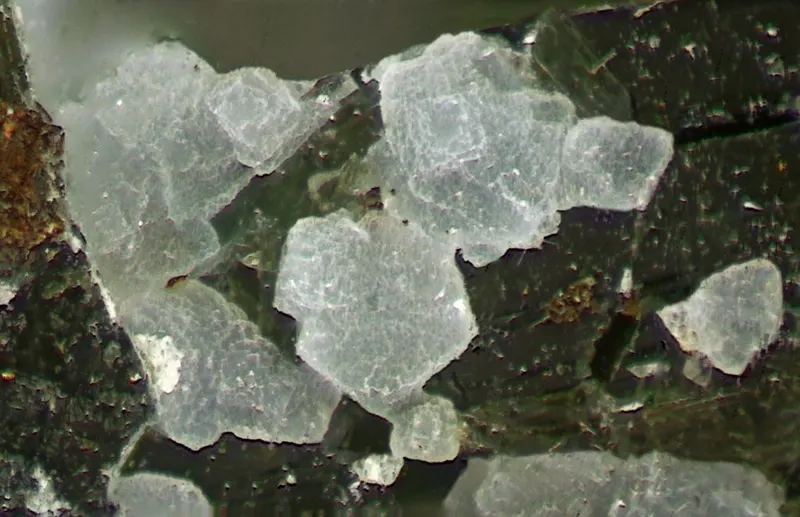

Crystal aggregates are botryoidal masses up to 1.5 mm in size. Also as individual, opaque, white, frosted, crude to sharp pseudo-octahedral crystals up to 2 mm in diameter.

Comment

Space Group: I2.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen40.515.999647.960
52.01%
14SiSiliconSilicon1028.085280.850
22.54%
13AlAluminiumAluminium626.982161.892
13.00%
11NaSodiumSodium622.990137.940
11.07%
1HHydrogenHydrogen171.00817.136
1.38%
Total1245.778100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Garroniet-Na
  • IMA2015-015

In other languages

German
Garronit-Na · IMA 2015-015
Italian
garronite-Na · IMA2015-015

Classification

Strunz
10th ed.

9.GC

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GCChains of doubly-connected 4-membered ringsGroup
  • 9.GCGarronite-NaSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 2016Grice, Joel D., Rowe, Ralph, Poirier, Glenn (2016) Garronite-Na, A New Zeolite Species From Mont Saint-Hilaire, Québec. The Canadian Mineralogist, 54 (6) 1549-1562 doi:10.3749/canmin.1600018 DOI: 10.3749/canmin.1600018
  2. 2018(2018) Garronite-Na. Handbook of Mineralogy. Mineralogical Society of America
  3. 2022Hirahata, Yutaro, Kobayashi, Shoichi, Nishido, Hirotsugu (2022) Silica-Rich Garronite-Na From Hirado Island, Nagasaki Prefecture, Japan. The Canadian Mineralogist, 60 (1) 91-99 doi:10.3749/canmin.2000078DOI: 10.3749/canmin.2000078
