Gormanite

Fe2+3Al4(PO4)4(OH)6 · 2H2O
IMA status
  • Approved
IMA symbol
Gm
Discovered
1977
IMA approved
1977
Also known as
  • Gormaniet
  • IMA1977-030

Where it forms, where it's found

Geological setting

Veins in phosphatic iron stones. Formed at low temperature.

Late stage mineralization in granite pegmatite.

Type locality
Big Fish River
  1. Dawson mining district
  2. Yukon
  3. Canada

68.4738°, -136.4874°

28recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Blue green to dark green
Streak
Pale green
Tenacity
brittle
Cleavage
Poor/Indistinct

(001)

Fracture
Splintery
Density
3.10 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 53° · 2V calc = 48°
Refractive index
1.619 – 1.66
Surface relief
Moderate
Principal indices
nα 1.619 · nβ 1.653 · nγ 1.660
Birefringence
0.041
Pleochroism
Strong

X = colorless; Y = blue, Z = colorless.

Dispersion
r < v strong
Extinction
Z ∧ b = 14°; X ⊥ {001}.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0410
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]410 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation410 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Cell parameters
a = 11.77(1) Å · b = 5.11(1) Å · c = 13.61(1) Å
Cell angles
α = 90.45 ° · β = 99.15 ° · γ = 90.05 °
Ratio a:b:c
1 : 0.434 : 1.156
Z
2
Morphology

Thick acicular crystals, usually in tight divergent groups. Blades, elongated on [010] with large (001). Other forms include (100), (102), (102), and (010).

Twinning

Composition plane (001). Twin axis [010].

Type-locality form

Blue-green elongate crystals (up to 3 x 0.5 x 0.1 mm) in radial aggregates and as blade-like crystals.

Comment

Triclinic, pseudomonoclinic. Point Group: _1 or 1; Space Group: P_1 or P1

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
48.39%
26FeIronIron355.845167.535
21.12%
15PPhosphorusPhosphorus430.974123.896
15.62%
13AlAluminiumAluminium426.982107.928
13.60%
1HHydrogenHydrogen101.00810.080
1.27%
Total793.415100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gormaniet
  • IMA1977-030

In other languages

German
Gormanit · IMA 1977-030
Italian
Gormanite
Chinese
哥磷铁铝石
Arabic
غورمانيت

Classification

Strunz
10th ed.

8.DC.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.45GormaniteSpecies
Dana
8th ed.

42.09.02.02

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.09(AB)7(XO4)4Zq·xH2OType
  • 42.09.02Souzalite GroupGroup
  • 42.09.02.02GormaniteSpecies
CIM

19.14.32

  • 19PhosphatesClass
  • 19.14Phosphates of Fe and other metalsGroup
  • 19.14.32GormaniteSpecies

Group, growth & confusion

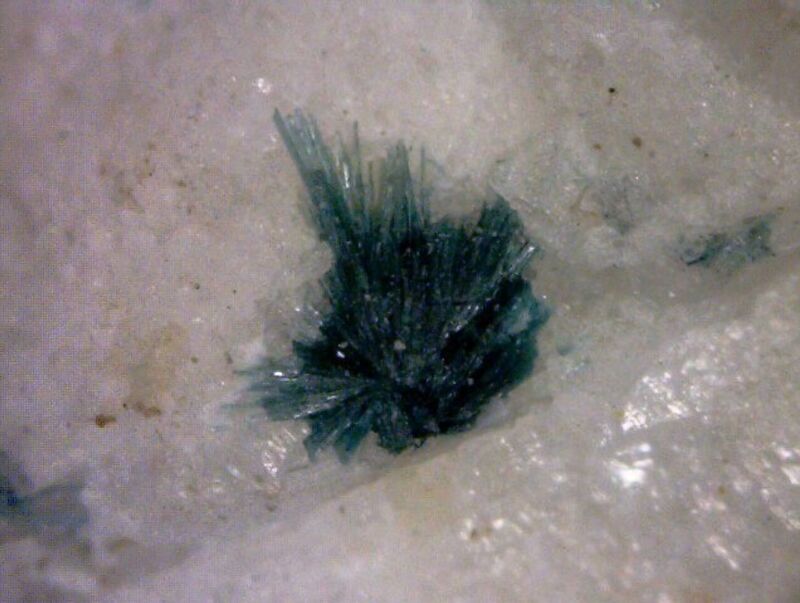

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1981Sturman, B. D., Mandarino, J. A., Mrose, M. E., Dunn, P. J. (1981) Gormanite, Fe2+3Al4(PO4)4(OH)6·2H2O, the ferrous analogue of souzalite, and new data for souzalite. The Canadian Mineralogist, 19 (3) 381-387
  2. 1992Robinson, George W., Van Velthuizen, Jerry, Ansell, H. Gary, Sturman, B. Darko (1992) Mineralogy of the Rapid Creek and Big Fish River Area, Yukon Territory. The Mineralogical Record, 23 (4) 1-47
  3. 2003Chandrasekhar, A.V., Ramanaiah, M.Venkata, Reddy, B.J., Reddy, Y.P., Rao, P.S., Ravikumar, R.V.S.S.N. (2003) Optical and EPR studies of iron bearing phosphate minerals: satterlyite and gormanite from Yukon Territory, Canada. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 59 (9) 2115-2121 doi:10.1016/s1386-1425(03)00017-9DOI: 10.1016/s1386-1425(03)00017-9
  4. 2003Le Bail, Armel, Stephens, Peter W., Hubert, Francis (2003) A crystal structure for the souzalite/gormanite series from synchrotron powder diffraction data. European Journal of Mineralogy, 15 (4) 719-723 doi:10.1127/0935-1221/2003/0015-0719DOI: 10.1127/0935-1221/2003/0015-0719
  5. 2005Frost, Ray L., Erickson, Kristy L. (2005) Near-infrared spectroscopic study of selected hydrated hydroxylated phosphates. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 61 (1) 45-50 doi:10.1016/j.saa.2004.03.010DOI: 10.1016/j.saa.2004.03.010
