Halilsarpite

[Mg(H2O)6][CaAs3+2(Fe3+2.67Mo6+0.33)(AsO4)2O7]
IMA status
  • Approved
IMA symbol
Hsp
IMA approved
2019
Also known as
  • Halilsarpiet
  • IMA2019-023

Where it forms, where it's found

Type locality
Oumlil Mine (incl. Oumlil East Mine)
  1. Oumlil
  2. Tansifte Caïdat
  3. Agdz Cercle
  4. Zagora Province
  5. Drâa-Tafilalet Region
  6. Morocco

30.5229°, -6.7851°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Colour
Lemon-yellow
Tenacity
brittle
Cleavage
Perfect

(100)

Density
2.89 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 62°
Refractive index
1.646 – 1.815
Surface relief
High
Principal indices
nα 1.646 · nβ 1.765 · nγ 1.815
Pleochroism
Visible

Shades of yellow, with X<Y≈Z

Dispersion
weak, r<v
Notes

Optical orientation could only be partially determined as X=a

Michel-Lévy diagramhighlighted lineδ = 0.1690
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1690 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1690 nm
Order4th order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Imma
Cell parameters
a = 26.489(1) Å · b = 7.4205(3) Å · c = 10.4378(4) Å
Ratio a:b:c
1 : 0.280 : 0.394
Morphology

Platelets in the plane (100)

Type-locality form

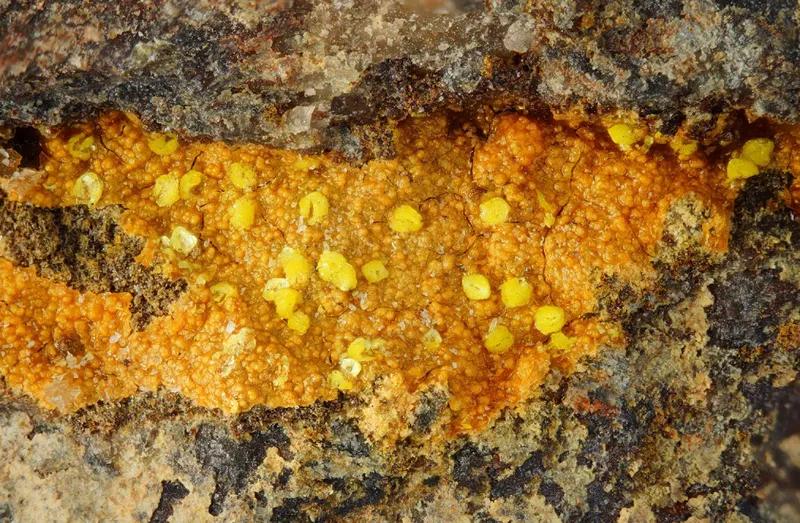

Lemon-yellow spherules, about 0.1 mm in diameter

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2115.999335.979
37.63%
33AsArsenicArsenic474.922299.688
33.56%
26FeIronIron2.6755.845149.106
16.70%
20CaCalciumCalcium140.07840.078
4.49%
42MoMolybdenumMolybdenum0.3395.95031.664
3.55%
12MgMagnesiumMagnesium124.30524.305
2.72%
1HHydrogenHydrogen121.00812.096
1.35%
Total892.916100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Halilsarpiet
  • IMA2019-023

In other languages

German
Halilsarpit · IMA 2019-023

Classification

Strunz
10th ed.

8.CH.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CHWith large and medium-sized cations, RO4:H2O < 1:1Group
  • 8.CH.05HalilsarpiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2019Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2019) CNMNC Newsletter No 50, New minerals and nomenclature modifications approved in 2019. Mineralogical Magazine, 83 (4) 615-620 doi:10.1180/mgm.2019.46DOI: 10.1180/mgm.2019.46
  2. 2020Husdal, Tomas, Grey, Ian E., Friis, Henrik, Dal Bo, Fabrice, Kampf, Anthony R., MacRae, Colin M., Mumme, W. Gus, Ljøstad, Ole-Thorstein, Shanks, Finlay (2020) Halilsarpite, a new arsenate analogue of walentaite, from the Oumlil mine, Bou Azzer district, Morocco. European Journal of Mineralogy, 32 (1) 89-98 doi:10.5194/ejm-32-89-2020 DOI: 10.5194/ejm-32-89-2020
