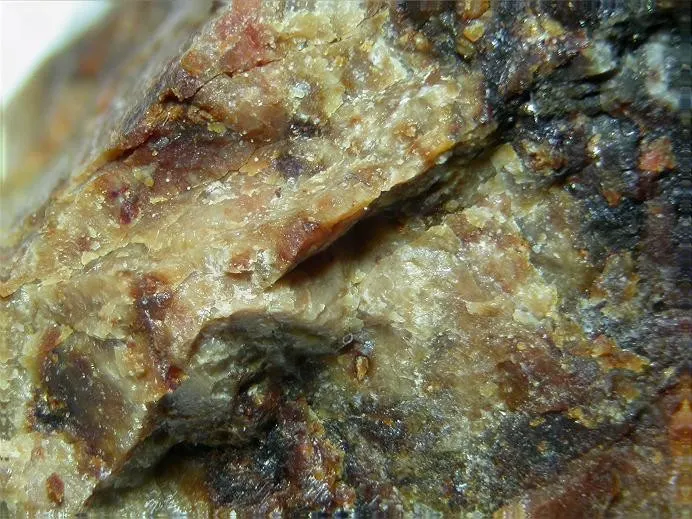

Hellandite-(Y)

(Ca,REE)4Y2Al◻2(B4Si4O22)(OH)2
IMA status
  • Approved
IMA symbol
Hld-Y
Also known as
  • Hellandiet-(Y)
  • IMA2000-F

Where it forms, where it's found

Type locality
Lindvikskollen Quarry
  1. Lindvikskollen-Kalstadgangen pegmatite
  2. Kragerø
  3. Telemark
  4. Norway

58.8655°, 9.3728°

16recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Greasy
Transparency
Translucent
Colour
Nut-brown · brownish red · black · gray · green · yellow · cream · pinkish
Cleavage
Poor/Indistinct

Poor on (100), (010).

Density
2.95 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 48 – 86° · 2V calc = 88°
Refractive index
1.64 – 1.66
Surface relief
High
Principal indices
nα 1.64 · nβ 1.65 · nγ 1.66
Dispersion
relatively weak
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P2/a
Cell parameters
a = 18.99(1) Å · b = 7.715(5) Å · c = 10.30(1) Å
Cell angles
β = 111.4(1) °
Ratio a:b:c
1 : 0.406 : 0.542
Z
2
Twinning

Contact and polysynthetic, parallel to (001) and (100).

Crystal structure

Synonyms

  • Hellandiet-(Y)
  • IMA2000-F

In other languages

German
Hellandit-(Y)
Italian
Hellandite- · Hellandite-(Y)
Chinese
硼硅钇钙石

Classification

Strunz
10th ed.

9.DK.20

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.20Hellandite-(Y)Species
Dana
8th ed.

54.02.02.01

  • 54Nesosilicates Borosilicates and Some BeryllosilicatesClass
  • 54.02Borosilicates and Some Beryllosilicates with B in [4] coordinationType
  • 54.02.02Hellandite groupGroup
  • 54.02.02.01Hellandite-(Y)Species
CIM

17.5.51

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.51Hellandite-(Y)Species

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1903Brøgger, W. C. (1903) Über den Hellandit, ein neues Mineral (Vorlaüfige Mittheilung) [On Hellandite, a new mineral (Preliminary report)]. Nyt magazin for naturvidenskaberne [New magazine for the natural sciences], 41. 213-221
  2. 1907Brögger, W. C. (1907) Hellandit von Lindvikskollen bei Kragerö, Norwegen. Zeitschrift für Kristallographie und Mineralogie, 42 (1-6). 417-439 doi:10.1524/zkri.1907.42.1.417DOI: 10.1524/zkri.1907.42.1.417
  3. 1964Oftedal, Ivar (1964) Contributions to the mineralogy of Norway. No. 24. On the chemical composition of Hellandite. Norsk Geologisk Tidsskrift [Norwegian Journal of Geology], 44 (1). 35-37
  4. 1965Oftedal, Ivar (1965) Über den Hellandit [About Hellandite]. Tschermaks Mineralogische und Petrographische Mitteilungen, 10 (1). 125-129 doi:10.1007/bf01128621DOI: 10.1007/bf01128621
  5. 1972Hogarth, D. D., Chao, G. Y., Harris, D. C. (1972) New data on hellandite. The Canadian Mineralogist, 11 (4) 760-776
