Mottanaite-(Ce)

Ca4Ce2Al(Be1.50.5)E2[B4Si4O22]O2
IMA status
  • Approved
IMA symbol
Mot-Ce
IMA approved
2001
Also known as
  • IMA2001-020
  • Mottanaiet-(Ce)

Where it forms, where it's found

Geological setting

In miarolitic cavities in alkali-syenitic ejecta enclosed in pyroclastic formations.

Type locality
Monte Cavalluccio
  1. Campagnano di Roma
  2. Metropolitan City of Rome Capital
  3. Lazio
  4. Italy

42.1365°, 12.4200°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Lustre
vitreous
Transparency
Transparent · Translucent
Colour
Brown
Streak
White
Tenacity
brittle
Cleavage
None Observed

None

Fracture
Conchoidal
Density
3.61 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = ~90°
Refractive index
1.68 – 1.708
Surface relief
High
Principal indices
nα 1.68 · nβ 1.694 · nγ 1.708
Dispersion
r > v, strong.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0280
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]280 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation280 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 19.032(9) Å · b = 4.746(4) Å · c = 10.248(5) Å
Cell angles
β = 110.97(5) °
Ratio a:b:c
1 : 0.249 : 0.538
Unit cell volume
864.3 ų
Z
2
Morphology

Tabular on (010).

Type-locality form

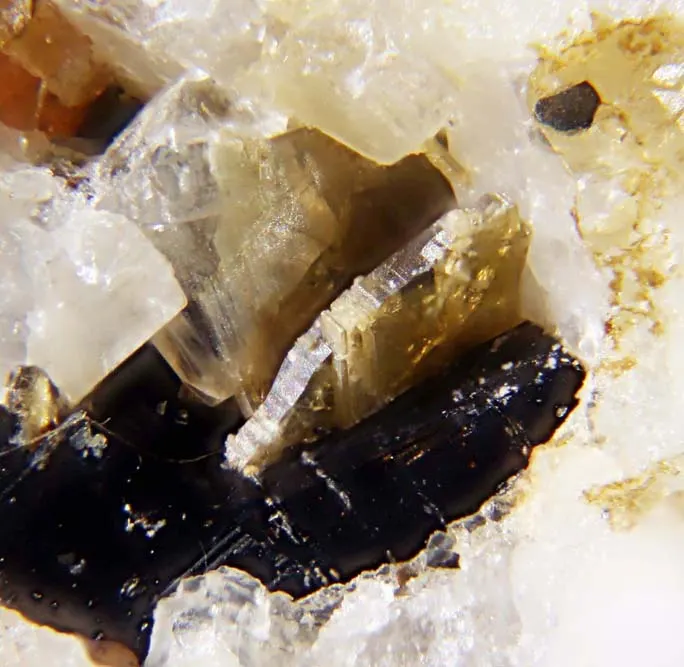

Small (<0.5 mm), brown, tabular crystals.

Comment

Space group P2/a.

Crystal structure

Synonyms

  • IMA2001-020
  • Mottanaiet-(Ce)

In other languages

German
IMA 2001-020 · Mottanait-(Ce)
Italian
Mottanaite- · Mottanaite-(Ce)

Classification

Strunz
10th ed.

9.DK.20

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.20Mottanaite-(Ce)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2002Ventura, Giancarlo Della, Bonazzi, Paola, Oberti, Roberta, Ottolini, Luisa (2002) Ciprianiite and mottanaite-(Ce), two new minerals of the hellandite group from Latium (Italy) American Mineralogist, 87 (5) 739-744 doi:10.2138/am-2002-5-617 DOI: 10.2138/am-2002-5-617
  2. 2002Oberti, Roberta, Ventura, Giancarlo Della, Ottolini, Luisa, Hawthorne, Frank C., Bonazzi, Paola (2002) Re-definition, nomenclature and crystal-chemistry of the hellandite group. American Mineralogist, 87 (5) 745-752 doi:10.2138/am-2002-5-618DOI: 10.2138/am-2002-5-618
  3. 2019Oberti, Roberta, Langone, Antonio, Boiocchi, Massimo, Bernabè, Ezio, Hawthorne, Frank C. (2019) News from the hellandite group: the redefinition of mottanaite and ciprianiite and the new mineral description of ferri-mottanaite-(Ce), the first Fe3+-dominant hellandite. European Journal of Mineralogy, 31 (4) 799-806 doi:10.1127/ejm/2019/0031-2858DOI: 10.1127/ejm/2019/0031-2858
  4. 2021(2021) Mottanaite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
  5. 2021Perna, Maria; Zaccaria, Daria; Rosatelli, Gianluigi; Stoppani, Francesco; Curti, Ezio; Spratt, John; Humphreys-Williams, Emma; Najorka, Jens; Brownscombe, Will; Nestola, Fabrizio; et al. (2021) Dissolution-Repackaging of Hellandite-(Ce), Mottanaite-(Ce)/Ferri-Mottanaite-(Ce). Minerals, 11 (6). 610 doi:10.3390/min11060610 DOI: 10.3390/min11060610
