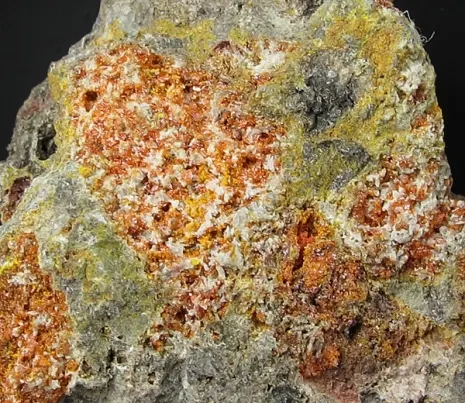

Hemihedrite

ZnPb10(CrO4)6(SiO4)2(OH)2
IMA status
  • Approved
IMA symbol
Hhe
IMA approved
1967
Also known as
  • Hemihedriet
  • IMA1967-011

Where it forms, where it's found

Geological setting

Oxidized zone of lead-bearing veins that cut strongly brecciated Precambrian limestone intruded by an altered latite porphyry and Precambrian quartzite containing a diabase dike.

Type locality
Florence Mine (Florence Lead Silver Mine)
  1. Ripsey Hill area
  2. Ripsey Mining District
  3. Tortilla Mountains
  4. Pinal County
  5. Arizona
  6. USA

33.0069°, -110.9575°

11recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Bright orange to henna-brown to nearly black (TL).
Streak
Saffron yellow (Munsell 5Y 8/10)
Density
6.42 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 92° · 2V calc = 88°
Refractive index
2.105 – 2.65
Surface relief
Very high
Principal indices
nα 2.105 · nβ 2.32 · nγ 2.65
Pleochroism
Weak

yellow to orange

Dispersion
strong
Michel-Lévy diagramhighlighted lineδ = 0.5450
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]5450 nmhigh order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation5450 nm
Orderhigh order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 9.497(1) Å · b = 11.443(2) Å · c = 10.841(2) Å
Cell angles
α = 120.5 ° · β = 92.1 ° · γ = 55.83 °
Ratio a:b:c
1 : 1.205 : 1.142
Z
1
Morphology

Complex with many observed forms. Hemihedral.

Twinning

Twins on (0_12), (0_10), (2_23).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead10207.2002072.000
67.90%
8OOxygenOxygen3415.999543.966
17.83%
24CrChromiumChromium651.996311.976
10.22%
30ZnZincZinc165.38065.380
2.14%
14SiSiliconSilicon228.08556.170
1.84%
1HHydrogenHydrogen21.0082.016
0.07%
Total3051.508100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Hemihedriet
  • IMA1967-011

In other languages

German
Hemihedrit · IMA 1967-011
Italian
Emiedrite · Hemihedrite

Classification

Strunz
10th ed.

7.FC.15

  • 7SulfatesClass
  • 7.FChromatesDivision
  • 7.FCWith PO4, AsO4, SiO4Group
  • 7.FC.15HemihedriteSpecies
Dana
8th ed.

36.01.01.02

  • 36Compound ChromatesClass
  • 36.01MiscellaneousType
  • 36.01.01— unnamed intermediate level —Group
  • 36.01.01.02HemihedriteSpecies
CIM

27.2.9

  • 27Sulphites, Chromates, Molybdates and TungstatesClass
  • 27.2ChromatesGroup
  • 27.2.9HemihedriteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1967Williams, S.A., Anthony, J.W. (1967) Abstract of paper presented at the twelfth annual meeting: Hemihedrite. A new mineral from Arizona. The Canadian Mineralogist: 9: 310-310.
  2. 1968Mandarino, J.A.; Kato, A. (1968) New Mineral Names. American Mineralogist, 53 (7-8). 1421-1427
  3. 1970Williams, Sidney A., Anthony, John W. (1970) Hemihedrite, a new mineral from Arizona. American Mineralogist, 55 (7-8) 1088-1102
  4. 1970McLean, W. John, Anthony, John W. (1970) The crystal structure of hemihedrite. American Mineralogist, 55 (7-8) 1103-1114
  5. 1973Fleischer, Michael (1973) New mineral names. American Mineralogist, 58 (5-6). 560-562
