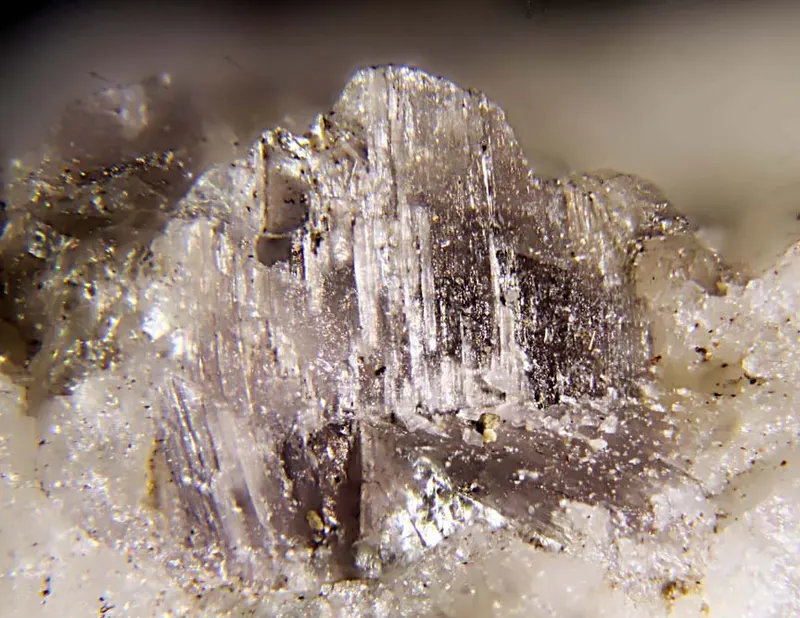

Holtite

(Ta0.60.4)Al6BSi3O18
IMA status
  • Approved
IMA symbol
Hlt
Discovered
1971
Also known as
  • Holtiet
  • IMA1969-029

Where it forms, where it's found

Geological setting

Alluvial pebbles.

Pegmatites

Type locality
Greenbushes Sn placers
  1. Greenbushes Mine
  2. Bridgetown-Greenbushes Shire
  3. Western Australia
  4. Australia

-33.8543°, 116.0610°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789108.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Light buff to cream-buff · deep olive-buff · brown · russet
Streak
Light buff
Cleavage
Distinct/Good

Good on (001), may be parting

Density
3.60 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 20 – 55° · 2V calc = 32 – 42°
Refractive index
1.705 – 1.761
Surface relief
High
Principal indices
nα 1.705 – 1.746 · nβ 1.728 – 1.759 · nγ 1.73 – 1.761
Pleochroism
Visible

Various shades of yellow to colorless

Dispersion
r < v
Extinction
X = a.
UV response
Dull orange (SW UV) and bright yellow (LW UV).
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pnma
Cell parameters
a = 4.6914(5) Å · b = 11.896(2) Å · c = 20.383(4) Å
Ratio a:b:c
1 : 2.536 : 4.345
Z
4
Morphology

Blocky crystals, pseudohexagonal needles

Twinning

Multiple on (011)

Type-locality form

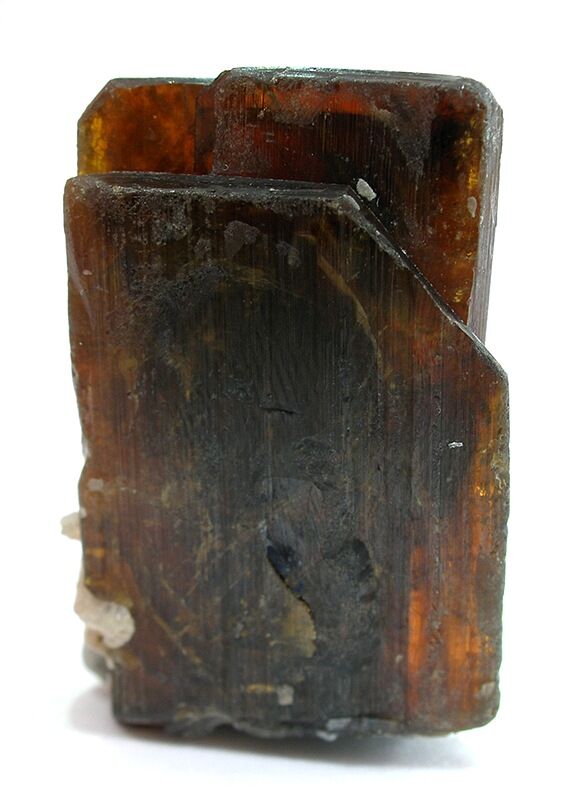

Intergrown prisms and acicular coatings on stibiotantalite and as parallel acicular to asbestiform replacements of tantalite. Also as hard resinous pebbles composed of parallel needles often with S-shaped contortions. Crystals to 1 mm in length.

Crystal structure

Chemical composition

Impurities
  • Ti
  • Fe
  • As
  • Nb
  • Mn
  • Be
  • Mg
  • Ca
  • Li
  • Na
  • K
  • Rb
  • Cs

Synonyms

  • Holtiet
  • IMA1969-029

In other languages

German
Holtit · IMA 1969-029
Italian
holtite
Chinese
锑线石

Classification

Strunz
10th ed.

9.AJ.10

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AJNesosilicates with BO3 triangles and/or B[4], Be[4] tetrahedra, cornersharing with SiO4Group
  • 9.AJ.10HoltiteSpecies
Dana
8th ed.

54.01.03.01

  • 54Nesosilicates Borosilicates and Some BeryllosilicatesClass
  • 54.01Borosilicates and Some Beryllosilicates with (BO3)Type
  • 54.01.03— unnamed intermediate level —Group
  • 54.01.03.01HoltiteSpecies
CIM

17.5.26

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.26HoltiteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1971Pryce, M. W. (1971) Holtite: a new mineral allied to dumortierite. Mineralogical Magazine, 38 (293) 21-25 doi:10.1180/minmag.1971.038.293.02 DOI: 10.1180/minmag.1971.038.293.02
  2. 1972(1972) American Mineralogist 57, 1556 (abstract).
  3. 1977Voloshin, A.V., V.V. Gordienko, E.M. Gel'man, M.L. Zorina, N.A. Elina, E.A. Kul'chitskaya, Y.P. Men'shikov, L.I. Polezhaeva, R.I. Ryzhova, P.B. Sokolov, and G.I. Utochkina (1977) Holtite (first find in the USSR) and its interaction with other tantalum minerals in rare metal pegmatites. Zap. Vses. Mineral. Obshch., 106, 337-347 (in Russian).
  4. 1989Hoskins, B. F., Mumme, W. G., Pryce, M. W. (1989) Holtite, (Si2.25Sb0.75)B [Al6(Al0.43Ta0.270.30) O15 (O,OH)2.25]: crystal structure and crystal chemistry. Mineralogical Magazine, 53 (372) 457-463 doi:10.1180/minmag.1989.053.372.05 DOI: 10.1180/minmag.1989.053.372.05
  5. 1990Jambor, John L., Grew, Edward S. (1990) New Mineral Names. American Mineralogist, 75 (7-8) 931-937
