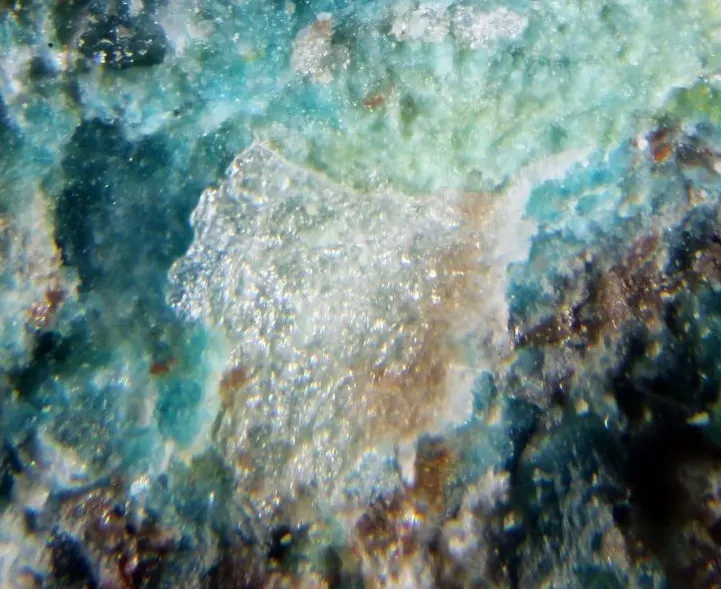

Hyalotekite

(Ba,Pb,K)4(Ca,Y)2(B,Be)2(Si,B)2Si8O28F
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hya
Discovered
1877
Also known as
  • Hyalotekiet
  • Hyalotekita

Where it forms, where it's found

Geological setting

High temperature manganese skarns

peralkaline pegmatites

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
White to pearly gray
Tenacity
brittle
Cleavage
Distinct/Good

easy in two directions, indistinct in third direction

Density
3.81 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 57 – 60.5° · 2V calc = 55.4 – 62.5°
Refractive index
1.963 – 1.966
Surface relief
Very high
Principal indices
nα 1.963 · nβ 1.963 · nγ 1.966
Dispersion
strong r < v
Extinction
undulatory extinction characteristic of hyalotekite is due to a fine mosaic microstructure.
UV response
blue, light brownish orange, or yellowish in SW UV cathodoluminescence - bright yellow or blue
Michel-Lévy diagramhighlighted lineδ = 0.0030
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]30 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation30 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 11.310(2) Å · b = 10.955(2) Å · c = 10.317(3) Å
Cell angles
α = 90.43(2) ° · β = 90.02 ° · γ = 90.16 °
Ratio a:b:c
1 : 0.969 : 0.912
Z
2
Morphology

Coarsely crystalline, massive

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead4207.200828.800
31.86%
56BaBariumBarium4137.327549.308
21.11%
8OOxygenOxygen2815.999447.972
17.22%
14SiSiliconSilicon1028.085280.850
10.80%
39YYttriumYttrium288.906177.812
6.84%
19KPotassiumPotassium439.098156.392
6.01%
20CaCalciumCalcium240.07880.156
3.08%
5BBoronBoron410.81043.240
1.66%
9FFluorineFluorine118.99818.998
0.73%
4BeBerylliumBeryllium29.01218.024
0.69%
Total2601.552100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mn
  • Cu
  • Mg
  • Sr
  • Na
  • Rb

Synonyms

  • Hyalotekiet
  • Hyalotekita

In other languages

German
Hyalotekit
Italian
Hyalotekite

Classification

Strunz
10th ed.

9.CH.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CH[Si4O12]8- 4-membered double ringsGroup
  • 9.CH.05HyalotekiteSpecies
Dana
8th ed.

78.06.01.01

  • 78Unclassified SilicatesClass
  • 78.06Unclassified silicates possible tectosilicatesType
  • 78.06.01— unnamed intermediate level —Group
  • 78.06.01.01HyalotekiteSpecies
CIM

17.5.50

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.50HyalotekiteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1982Moore, P.B., Araki, T., Ghose, S. (1982) Hyalotekite, a complex lead borosilicate: its crystal structure and the lone-pair effect of Pb(II). American Mineralogist: 67: 1012-1020.
  2. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  3. 1998Christy, A. G., Grew, E. S., Mayo, S. C., Yates, M. G., Belakovskiy, D. I. (1998) Hyalotekite, (Ba,Pb,K)4(Ca,Y)2Si8(B,Be)2(Si,B)2O28F, a tectosilicate related to scapolite: new structure refinement, phase transitions and a short-range ordered 3b superstructure. Mineralogical Magazine, 62 (1) 77-92 doi:10.1180/002646198547486 DOI: 10.1180/002646198547486
  4. 2000Sokolova, E.V., Ferraris, G., Ivaldi, G., Pautov, L.A., Khvorov, P.V. (2000) Crystal structure of kapitsaite-(Y), a new borosilicate isotypic with hyalotekite - Crystal chemistry of the related isomorphous series. Neues Jahrbuch für Mineralogie, Monatshefte: 2000: 74-84.
  5. 2001(2001) Hyalotekite. Handbook of Mineralogy. Mineralogical Society of America
