Imogolite

Al2SiO3(OH)4
IMA status
  • Approved
IMA symbol
Imo
Discovered
1962
Also known as
  • Imogoliet
  • Imogolit

Where it forms, where it's found

Geological setting

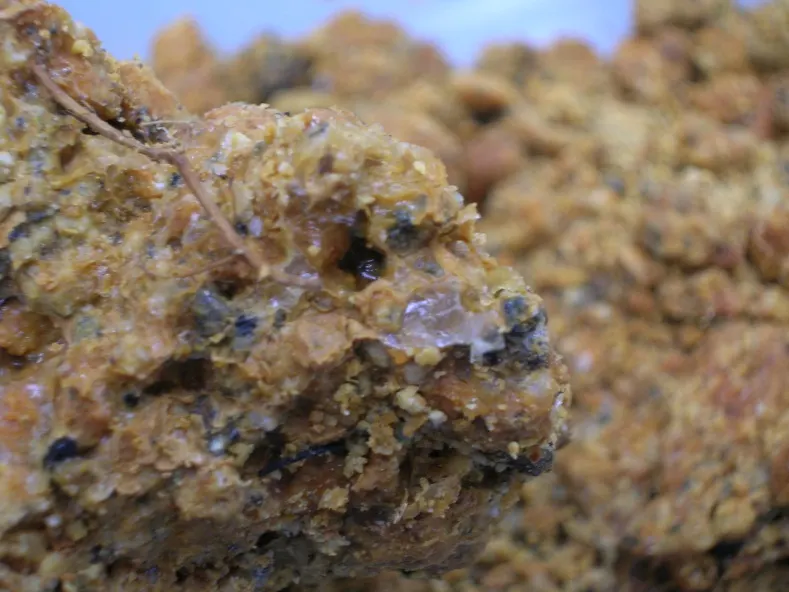

Decomposition product of volcanic ash in soils in humid environments.

Type locality
Uemura
  1. Kumamoto Prefecture
  2. Japan
5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · blue · green · brown · black
Tenacity
brittle
Fracture
Conchoidal
Density
2.70 g/cm³

Optical

Optical type
Isotropic
Surface relief
Low
Principal indices
n 1.47 – 1.51
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation
Single index
n = 1.490

Crystallography

Cell parameters
c = 8.4 Å
Morphology

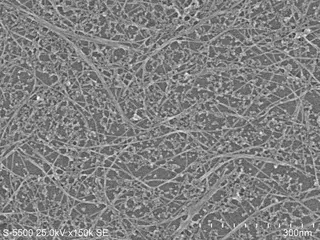

Conchoidal to earthy; as microscopic threadlike particles, and bundles of fine tubes, each about 20Å in diameter

Comment

5.1 perpendicular to c axis

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen715.999111.993
56.54%
13AlAluminiumAluminium226.98253.964
27.24%
14SiSiliconSilicon128.08528.085
14.18%
1HHydrogenHydrogen41.0084.032
2.04%
Total198.074100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Imogoliet
  • Imogolit

In other languages

French
Imogolite
German
Imogolith
Spanish
Imogolita
Italian
Imogolite
Portuguese
Imogolite
Japanese
芋子石

Classification

Strunz
10th ed.

9.ED.20

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EDPhyllosilicates with kaolinite layers composed of tetrahedral and octahedral netsGroup
  • 9.ED.20ImogoliteSpecies
Dana
8th ed.

71.01.05.03

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.01Sheets of 6-membered rings with 1:1 layersType
  • 71.01.05— unnamed intermediate level —Group
  • 71.01.05.03ImogoliteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1962Yoshinaga, N., Aomine, S. (1962) Imogolite in some Ando soils. Soil Science and Plant Nutrition: 8: 114-121.
  2. 1963Fleischer, Michael (1963) New Mineral Names. American Mineralogist, 48 (3-4) 433-436
  3. 1965Aomine, S., Miyaushi, N. (1965) Imogolite of imogo-layers in Kyushu. Soil Science and Plant Nutrition: 11(5): 28-35.
  4. 1969Wada, Keji, Yoshinaga, Naganori (1969) The structure of "imogolite". American Mineralogist, 54 (1-2) 50-71
  5. 1969Russell, J.D., McHardy, W.J., Fraser, A.R. (1969) Imogolite: a unique aluminosilicate. Clay Minerals: 8(1): 87-99.
