Inesite

Ca2Mn2+7Si10O28(OH)2 · 5H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ins
Discovered
1887
Also known as
  • Agnolit
  • Agnolita
  • Agnolite
  • +8 more

Where it forms, where it's found

Geological setting

Late stage hydrothermal mineral in manganese deposits.

Type locality
Hilfe Gottes Mine
  1. Nanzenbach
  2. Dillenburg
  3. Lahn-Dill-Kreis
  4. Giessen Region
  5. Hesse
  6. Germany

50.7603°, 8.3725°

55recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Rose-red · pink · orange-pink · orange-red-brown

Weathers to ginger brown

Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (010) Good on (100)

Fracture
Irregular/Uneven
Density
3.03 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 60° · 2V calc = 56°
Refractive index
1.609 – 1.644
Surface relief
Moderate
Principal indices
nα 1.609 · nβ 1.636 · nγ 1.644
Dispersion
r > v distinct
Extinction
X ∧ c = 74°; Y ∧ c = 32°; Z ∧ c = 62°.
Michel-Lévy diagramhighlighted lineδ = 0.0350
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]350 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation350 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 8.889(2) Å · b = 9.247(2) Å · c = 11.975(3) Å
Cell angles
α = 91.8 ° · β = 132.58 ° · γ = 94.37 °
Ratio a:b:c
1 : 1.040 : 1.347
Z
1
Morphology

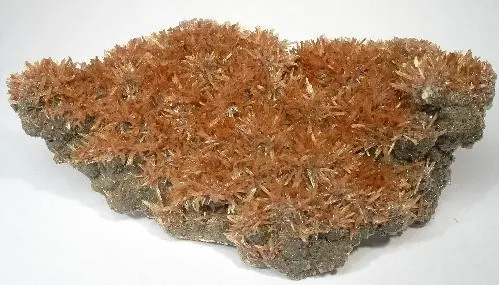

Slender laths, chisel shaped, fan shaped clusters, fiberous, massive. Known forms include c(001), b(010), a(100), f(210), m(110), M1_10}, d(011), g(201), j(301), h(311), e(101), l(101), n(301), o(532), i(747), s(946).

Type-locality form

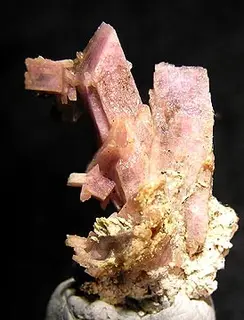

Radial aggregates of pink-red crystals up to 2 cm long by 1.5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3515.999559.965
42.50%
25MnManganeseManganese754.938384.566
29.19%
14SiSiliconSilicon1028.085280.850
21.31%
20CaCalciumCalcium240.07880.156
6.08%
1HHydrogenHydrogen121.00812.096
0.92%
Total1317.633100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Al
  • Mg
  • K

Synonyms

  • Agnolit
  • Agnolita
  • Agnolite
  • Agnolith
  • Angolit
  • Angolita
  • Angolite
  • Inesiet
  • Rhodotilit
  • Rhodotilita
  • Rhodotilite

In other languages

French
inésite · rhodotilite
German
Angolit · Inesit
Spanish
Inesita
Italian
Inesite
Russian
инезит

Classification

Strunz
10th ed.

9.DL.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DLInosilicates with 5-periodic double chains, Si10O28Group
  • 9.DL.05InesiteSpecies
Dana
8th ed.

66.03.03.01

  • 66Inosilicates Double-width, Unbranched Chains, (w=2)Class
  • 66.03Amphiboles - Ca-Na subgroupType
  • 66.03.03P=5Group
  • 66.03.03.01InesiteSpecies
CIM

14.18.21

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.21InesiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1887Schneider, A. (1887) Verhandlungen der Gesellschaft. Protokoll der November - Sitzung. Über neue manganerze aus dem Dillenburgischen. Zeitschrift der Deutschen Geologischen Gesellschaft, 39. 829-855
  2. 1900Farrington, O.C. (1900) New mineral occurrences. Field Columbian Mus. Pub. 44, Geological Series l, 7, 221-231.
  3. 1930Kato, T. (1930) Inesite a Characteristic Gangue Mineral of the Tertiary Gold-silver Veins found in the Province of Idzu. The Journal of the Geological Society of Japan: 37(436): 35-38.
  4. 1939Glass, Jewell J., Schaller, Waldemar T. (1939) Inesite. American Mineralogist, 24 (1) 26-39
  5. 1941Hutton, C.O. (1941) Inesite from Waihi mine, North Island, New Zealand. Royal Society of New Zealand.
