Jagoite

Pb18Fe3+4[Si4(Si,Fe3+)6][Pb4Si16(Si,Fe)4]O82Cl6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Jg
Discovered
1957
Also known as
  • Jagoiet

Where it forms, where it's found

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow-green
Streak
Yellow
Tenacity
flexible
Cleavage
Perfect

(0001)

Fracture
Micaceous
Density
5.43 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.97 – 2
Surface relief
Very high
Principal indices
nω 2 · nε 1.97
Birefringence
0.025
Pleochroism
Non-pleochroic
UV response
Not fluorescent in UV.
Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#111
Cell parameters
a = 8.53926(5) Å · c = 33.3399(2) Å
Z
6
Morphology

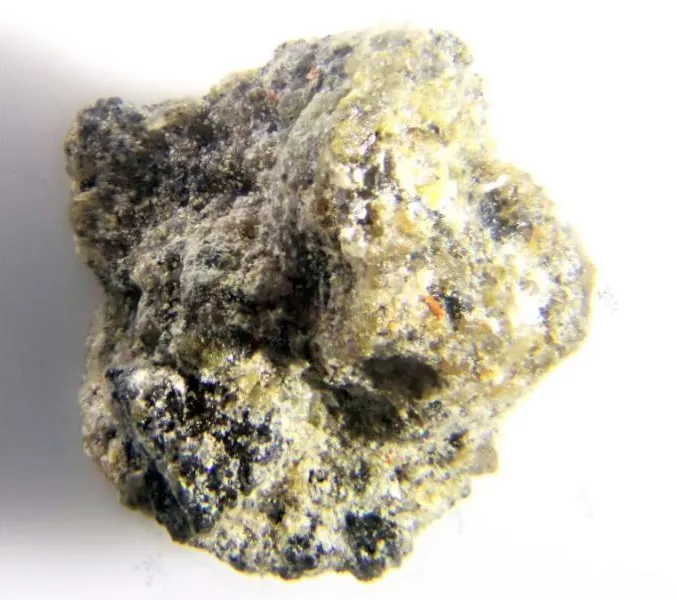

Fine-grained micaceous aggregates.

Type-locality form

Fine-grained micaceous aggregatesof plates, commonly surrounded by a zone of black melanotekite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead22207.2004558.400
59.14%
8OOxygenOxygen8215.9991311.918
17.02%
14SiSiliconSilicon3028.085842.550
10.93%
26FeIronIron1455.845781.830
10.15%
17ClChlorineChlorine635.450212.700
2.76%
Total7707.398100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mn
  • Be
  • Mg
  • Ca
  • Na
  • K
  • H2O

Synonyms

  • Jagoiet

In other languages

German
Jagoit
Italian
Jagoite

Classification

Strunz
10th ed.

9.EG.50

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EGDouble nets with 6-membered and larger ringsGroup
  • 9.EG.50JagoiteSpecies
Dana
8th ed.

73.02.01.01

  • 73Phyllosilicates Condensed Tetrahedral SheetsClass
  • 73.02Condensed Tetrahedral Sheets with double and single layersType
  • 73.02.01— unnamed intermediate level —Group
  • 73.02.01.01JagoiteSpecies
CIM

17.3.10

  • 17Silicates Containing other AnionsClass
  • 17.3Silicates with chloride (including aluminosilicates)Group
  • 17.3.10JagoiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1958Fleischer, M. (1958) New Mineral Names. American Mineralogist, 43 (3-4). 378-387
  2. 1958Blix, Ragnar, Gabrielson, Olof, Wickman, Frans E. (1958) Jagoite, a new lead-silicate mineral from Långban in Sweden. Arkiv för Mineralogi och Geologi, 2 (4). 315-317
  3. 1969Welin, E. (1969) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden. Arkiv för Mineralogi och Geologi, 4 (6, nr 30). 499-541
  4. 1981Mellini, Marcello, Merlino, Stefano (1981) The crystal structure of jagoite. American Mineralogist, 66 (7-8) 852-858
  5. 2001(2001) Jagoite. Handbook of Mineralogy. Mineralogical Society of America
