Katerinopoulosite

(NH4)2Zn(SO4)2 · 6H2O
IMA status
  • Approved
IMA symbol
Kpo
IMA approved
2017
Also known as
  • IMA2017-004
  • Katerinopoulosiet

Where it forms, where it's found

Geological setting

Oxidation zone of a sphalerite-rich orebody

Type locality
Esperanza Mine
  1. Kaminiza mines
  2. Km 3
  3. Lavreotiki
  4. East Attica
  5. Attica
  6. Greece

37.7255°, 24.0325°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
white · pale blue · pale green
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
1.97 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 79°
Refractive index
1.492 – 1.502
Surface relief
Low
Principal indices
nα 1.492 · nβ 1.496 · nγ 1.502
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 9.230(6) Å · b = 12.476(4) Å · c = 6.249(4) Å
Cell angles
β = 106.79(5) °
Ratio a:b:c
1 : 1.352 : 0.677
Unit cell volume
688.9 ų
Z
2
Parting
None observed
Type-locality form

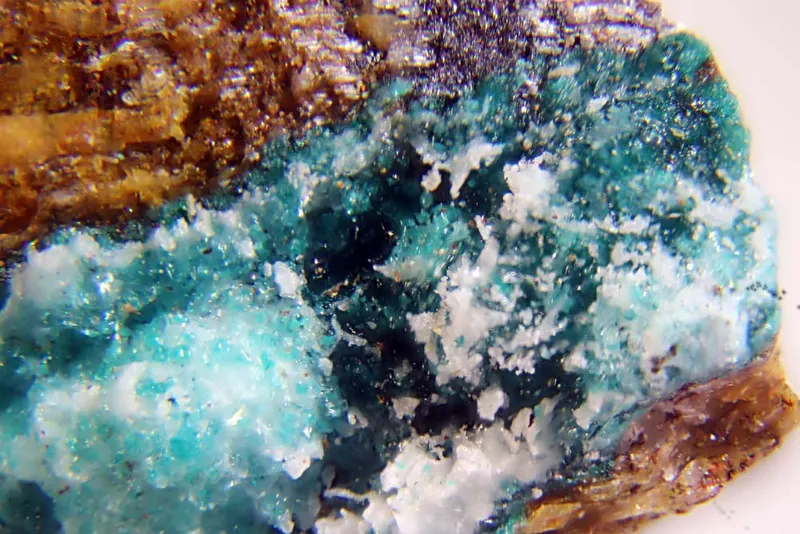

white, pale blue or pale green vermiform polycrystalline aggregates

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
55.77%
30ZnZincZinc165.38065.380
16.28%
16SSulfurSulfur232.06064.120
15.96%
7NNitrogenNitrogen214.00728.014
6.97%
1HHydrogenHydrogen201.00820.160
5.02%
Total401.660100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2017-004
  • Katerinopoulosiet

In other languages

German
IMA 2017-004 · Katerinopoulosit

Classification

Strunz
10th ed.

7.CC.60

  • 7SulfatesClass
  • 7.CSulfates (selenates, etc.) without additional anions, with H2ODivision
  • 7.CCWith medium-sized and large cationsGroup
  • 7.CC.60KaterinopoulositeSpecies

Group, growth & confusion

Commonly confused with
3 minerals

Literature, links & citation

Citations
  1. 2017Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2017) New minerals and nomenclature modifications approved in 2017, CNMNC Newsletter No 37. Mineralogical Magazine, 81 (3) 737-742 doi:10.1180/minmag.2017.081.039DOI: 10.1180/minmag.2017.081.039
  2. 2018Chukanov, Nikita V., Pekov, Igor V., Belakovskiy, Dmitry I., Britvin, Sergey N., Stergiou, Vasileios, Voudouris, Panagiotis, Magganas, Andreas (2018) Katerinopoulosite, (NH4)2Zn(SO4)2·6H2O, a new mineral from the Esperanza mine, Lavrion, Greece. European Journal of Mineralogy, 30 (4) 821-826 doi:10.1127/ejm/2018/0030-2746 DOI: 10.1127/ejm/2018/0030-2746
  3. 2020(2020) Katerinopoulosite. Handbook of Mineralogy. Mineralogical Society of America
