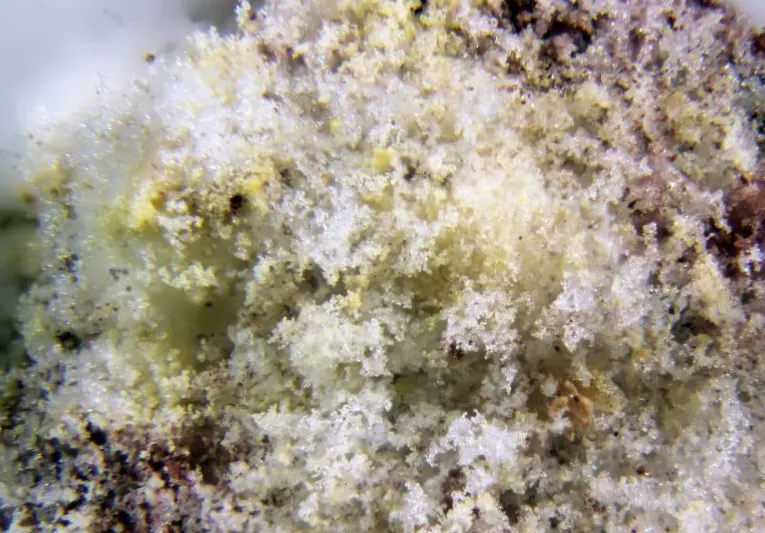

Mohrite

(NH4)2Fe2+(SO4)2 · 6H2O
IMA status
  • Approved
IMA symbol
Mhr
Discovered
1964
Also known as
  • IMA1964-023

Where it forms, where it's found

Geological setting

Boriferous fumaroles and geysers.

Type locality
Travale
  1. Montieri
  2. Grosseto Province
  3. Tuscany
  4. Italy

43.1675°, 11.0080°

18recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Pale green to colorless
Cleavage
Perfect

Perfect on (102) Distinct on (010)

Density
1.800 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 65 – 75°
Refractive index
1.48 – 1.497
Surface relief
Low
Principal indices
nα 1.48 – 1.486 · nγ 1.486 – 1.497
Dispersion
relatively strong
Michel-Lévy diagramhighlighted lineδ = 0.0085
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]85 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation85 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 6.24(1) Å · b = 12.65(2) Å · c = 9.32(2) Å
Cell angles
β = 106.79 °
Ratio a:b:c
1 : 2.027 : 1.494
Z
2
Morphology

Subhedral crystals, irregular lamellae

Comment

Synthetic

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
57.12%
16SSulfurSulfur232.06064.120
16.35%
26FeIronIron155.84555.845
14.24%
7NNitrogenNitrogen214.00728.014
7.15%
1HHydrogenHydrogen201.00820.160
5.14%
Total392.125100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1964-023

In other languages

French
mohrite
German
IMA 1964-023 · Mohrit
Italian
Mohrite

Classification

Strunz
10th ed.

7.CC.60

  • 7SulfatesClass
  • 7.CSulfates (selenates, etc.) without additional anions, with H2ODivision
  • 7.CCWith medium-sized and large cationsGroup
  • 7.CC.60MohriteSpecies
Dana
8th ed.

29.03.07.01

  • 29Hydrated Acid and Normal SulfatesClass
  • 29.03A2B(XO4)2·xH2OType
  • 29.03.07Mohrite Group (Ammonia bearing)Group
  • 29.03.07.01MohriteSpecies
CIM

25.11.16

  • 25SulphatesClass
  • 25.11Sulphates of Fe and other metalsGroup
  • 25.11.16MohriteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. Acta Crystallographica: 22: 775-780.
  2. 1964Garavelli, C. L. (1964): Mohrite, a new mineral in the boriferous Tuscan area. Atti Accad. Nazl. Lincei, Rend., Classe Sci. Fis., Mat. Nat., 36, 524-533. (in Italian)
  3. 1965American Mineralogist (1965): 50: 805.
  4. 2005(2005) Mohrite. Handbook of Mineralogy. Mineralogical Society of America
