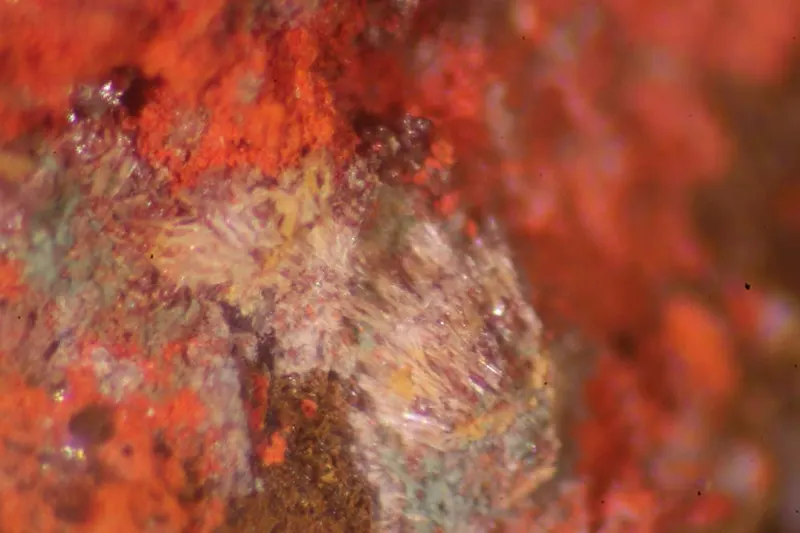

Kenhsuite

Hg3S2Cl2
IMA status
  • Approved
IMA symbol
Khs
Also known as
  • IMA1996-026
  • Kenhsuiet

Where it forms, where it's found

Geological setting

Hydrothermally altered rhyolitic, tuffaceous lacustrine rock.

Type locality
McDermitt Mine
  1. Opalite Mining District
  2. Humboldt County
  3. Nevada
  4. USA

41.9194°, -117.8122°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Canary yellow when fresh
Streak
Canary yellow
Tenacity
brittle
Cleavage
Very Good

Parallel to (100)

Fracture
Hackly · Conchoidal
Density
6.87 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70 – 80°
Refractive index
2.25
Surface relief
Very high
Principal indices
nβ 2.25 · nγ 2.25
Pleochroism
Weak

Pale yellow to greenish yellow

Dispersion
r >> v extreme
Extinction
Parallel extinction
Optical colour
White
Bireflectance
None
Internal reflections
Bright canary yellow to pale yellow-white
Tropism
Isotropic
UV response
Red to red-orange under long-wave UV (366 nm). The fluorescence weakens for samples exposed to sunlight.
Notes

Sign of elongation negative (-) or length fast.

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 9.332(5) Å · b = 16.82(2) Å · c = 9.108(5) Å
Ratio a:b:c
1 : 1.802 : 0.976
Unit cell volume
1429.63 ų
Z
8
Morphology

Threadlike fibers, elongate prismatic tablets, and blades.

Type-locality form

Extremely fine grains dispersed in clay. Fibrous and bladed crystals 1 x 10 µm in length. Isolated masses and individual crystals on fracture surfaces and cavities. Elongate prismatic tablets and blades (1 x 7 x 25 µm).

Comment

Space group Ammm, A2mm, Am2m, Amm2 or A222

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
80HgMercuryMercury3200.592601.776
81.68%
17ClChlorineChlorine235.45070.900
9.62%
16SSulfurSulfur232.06064.120
8.70%
Total736.796100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1996-026
  • Kenhsuiet

In other languages

German
IMA 1996-026 · Kenhsuit
Spanish
Kenhsuita
Italian
Kenhsuite

Classification

Strunz
10th ed.

2.FC.15b

  • 2Sulfides and SulfosaltsClass
  • 2.FSulfides of arsenic, alkalies; sulfides with halide, oxide, hydroxide, H2ODivision
  • 2.FCWith Cl, Br, I (halide-sulfides)Group
  • 2.FC.15bKenhsuiteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1966Puff, Heinrich, Harpain, Arthur, Hoop, Klaus-Peter (1966) Polymorphie bei Quecksilberschwefel-Halogeniden. Die Naturwissenschaften, 53 (11). 274 doi:10.1007/bf00621645DOI: 10.1007/bf00621645
  2. 1967Carlson, Ernest H. (1967) The growth of HgS and Hg3S2Cl2 single crystals by a vapor phase method. Journal of Crystal Growth, 1 (5). 271-277 doi:10.1016/0022-0248(67)90033-4DOI: 10.1016/0022-0248(67)90033-4
  3. 1968Ďurovič, S. (1968) The crystal structure of γ-Hg3S2Cl2. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 24 (12) 1661-1670 doi:10.1107/s0567740868004814DOI: 10.1107/s0567740868004814
  4. 1998McCormack, J.K., Dickson, F.W. (1998) Kenhsuite, ϒ-Hg3S2Cl2, a new mineral species from the McDermitt Mercury deposit, Humboldt County, Nevada. The Canadian Mineralogist: 36(1): 201-206. https://rruff.info/rruff_1.0/uploads/CM36_201.pdf
  5. 1999Jambor, J.L. and Roberts, A.C. (1999) New mineral names. American Mineralogist: 84: 193-198.
