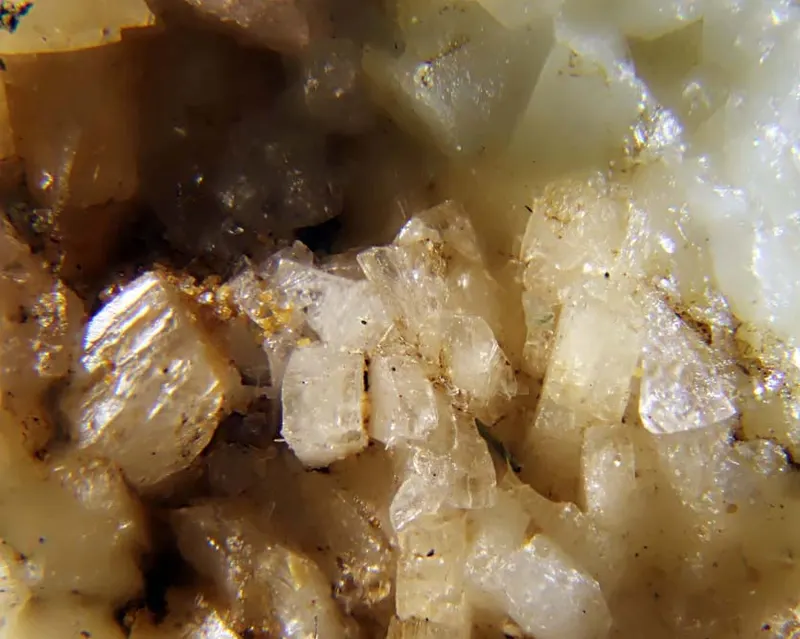

Kostylevite

K2ZrSi3O9 · H2O
IMA status
  • Approved
IMA symbol
Ksv
Discovered
1983
Also known as
  • IMA1982-053
  • Kostyleviet

Where it forms, where it's found

Geological setting

Alkalic pegmatite.

Type locality
Vuonnemiok River Valley
  1. Murmansk Oblast
  2. Russia

67.5819°, 34.1894°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless
Streak
White
Cleavage
Perfect

(110)

Density
2.74 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 48° · 2V calc = 54°
Refractive index
1.595 – 1.61
Surface relief
Moderate
Principal indices
nα 1.595 · nβ 1.598 · nγ 1.61
Dispersion
r > v or r < v
Extinction
X = b; Y ∧ c = 45°.
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 13.171(4) Å · b = 11.717(4) Å · c = 6.565(2) Å
Cell angles
β = 105.26 °
Ratio a:b:c
1 : 0.890 : 0.498
Z
2
Morphology

Elongated on c, showing forms (001), (010), (100), and (011).

Twinning

Twinned on (100)

Type-locality form

Elongated colorless crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
38.49%
40ZrZirconiumZirconium191.22491.224
21.95%
14SiSiliconSilicon328.08584.255
20.27%
19KPotassiumPotassium239.09878.196
18.81%
1HHydrogenHydrogen21.0082.016
0.48%
Total415.681100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Hf
  • Fe

Synonyms

  • IMA1982-053
  • Kostyleviet

In other languages

German
IMA 1982-053 · Kostylevit
Italian
Kostylevite

Classification

Strunz
10th ed.

9.CJ.35

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CJ[Si6O18]12- 6-membered single rings (sechser-Einfachringe), without insular complex anionsGroup
  • 9.CJ.35KostyleviteSpecies
Dana
8th ed.

59.02.01.03

  • 59Cyclosilicates Three-membered RingsClass
  • 59.02Three-Membered Rings, hydratedType

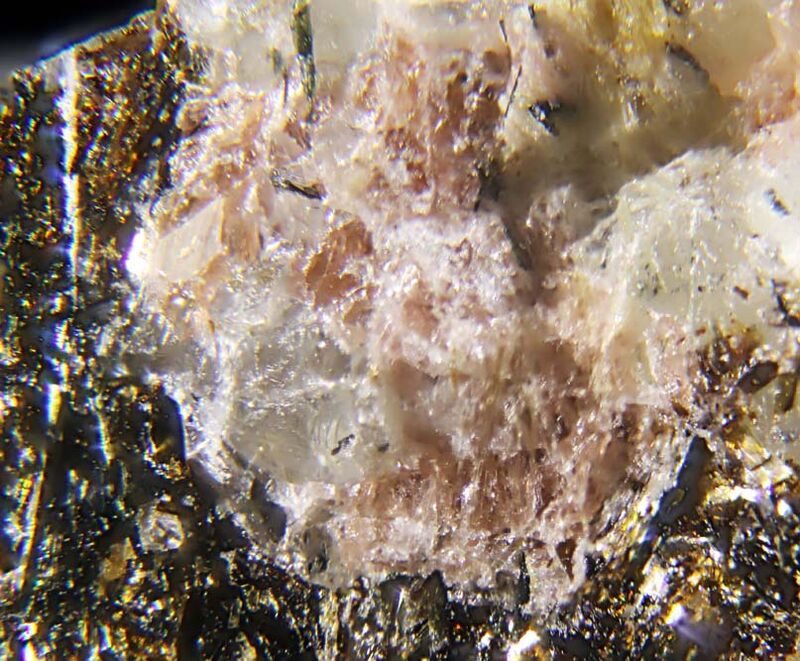

  • 59.02.01Umbite and related speciesGroup
  • 59.02.01.03KostyleviteSpecies
CIM

14.10.15

  • 14Silicates not Containing AluminumClass
  • 14.10Silicates of Zr or HfGroup
  • 14.10.15KostyleviteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1981Ilyukhin, V.V., Khomyakov, A.P., Shumyatskaya, N.G., Voronkov, A.A., Nevskii, N.N., Belov, N.V. (1981) The crystal structure of the new natural zirconosilicate K4Zr2Si6O18·2H2O. Soviet Physics - Doklady: 26: 118-120.
  2. 1981Ilyushin, G.D., Khomyakov, A.P., Shumyatskaya, N.V., Voronkov, A.A., Nevskii, N.N., Ilyukhin, V.V., Belov, N.V. (1981) Crystal structure of a new natural zirconosilicate, K4Zr2Si6O18·2H2O. Doklady Akademii Nauk SSSR: 256: 860-863.
  3. 1983Khomyakov, A.P., Voronkov, A.A., Polezhaeva, L.I., Smolyaninova, N.N. (1983) Kostylevite, K4Zr2Si6O18·2H2O, a new mineral. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 112: 469-474.
  4. 1984Dunn, Pete J., Fleischer, Michael, Francis, Carl A., Langley, Richard H., Kissin, Stephen A., Shigley, Hames E., Vanko, David A., Zilczer, Janet A. (1984) New mineral names. American Mineralogist, 69 (7-8) 810-815
  5. 2001(2001) Kostylevite. Handbook of Mineralogy. Mineralogical Society of America
