Krásnoite

Ca3Al7.7Si3P4O22.9(OH)13.3F2 · 8H2O
IMA status
  • Approved
IMA symbol
Krá
IMA approved
2011
Also known as
  • IMA2011-040
  • Krásnoiet
  • UM2006-29-SiOPO:AlCaFHSr

Where it forms, where it's found

Type locality
Silver Coin Mine
  1. Valmy
  2. Iron Point Mining District
  3. Humboldt County
  4. Nevada
  5. USA

40.9289°, -117.3239°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Snow white · pale yellowish white · white with a greenish tint
Streak
White
Tenacity
brittle
Cleavage
Imperfect/Fair

On (001)

Fracture
Irregular/Uneven
Density
2.48 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.541 – 1.549
Surface relief
Moderate
Principal indices
nω 1.541 – 1.548 · nε 1.543 – 1.549
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0015
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]15 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation15 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#97
Cell parameters
a = 6.9956(4) Å · c = 20.200(2) Å
Unit cell volume
856.09 ų
Z
3
Twinning

Penetration twinning perpendicular to (001) is common.

Type-locality form

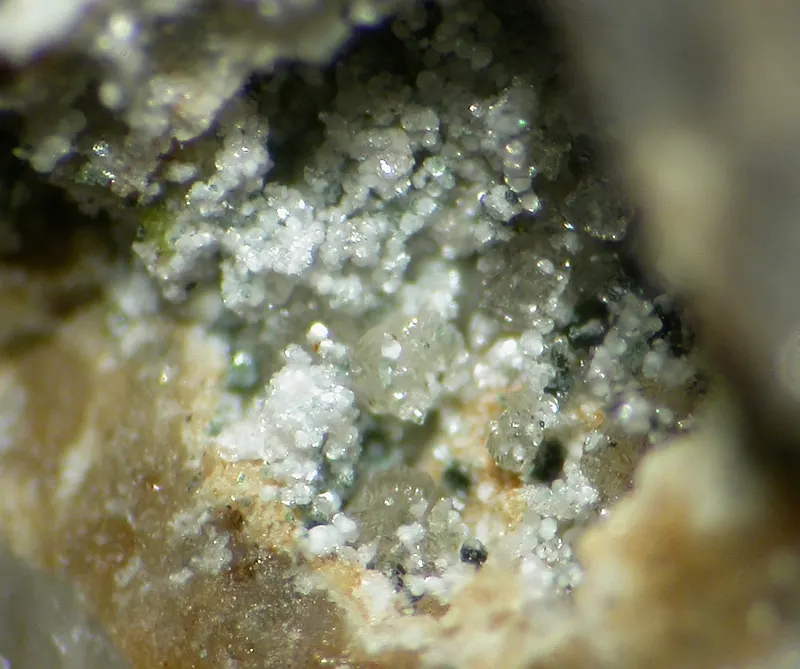

Compact to finely crystalline aggregates, balls and rosette-like clusters up to 1 mm across. Individual crystals are platy, with a hexagonal outline and reach 0.1-0.4 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen44.215.999707.156
53.95%
13AlAluminiumAluminium7.726.982207.761
15.85%
15PPhosphorusPhosphorus430.974123.896
9.45%
20CaCalciumCalcium340.078120.234
9.17%
14SiSiliconSilicon328.08584.255
6.43%
9FFluorineFluorine218.99837.996
2.90%
1HHydrogenHydrogen29.31.00829.534
2.25%
Total1310.833100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2011-040
  • Krásnoiet
  • UM2006-29-SiOPO:AlCaFHSr

In other languages

German
IMA 2011-040 · Krásnoit
Italian
krásnoite

Classification

Strunz
10th ed.

8.DO.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DOWith CO3, SO4, SiO4Group
  • 8.DO.20KrásnoiteSpecies
Dana
8th ed.

43.05.10.02

  • 43Compound Phosphates, Etc.Class
  • 43.05Hydrated Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.05.10— unnamed intermediate level —Group
  • 43.05.10.02KrásnoiteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) New minerals and nomenclature modifications approved in 2011, CNMNC Newsletter No. 10. Mineralogical Magazine, 75 (5) 2549-2561 doi:10.1180/minmag.2011.075.5.2549 DOI: 10.1180/minmag.2011.075.5.2549
  2. 2012Mills, S. J., Sejkora, J., Kampf, A. R., Grey, I. E., Bastow, T. J., Ball, N. A., Adams, P. M., Raudsepp, M., Cooper, M. A. (2012) Krásnoite, the fluorophosphate analogue of perhamite, from the Huber open pit, Czech Republic and the Silver Coin mine, Nevada, USA. Mineralogical Magazine, 76 (3) 625-634 doi:10.1180/minmag.2012.076.3.13 DOI: 10.1180/minmag.2012.076.3.13
  3. 2018McCubbin, Francis M., Phillips, Brian L., Adcock, Christopher T., Tait, Kimberly T., Steele, Andrew, Vaughn, John S., Fries, Marc D., Atudorei, Viorel, Vander Kaaden, Kathleen E., Hausrath, Elisabeth M. (2018) Discreditation of bobdownsite and the establishment of criteria for the identification of minerals with essential monofluorophosphate (PO3F2–) American Mineralogist, 103 (8) 1319-1328 doi:10.2138/am-2018-6440DOI: 10.2138/am-2018-6440
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Krásnoite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/krasnoite-42373},
  note      = {Accessed 2026-05-11}
}
