Perhamite

Ca3Al7.7Si3P4O23.5(OH)14.1 · 8H2O
IMA status
  • Approved
IMA symbol
Phm
Discovered
1977
Also known as
  • IMA1975-019
  • Perhamiet

Where it forms, where it's found

Geological setting

Originally from late stage mineralization in granite pegmatite. Subsequently found in oxidized zones of ore deposits.

Type locality
Dunton Gem Quarry
  1. Newry
  2. Oxford County
  3. Maine
  4. USA

44.5428°, -70.7231°

27recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white · light brown · yellow · orange
Streak
White
Tenacity
very brittle
Cleavage
Imperfect/Fair

Imperfect on (0001)

Density
2.64 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.564 – 1.577
Surface relief
Moderate
Principal indices
nω 1.564 · nε 1.577
Dispersion
r > v moderate
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#97
Cell parameters
a = 7.021 Å · c = 20.218 Å
Morphology

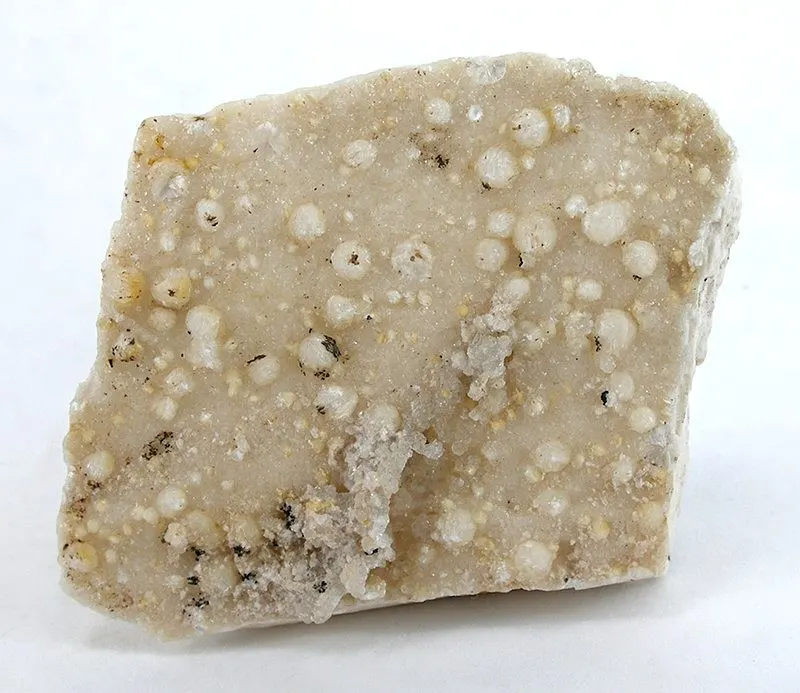

Spherulitic masses of platy crystals, also in rosettes.

Type-locality form

Rosettes of pseudo-hexagonal plates; also earthy.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen45.615.999729.554
56.29%
13AlAluminiumAluminium7.726.982207.761
16.03%
15PPhosphorusPhosphorus430.974123.896
9.56%
20CaCalciumCalcium340.078120.234
9.28%
14SiSiliconSilicon328.08584.255
6.50%
1HHydrogenHydrogen30.11.00830.341
2.34%
Total1296.042100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Fe
  • Mg
  • Na
  • F

Synonyms

  • IMA1975-019
  • Perhamiet

In other languages

German
IMA 1975-019 · Perhamit
Spanish
Perhamita
Italian
perhamite

Classification

Strunz
10th ed.

8.DO.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DOWith CO3, SO4, SiO4Group
  • 8.DO.20PerhamiteSpecies
Dana
8th ed.

43.05.10.01

  • 43Compound Phosphates, Etc.Class
  • 43.05Hydrated Compound Phosphates, etc·, Containing Hydroxyl or HalogenType
  • 43.05.10— unnamed intermediate level —Group
  • 43.05.10.01PerhamiteSpecies
CIM

17.6.2

  • 17Silicates Containing other AnionsClass
  • 17.6Silicates with phosphateGroup
  • 17.6.2PerhamiteSpecies

Group, growth & confusion

In the same group
1 members

Literature, links & citation

Citations
  1. 1977Dunn, Pete J., Appleman, Daniel E. (1977) Perhamite, a new calcium aluminum silico-phosphate mineral, and a re-examination of viséite. Mineralogical Magazine, 41 (320) 437-442 doi:10.1180/minmag.1977.041.320.03 DOI: 10.1180/minmag.1977.041.320.03
  2. 1978Fleischer, Michael; Pabst, Adolf, White, John Sampson (1978) New mineral names. American Mineralogist, 63 (7-8). 793-796
  3. 2003Mills, S. J. (2003) A note on perhamite from the Moculta (Klemms) phosphate quarry, South Australia. Australian Journal of Mineralogy, 9 (1). 43-45
  4. 2006Mills, S., Mumme, G., Grey, I., Bordet, P. (2006) The crystal structure of perhamite. Mineralogical Magazine, 70 (2) 201-209 doi:10.1180/0026461067020324DOI: 10.1180/0026461067020324
  5. 2006Locock, A. J., Ercit, T. S., Kjellman, J., Piilonen, P. C. (2006) New mineral names. American Mineralogist, 91 (11) 1945-1954 doi:10.2138/am.2006.477 DOI: 10.2138/am.2006.477
