Kristiansenite

Ca4Sc2Sn2(Si2O7)2(Si2O6OH)2
IMA status
  • Approved
IMA symbol
Kse
Discovered
1998
IMA approved
2000
Also known as
  • IMA2000-051
  • Kristianseniet

Where it forms, where it's found

Geological setting

Late stage hydrothermal vugs in an amazonite pegmatite.

Type locality
Heftetjern pegmatite
  1. Tørdal
  2. Drangedal
  3. Telemark
  4. Norway

59.1822°, 8.7467°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · white · or slightly yellowish
Streak
White
Tenacity
brittle
Cleavage

(001), inferred from preferred orientation in the X-ray powder-diffraction pattern.

Fracture
Irregular/Uneven
Density
3.64 g/cm³

Optical

Surface relief
High
Principal indices
n 1.74
UV response
Nonfluorescent

Crystallography

Crystal system
Triclinic
Cell parameters
a = 10.007(5) Å · b = 8.401(5) Å · c = 13.327(5) Å
Cell angles
α = 90.08 ° · β = 109.06 ° · γ = 90.01 °
Ratio a:b:c
1 : 0.840 : 1.332
Z
4
Morphology

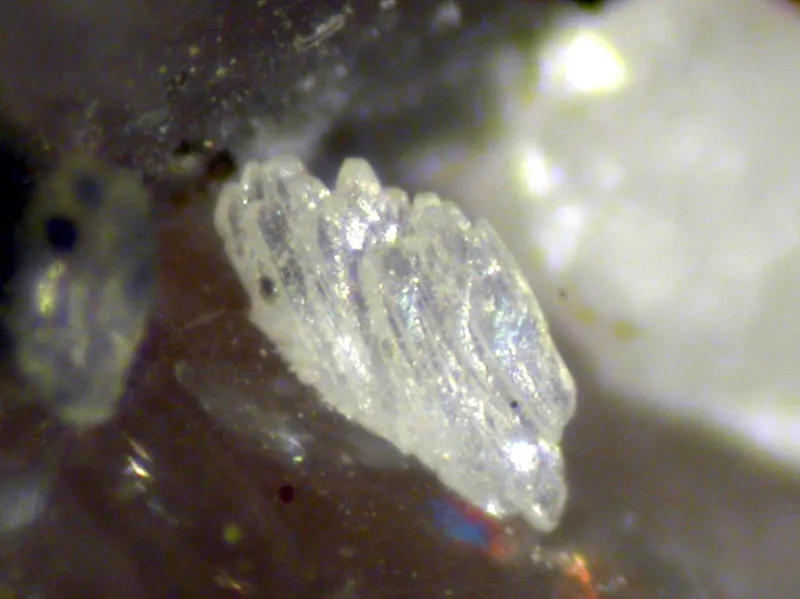

Tapered crystals, to 2 mm, and as aggregates to 2 mm across. Sometimes as colorless grains in spessartine.

Twinning

Polysynthetic twinning on (010).

Type-locality form

Tapered crystals and aggregates.

Comment

space group C1

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2815.999447.972
38.54%
50SnTinTin2118.710237.420
20.43%
14SiSiliconSilicon828.085224.680
19.33%
20CaCalciumCalcium440.078160.312
13.79%
21ScScandiumScandium244.95689.912
7.74%
1HHydrogenHydrogen21.0082.016
0.17%
Total1162.312100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2000-051
  • Kristianseniet

In other languages

French
Kristiansenite
German
IMA 2000-051 · Kristiansenit
Italian
Kristiansenite

Classification

Strunz
10th ed.

9.BC.30

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BCSi2O7 groups, without non-tetrahedral anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BC.30KristianseniteSpecies

Group, growth & confusion

In the same group
3 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 2022
  2. 2001Ferraris, G., Gula, A., Ivaldi, G., Nespolo, Massimo, Raade, G. (2001) Crystal structure of kristiansenite: a case of class IIB twinning by metric merohedry. Zeitschrift für Kristallographie - Crystalline Materials, 216 (8) doi:10.1524/zkri.216.8.442.20353DOI: 10.1524/zkri.216.8.442.20353
  3. 2002Raade, G., Ferraris, G., Gula, A., Ivaldi, G., Bernhard, F. (2002) Kristiansenite, a new calcium-scandium-tin sorosilicate from granite pegmatite in Tørdal, Telemark, Norway. Mineralogy and Petrology, 75 (1) 89-99 doi:10.1007/s007100200017DOI: 10.1007/s007100200017
  4. 2003Jambor, J.L., Roberts, A.C. (2003) New mineral names. American Mineralogist: 88: 251-255.
  5. 2003Mandarino, Joseph A. (2003) New minerals. The Canadian Mineralogist, 41 (3) 803-828 doi:10.2113/gscanmin.41.3.803 DOI: 10.2113/gscanmin.41.3.803
