Kudriavite

(Cd,Pb)Bi2S4
IMA status
  • Approved
IMA symbol
Kdv
IMA approved
2003
Also known as
  • IMA2003-011
  • Kudriaviet

Where it forms, where it's found

Geological setting

Volcanic fumaroles

Type locality
Kudriavy volcano
  1. Iturup Island
  2. Kurilsky District
  3. Kuril Islands
  4. Sakhalin Oblast
  5. Russia

45.3813°, 148.8172°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Opaque
Colour
dark grey with a slightly reddish hue
Streak
black
Tenacity
very brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
6.58 g/cm³

Optical

Pleochroism
Non-pleochroic
Optical colour
white with a slight yellow hue
Anisotropism
strong
Bireflectance
weak to distinct
Internal reflections
none
Tropism
Anisotropic
Reflectance R%
(21.0,30.3) 400, (23.5,32.1) 420, (26.1,33.8) 440, (28.5,35.6) 460, (29.6,36.4) 470, (30.4,36.9) 480, (31.5,37.9) 500, (32.1,38.4) 520, (32.3,38.7) 540, (32.4,38.8) 546, (32.3,38.7) 560, (32.0,38.3) 580, (31.8,38.2) 589, (31.7,38.2) 600, (31.6,38.1) 620, (31.5,37.8) 640, (31.4,37.7) 650, (31.4,37.6) 660, (31.3,37.5) 680, (31.3,37.3) 700
Reflected-light panel
30.2 %anisotropic · dual curve
Specimen sRGB 203, 142, 70
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
weak to distinct
Anisotropism
strong
Reflected colour
white with a slight yellow hue
Internal reflections
none

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 13.095(1) Å · b = 4.0032(3) Å · c = 14.711(1) Å
Cell angles
β = 115.59 °
Ratio a:b:c
1 : 0.306 : 1.123
Unit cell volume
695.5 ų
Z
4
Type-locality form

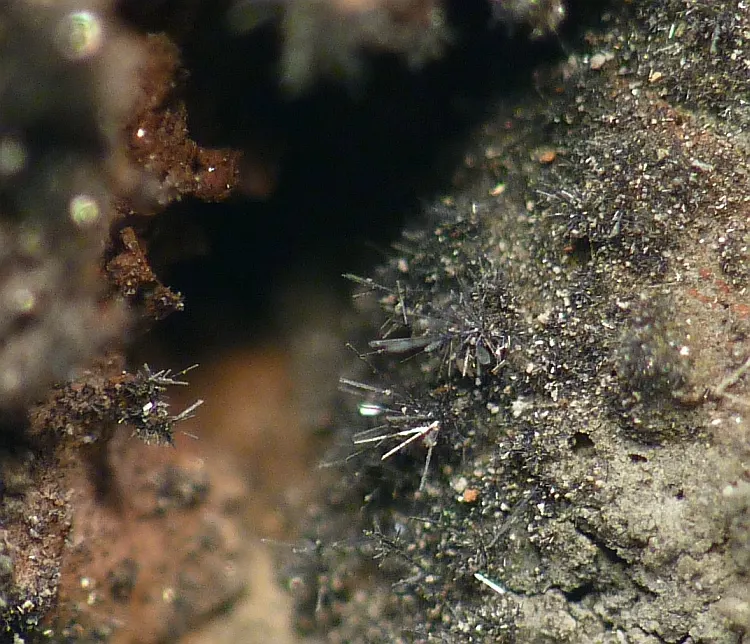

Platy opaque crystals up to 0.4x0.2x0.02 mm, which form chaotic aggregates in pores and fissures of the fumarolic crust.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth2208.980417.960
48.28%
82PbLeadLead1207.200207.200
23.93%
16SSulfurSulfur432.060128.240
14.81%
48CdCadmiumCadmium1112.414112.414
12.98%
Total865.814100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2003-011
  • Kudriaviet

In other languages

German
IMA 2003-011 · Kudriavit
Italian
Kudriavite

Classification

Strunz
10th ed.

2.JA.05c

  • 2Sulfides and SulfosaltsClass
  • 2.JSulfosalts of PbS archetypeDivision
  • 2.JAGalena derivatives with little or no PbGroup
  • 2.JA.05cKudriaviteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2005Chaplygin, I.V., Mozgova, N.N., Magazina, L.O., Kuznetsova, O.Yu., Safonov, Yu.G., Bryzgalov, I.A., Makovcký, E., Balić-Žunić, T. (2005): Kudriavite, (Cd,Pb)Bi2S4, a new mineral species from Kudriavy volcano, Iturup Island, Kuriles. The Canadian Mineralogist, 43, 695-701.
  2. 2007Balic-Zunic, T., Makovicky, E. (2007) THE CRYSTAL STRUCTURE OF KUDRIAVITE, (Cd,Pb)Bi2S4. The Canadian Mineralogist, 45 (3) 437-443 doi:10.2113/gscanmin.45.3.437 DOI: 10.2113/gscanmin.45.3.437
  3. 2014(2014) Kudriavite. Handbook of Mineralogy. Mineralogical Society of America
