Lepersonnite-(Gd)

CaGd2(UO2)24(CO3)8Si4O28 · 60H2O
IMA status
  • Approved
IMA symbol
Lps-Gd
Also known as
  • IMA1981-036
  • Lepersonniet-(Gd)

Where it forms, where it's found

Geological setting

oxidation and hydration of uraninite

Type locality
Shinkolobwe Mine
  1. Shinkolobwe
  2. Kambove Territory
  3. Haut-Katanga
  4. DR Congo

-11.0486°, 26.5508°

1recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Transparency
Transparent · Translucent
Colour
Bright yellow
Density
3.97 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 73° · 2V calc = 72°
Refractive index
1.638 – 1.682
Surface relief
High
Principal indices
nα 1.638 · nβ 1.666 · nγ 1.682
Pleochroism
Visible

X = pale yellow; Y = Z = bright yellow

Dispersion
Relatively weak.
Extinction
Y = c.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0440
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]440 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation440 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pnnm
Cell parameters
a = 11.850(7) Å · b = 16.16(2) Å · c = 39.506(17) Å
Ratio a:b:c
1 : 1.364 : 3.334
Z
4
Type-locality form

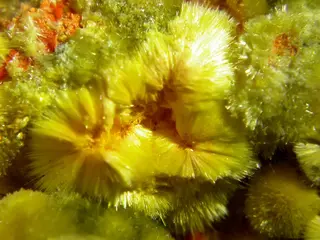

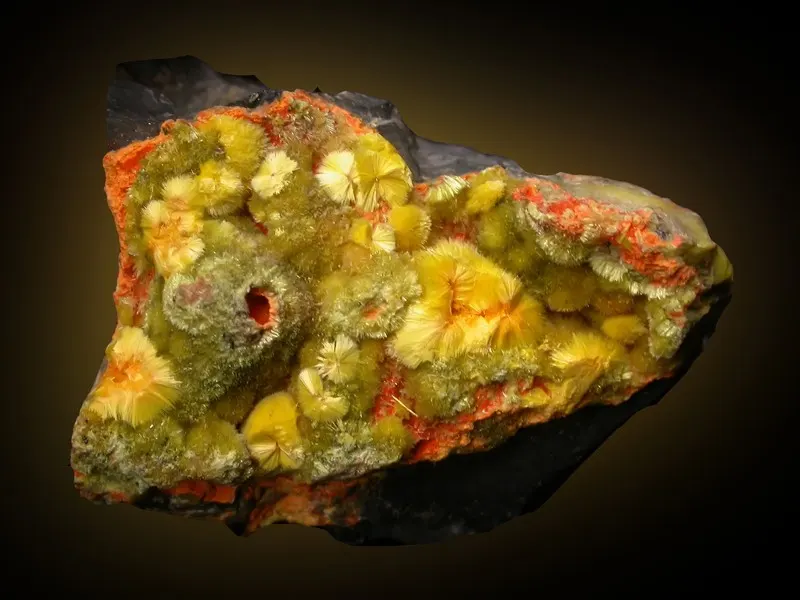

As mammilary crusts or spherules, to 5 mm in diameter, composed of radiating acicular crystals elongated along [001].

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium24238.0295712.696
63.78%
8OOxygenOxygen16015.9992559.840
28.58%
64GdGadoliniumGadolinium2157.250314.500
3.51%
1HHydrogenHydrogen1201.008120.960
1.35%
14SiSiliconSilicon428.085112.340
1.26%
6CCarbonCarbon812.01196.088
1.07%
20CaCalciumCalcium140.07840.078
0.45%
Total8956.502100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1981-036
  • Lepersonniet-(Gd)

In other languages

French
Lepersonnite- · Lepersonnite-(Gd)
German
IMA 1981-036 · Lepersonnit · Lepersonnit- · Lepersonnit-(Gd)
Italian
Lepersonnite- · Lepersonnite-(Gd)

Classification

Strunz
10th ed.

5.EG.10

  • 5CarbonatesClass
  • 5.EUranyl CarbonatesDivision
  • 5.EGWith SO4 or SiO4Group
  • 5.EG.10Lepersonnite-(Gd)Species
Dana
8th ed.

17.01.12.01

  • 17Compound CarbonatesClass
  • 17.01MiscellaneousType
  • 17.01.12— unnamed intermediate level —Group
  • 17.01.12.01Lepersonnite-(Gd)Species
CIM

17.4.12

  • 17Silicates Containing other AnionsClass
  • 17.4Silicates with carbonatesGroup
  • 17.4.12Lepersonnite-(Gd)Species

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1982Deliens, M., Piret, P. (1982) Bijvoetite et lepersonnite, carbonates hydratés d’uranyle et de terres rares de Shinkolobwe, Zaïre. The Canadian Mineralogist: 20(2): 231-238 (in French with English abstract). https://rruff.info/rruff_1.0/uploads/CM20_231.pdf
  2. 1983Dunn, P. J., Fleischer, M., Chao, G. Y., Cabri, L. J., Mandarino, J. A. (1983) New mineral names. American Mineralogist, 68 (11-12) 1248-1252
  3. 1987Nickel, Ernest H., Mandarino, Joseph A. (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature. American Mineralogist, 72 (9-10) 1031-1042
  4. 2001(2001) Lepersonnite-(Gd). Handbook of Mineralogy. Mineralogical Society of America
  5. 2025Plášil J, Steciuk G; Sejkora J, (2025) Extending the mineralogy of U6+ (I): Crystal structure of lepersonnite-(Gd) and a description of the new mineral lepersonnite-(Nd). Mineralogical Magazine, 89 (5). 549-565
