Lindbergite

Mn(C2O4) · 2H2O
IMA status
  • Approved
IMA symbol
Ldb
Discovered
2001
IMA approved
2003
Also known as
  • IMA2003-029
  • Lindbergiet

Where it forms, where it's found

Geological setting

Secondary mineral associated with phosphates in a granite pegmatite.

Type locality
Boca Rica claim
  1. Sapucaia do Norte
  2. Galiléia
  3. Minas Gerais
  4. Brazil

-18.8442°, -41.4958°

18recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
White to grayish white
Streak
White
Tenacity
brittle
Cleavage
Perfect

on (010)

Density
2.1 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80° · 2V calc = 77°
Refractive index
1.424 – 1.65
Surface relief
Moderate
Principal indices
nα 1.424 · nβ 1.55 · nγ 1.65
Pleochroism
Non-pleochroic
Dispersion
not detected
Extinction
Y ∧ c = 20°.
Michel-Lévy diagramhighlighted lineδ = 0.2260
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2260 nm5th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2260 nm
Order5th order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 11.995 Å · b = 5.632 Å · c = 9.967 Å
Cell angles
β = 128.34 °
Ratio a:b:c
1 : 0.470 : 0.831
Unit cell volume
528.1 ų
Z
4
Morphology

Pseudomorphous after short prismatic crystals of the trihydrate; aggregates of platelets.

Parting
not observed
Type-locality form

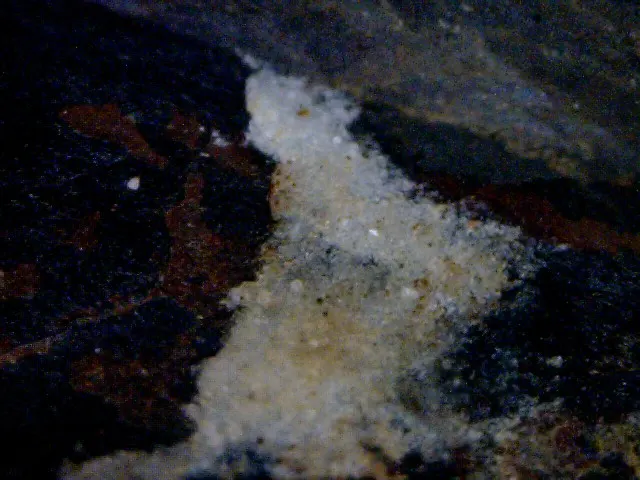

As white short prismatic crystals 0.1 to 0.3 mm in length (pseudomorphs after the orthorhombic trihydrate) and as grayish-white aggregates in 0.1 mm thick translucent crusts made up of interlocking irregularly contoured platelets up to 0.03 mm in length.

Comment

Space group C2/c.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen615.99995.994
53.63%
25MnManganeseManganese154.93854.938
30.70%
6CCarbonCarbon212.01124.022
13.42%
1HHydrogenHydrogen41.0084.032
2.25%
Total178.986100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2003-029
  • Lindbergiet

In other languages

German
IMA 2003-029 · Lindbergit
Italian
Lindbergite

Classification

Strunz
10th ed.

10.AB.05

  • 10Organic CompoundsClass
  • 10.ASalts of organic acidsDivision
  • 10.ABOxalatesGroup
  • 10.AB.05LindbergiteSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 1973Deyrieux, R., Berro, C., Peneloux, A. (1973) Contribution à l'étude des oxalates de certains métaux bivalents. III. Structure cristalline des oxalates dihydratés de manganèse, de cobalt, de nickel et de zinc. Polymorphisme des oxalates dihydratés de cobalt et de nickel [Oxalates of some divalent metals. III. Crystal structure of dihydrated manganese, cobalt, nickel, and zinc oxalates. Polymorphism of dihydrated cobalt and nickel oxalates]. Bulletin de la Société Chimique de France: 1973: 25-34.
  2. 1977Huizing, A., van Hal, H.A.M., Kwestroo, W., Langereis, C., van Loosdregt, P.C. (1977) Hydrates of manganese (II) oxalate. Materials Research Bulletin, 12 (6). 605-611 doi:10.1016/0025-5408(77)90069-1DOI: 10.1016/0025-5408(77)90069-1
  3. 1987Sledzinska, I, Murasik, A, Fischer, P (1987) Magnetic ordering of the linear chain system manganese oxalate dihydrate investigated by means of neutron diffraction and bulk magnetic measurements. Journal of Physics C: Solid State Physics, 20 (15). 2247-2259 doi:10.1088/0022-3719/20/15/011DOI: 10.1088/0022-3719/20/15/011
  4. 2003Lethbridge, Zoe A.D., Congreve, Aileen F., Esslemont, Emma, Slawin, Alexandra M.Z., Lightfoot, Philip (2003) Synthesis and structure of three manganese oxalates: MnC2O4.2H2O, [C4H8(NH2)2][Mn2(C2O4)3] and Mn2(C2O4)(OH)2. Journal of Solid State Chemistry, 172 (1). 212-218 doi:10.1016/s0022-4596(03)00035-5DOI: 10.1016/s0022-4596(03)00035-5
  5. 2003BURFORD, EUAN P., KIERANS, MARTIN, GADD, GEOFFREY M. (2003) Geomycology: fungi in mineral substrata. Mycologist, 17 (3). 98-107 doi:10.1017/s0269915x03003112DOI: 10.1017/s0269915x03003112
