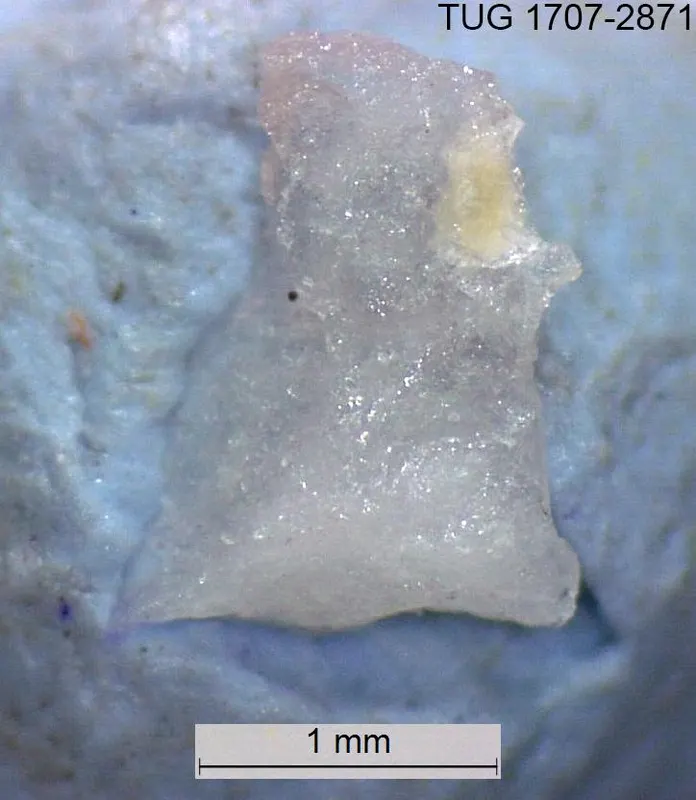

Magnesio-arfvedsonite

NaNa2(Mg4Fe3+)Si8O22(OH)2
IMA status
  • Approved
IMA symbol
Marf
Also known as
  • IMA2013-137
  • Magnesio-arfvedsoniet
  • Szechenyite

Where it forms, where it's found

Type locality
Hpakant-Tawmaw Jade Tract
  1. Hpakant Township (Hpakan
  2. Phakant
  3. Phakan)
  4. Mohnyin District
  5. Kachin State
  6. Myanmar
105recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Bluish-black to black · purple
Streak
Pale grey to dark bluish-grey.
Cleavage

Perfect on (110)

Optical

Optical type
Biaxial (-) · 2V measured = 33 – 40° · 2V calc = 88°
Refractive index
1.66 – 1.664
Surface relief
High
Principal indices
nα 1.66 · nβ 1.662 · nγ 1.664
Dispersion
weak
Luminescence
Nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.867(1) Å · b = 17.928(2) Å · c = 5.2839(6) Å
Cell angles
β = 103.799(2) °
Ratio a:b:c
1 : 1.817 : 0.536
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
46.11%
14SiSiliconSilicon828.085224.680
26.98%
12MgMagnesiumMagnesium424.30597.220
11.68%
11NaSodiumSodium322.99068.970
8.28%
26FeIronIron155.84555.845
6.71%
1HHydrogenHydrogen21.0082.016
0.24%
Total832.707100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2013-137
  • Magnesio-arfvedsoniet
  • Szechenyite

In other languages

German
IMA 2013-137 · Magnesio-Arfvedsonit
Italian
magnesio-arfvedsonite
Chinese
镁亚铁钠闪石

Classification

Strunz
10th ed.

9.DE.25

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DEInosilicates with 2-periodic double chains, Si4O11; ClinoamphibolesGroup
  • 9.DE.25Magnesio-arfvedsoniteSpecies
CIM

14.24.2

  • 14Silicates not Containing AluminumClass
  • 14.24Silicates of Fe, Mg and alkalisGroup
  • 14.24.2Magnesio-arfvedsoniteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1974Milton, Charles, Ingram, Blanche, Breger, and Irving (1974) Authigenic magnesioarfvedsonite from the Green River Formation, Duchesne County, Utah. American Mineralogist, 59 (7-8) 830-836
  2. 1998Mandarino, Joseph A. (1998) The Second List of Additions and Corrections to the Glossary of Mineral Species (1995) - The Amphibole Group. The Mineralogical Record, 29 (3) 169-174
  3. 2001(2001) Magnesio-arfvedsonite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2006Hawthorne, F. C., Oberti, R. (2006) On the classification of amphiboles. The Canadian Mineralogist, 44 (1) 1-21 doi:10.2113/gscanmin.44.1.1DOI: 10.2113/gscanmin.44.1.1
  5. 2008Hawthorne, F. C., Oberti, R., Zanetti, A., Nayak, V.K. (2008) The crystal chemistry of alkali amphiboles from the Kajlidongri Manganese Mine, India. The Canadian Mineralogist, 46 (2) 455-466 doi:10.3749/canmin.46.2.455DOI: 10.3749/canmin.46.2.455
