Magnesiochlorophoenicite

Mg3Zn2(AsO4)(OH,O)6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mcpo
Discovered
1935
Also known as
  • Magnesiochlorophoeniciet
  • Magnesium-chlorophoenicite
  • Magnesium-Chlorophönizit

Where it forms, where it's found

Geological setting

In secondary veinlets in massive ore in a metamorphosed Pre-cambrian sedimentary Zn-Fe-Mn deposit.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · white · pale yellow · colorless in transmitted light.
Streak
White
Tenacity
brittle
Cleavage
Perfect

Lengthwise to fibers, perfect.

Fracture
Splintery
Density
3.37 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = large°
Refractive index
1.669 – 1.677
Surface relief
High
Principal indices
nα 1.669 · nβ 1.672 · nγ 1.677
Birefringence
0.008
Pleochroism
Non-pleochroic
Dispersion
generally r < v strong, also r > v
UV response
Not fluorescent in UV.
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 23.02 Å · b = 3.303 Å · c = 7.346 Å
Cell angles
β = 106.22 °
Ratio a:b:c
1 : 0.143 : 0.319
Z
2
Morphology

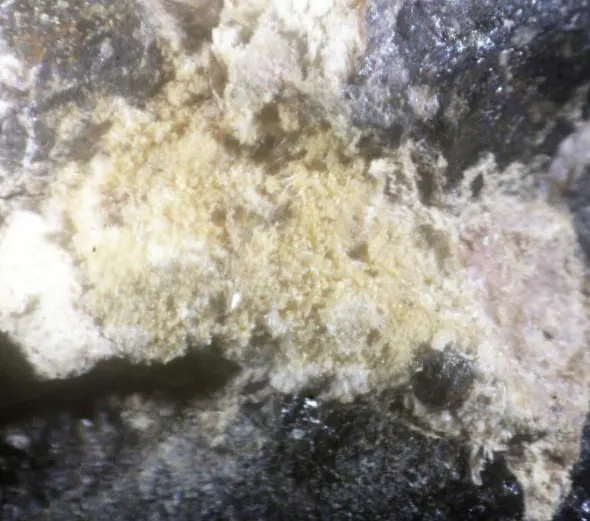

Occurs as acicular crystals randomly arranged or in radial aggregates of fibrous crystals.

Type-locality form

Fibers, grouped in radial aggregates implanted on the surface of a narrow open vein composed of zincite and carbonates. Some of the rosettes have a diameter of 1 cm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
47.35%
30ZnZincZinc265.380130.760
24.18%
33AsArsenicArsenic174.92274.922
13.86%
12MgMagnesiumMagnesium324.30572.915
13.49%
1HHydrogenHydrogen61.0086.048
1.12%
Total540.629100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Magnesiochlorophoeniciet
  • Magnesium-chlorophoenicite
  • Magnesium-Chlorophönizit

In other languages

German
Magnesiochlorophoenicit
Italian
Magnesio-clorofenicite · magnesioclorophoenicite

Classification

Strunz
10th ed.

8.BE.35

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BEWith only medium-sized cations, (OH, etc.):RO4 > 2:1Group
  • 8.BE.35MagnesiochlorophoeniciteSpecies
Dana
8th ed.

41.01.01.02

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.01(AB)m(XO4)pZq, where m:p > 4:1Type
  • 41.01.01Phoenicite GroupGroup
  • 41.01.01.02MagnesiochlorophoeniciteSpecies
CIM

20.8.19

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.8Arsenates of MnGroup
  • 20.8.19MagnesiochlorophoeniciteSpecies

Group, growth & confusion

In the same group
3 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1935Palache, Charles (1935) The minerals of Franklin and Sterling Hill, Sussex County, New Jersey. Professional Paper 180. US Geological Survey 135 pp. doi:10.3133/pp180 DOI: 10.3133/pp180
  2. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  3. 1968Moore, Paul B. (1968) The crystal structure of chlorophoenicite. American Mineralogist, 53 (7-8) 1110-1119
  4. 1981Dunn, Pete J. (1981) Magnesium-chlorophoenicite redefined and new data on chlorophoenicite. The Canadian Mineralogist, 19 (2) 333-336
  5. 1982Bayliss, Peter J., Warne, S. St. J (1982). ICDD 34-190.
