Malhmoodite

Fe2+Zr(PO4)2 · 4H2O
IMA status
  • Approved
IMA symbol
Mmo
Discovered
1993
Also known as
  • IMA1992-001
  • Mahlmoodite
  • Malhmoodiet

Where it forms, where it's found

Type locality
Wilson Springs (Potash Sulfur Springs)
  1. Garland County
  2. Arkansas
  3. USA

34.4834°, -92.9835°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Creamy-white
Streak
White
Density
2.877 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.64 – 1.652
Surface relief
Moderate
Principal indices
nα 1.64 · nβ 1.652 · nγ 1.652
Birefringence
Very low (effectively uniaxial negative).
Dispersion
Relatively weak
Extinction
Parallel extinction and positive elongation.
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 9.12(2) Å · b = 5.42(1) Å · c = 19.17(2) Å
Cell angles
β = 94.81(1) °
Ratio a:b:c
1 : 0.594 : 2.102
Z
4
Morphology

Spherules of radiating fibers

Type-locality form

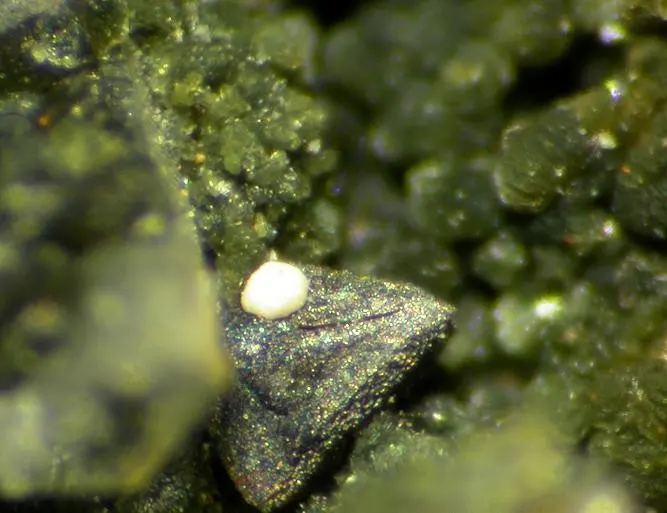

Small (<0.5 mm) cream white spheres. The spherules consist of thin, flat, radiating, crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
46.93%
40ZrZirconiumZirconium191.22491.224
22.30%
15PPhosphorusPhosphorus230.97461.948
15.15%
26FeIronIron155.84555.845
13.65%
1HHydrogenHydrogen81.0088.064
1.97%
Total409.069100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1992-001
  • Mahlmoodite
  • Malhmoodiet

In other languages

German
IMA 1992-001 · Mahlmoodit · Malhmoodit
Italian
Malhmoodite

Classification

Strunz
10th ed.

8.CE.75

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CEWith only medium-sized cations, RO4:H2O about 1:2.5Group
  • 8.CE.75MalhmooditeSpecies
Dana
8th ed.

40.01.05.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.01AB(XO4)·xH2OType
  • 40.01.05— unnamed intermediate level —Group
  • 40.01.05.01MalhmooditeSpecies

Group, growth & confusion

In the same group
1 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1993Milton, Charles, Mcgee, James J., Evans, Howard T., Jr., (1993) Mahlmoodite, FeZr(PO4)2·4H2O, a new iron zirconium phosphate mineral from Wilson Springs, Arkansas. American Mineralogist, 78 (3-4) 437-440
  2. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  3. 2005(2005) Malhmoodite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2018Pelckmans, H. (2018) Malhmoodite meanderings. Mineral News 34(6), 1, 3, 15.
  5. 2022Yang, Hexiong, Gu, Xiangping, Loomis, Thomas, Gibbs, Ronald B., Downs, Robert T. (2022) The Crystal Structure of Malhmoodite from Custer, South Dakota, USA. The Canadian Mineralogist, 60 (3) 485-492 doi:10.3749/canmin.2100029 DOI: 10.3749/canmin.2100029
