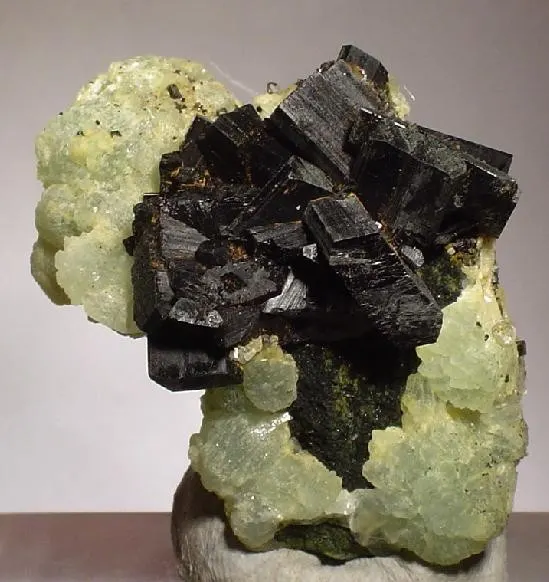

Manganbabingtonite

Ca2Mn2+Fe3+Si5O14(OH)
IMA status
  • Approved
IMA symbol
Mbab
Also known as
  • Manganbabingtoniet
  • Manganobabingtonit

Where it forms, where it's found

Type locality
Rudnyi Kaskad deposit
  1. Krasnokamensk ore field
  2. Kuragin District
  3. Krasnoyarsk Krai
  4. Russia

54.3058°, 93.2447°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Dark greenish black to yellowish green
Tenacity
brittle
Cleavage
Perfect

Perfect on (001), less perfect on (010), poor on (100)

Fracture
Sub-Conchoidal
Density
3.452 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 78 – 82° · 2V calc = 86°
Refractive index
1.716 – 1.746
Surface relief
High
Principal indices
nα 1.716 · nβ 1.730 · nγ 1.746
Pleochroism
Strong

X = emerald-green; Y = faint rose to nearly colorless; Z = purple-brown to rose-brown.

Dispersion
r < v
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.91 Å · b = 11.72 Å · c = 6.78 Å
Cell angles
α = 90.37 ° · β = 93.75 ° · γ = 104.8 °
Ratio a:b:c
1 : 1.696 : 0.981
Z
2
Type-locality form

Crystals short prismatic, to 5 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
41.93%
14SiSiliconSilicon528.085140.425
24.53%
20CaCalciumCalcium240.07880.156
14.00%
26FeIronIron155.84555.845
9.76%
25MnManganeseManganese154.93854.938
9.60%
1HHydrogenHydrogen11.0081.008
0.18%
Total572.357100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mg
  • Na
  • K
  • F
  • Cl
  • H20
  • C

Synonyms

  • Manganbabingtoniet
  • Manganobabingtonit

In other languages

German
Manganbabingtonit
Italian
Manganbabingtonite
Chinese
硅锰灰石

Classification

Strunz
10th ed.

9.DK.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.05ManganbabingtoniteSpecies
Dana
8th ed.

65.04.01.03

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.04Single-Width Unbranched Chains, W=1 with chains P=5Type
  • 65.04.01Rhodonite groupGroup
  • 65.04.01.03ManganbabingtoniteSpecies
CIM

14.18.39

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.39ManganbabingtoniteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1966Vinogradova, R.A., Sychkova, V.A., and Kabalov, Y.K. (1966) Manganiferous babingtonite from the Rudnyi Kaskad deposit, Eastern Sayan. Doklady Akademii Nauk SSSR: 169: 434-437.
  2. 1966Vinogradova, R.A., Sychkova, V.A., Kabalov, Y.K. (1966) Manganiferous babingtonite from the Rudnyi Kaskad deposit, Eastern Sayan. Doklady Akademii Nauk SSSR: 169: 434-437.
  3. 1967Vinogradova, R.A. and Plyusinna, I.N. (1967) Composition, properties, and crystallochemical features of minerals of the isomorphous series ferrobabingtonite-manganbabingtonite. Vestnik Moskovskogo Universiteta, Geologiya: 4: 54-67.
  4. 1968Fleischer, Michael (1968) New Mineral Names. American Mineralogist, 53 (5-6) 1063-1066
  5. 1978Burt, D.M. and London, D. (1978) Manganbabingtonite and ilvaite from a hedenbergite-johannsenite skarn, Aravaipa, Arizona. Geol. Soc. Am., Abs. with Prog., 10/3, 98.
