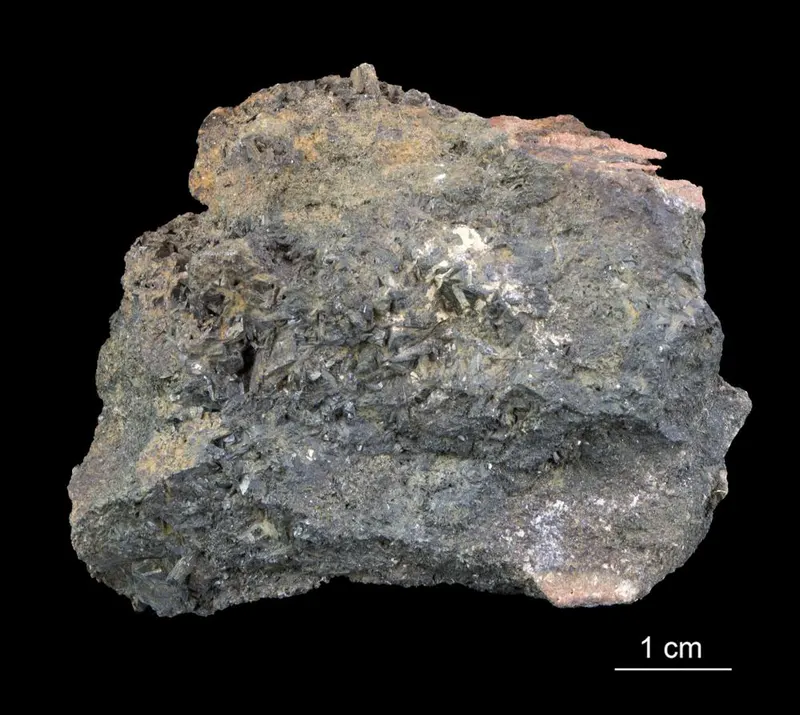

Babingtonite

Ca2Fe2+Fe3+Si5O14(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Bab
Discovered
1824

Where it forms, where it's found

Geological setting

Veins cutting granitic pegmatites and diorites, cavities and vugs in mafic volcanic rocks and gneisses, skarns.

Type locality
Arendal Iron Mines
  1. Arendal
  2. Agder
  3. Norway
140recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Opaque
Colour
Dark greenish-black
Tenacity
brittle
Cleavage
Perfect

Perfect on (001) Good on (010) and (100)

Fracture
Irregular/Uneven
Density
3.34 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50° · 2V calc = 76°
Refractive index
1.7 – 1.725
Surface relief
High
Principal indices
nα 1.700 · nβ 1.710 · nγ 1.725
Pleochroism
Visible

X= deep green Y= lilac-brown Z= pale to deep brown

Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.50(1) Å · b = 12.18(1) Å · c = 6.68(1) Å
Cell angles
α = 86.3 ° · β = 93.59 ° · γ = 112.19 °
Ratio a:b:c
1 : 1.624 : 0.891
Z
2
Morphology

Stubby, prismatic striated crystals

Epitaxy

Hedenbergite whiskers epitaxial on babingtonite (Nagashima and Nishio-Hamane, 2018). Platy crystals of scandiobabingtonite forming a thin rim around green-black prismatic crystals of babingtonite at <l id=2103>Seula Mine, Italy</l> (Orlandi et al. 1998).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
41.86%
14SiSiliconSilicon528.085140.425
24.50%
26FeIronIron255.845111.690
19.48%
20CaCalciumCalcium240.07880.156
13.98%
1HHydrogenHydrogen11.0081.008
0.18%
Total573.264100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mg
  • Na

In other languages

French
Babingtonite
German
Babingtonit
Spanish
Babingtonita
Italian
Babingtonite
Japanese
バビントナイト
Chinese
硅铁辉石
Russian
Бабингтонит

Classification

Strunz
10th ed.

9.DK.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.05BabingtoniteSpecies
Dana
8th ed.

65.04.01.02

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.04Single-Width Unbranched Chains, W=1 with chains P=5Type
  • 65.04.01Rhodonite groupGroup
  • 65.04.01.02BabingtoniteSpecies
CIM

14.18.38

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.38BabingtoniteSpecies

Group, growth & confusion

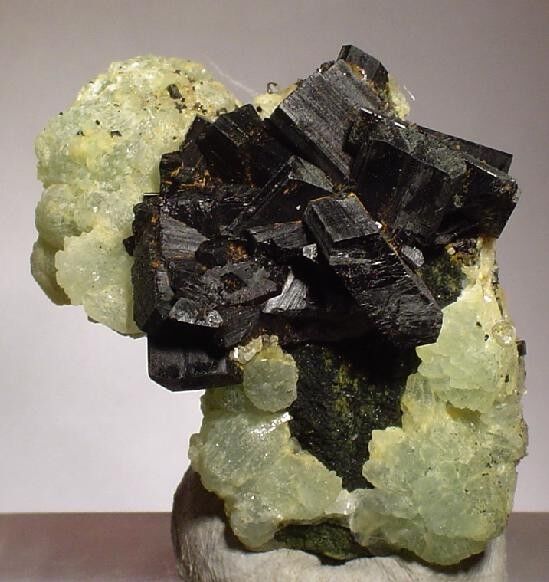

In the same group
2 members
Often grow together
7 minerals

Literature, links & citation

Citations
  1. 1824Lévy, M. (1824) On a New Mineral Substance. Annals of Philosophy, S. 2 Vol. 7 (4) 275-277
  2. 1824Children, J. G. (1824) Examination of Babingtonite by the Blowpipe. Annals of Philosophy, S. 2 Vol. 7 (4) 277-278
  3. 1845Thomson, R.D. (1845) XIX. Examination of Babingtonite. The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science, Series 3: 27(178): 123-125.
  4. 1902Palache, C., Fraprie, F.R. (1902) Babingtonite from Somerville, Mass. Proceedings of the American Academy of Arts and Sciences: 38(11): 383-391.
  5. 1902Palache, C., Fraprie, F.R. (1902) Babingtonite from Athol, Mass. Proceedings of the American Academy of Arts and Sciences: 38(11): 391-393.
