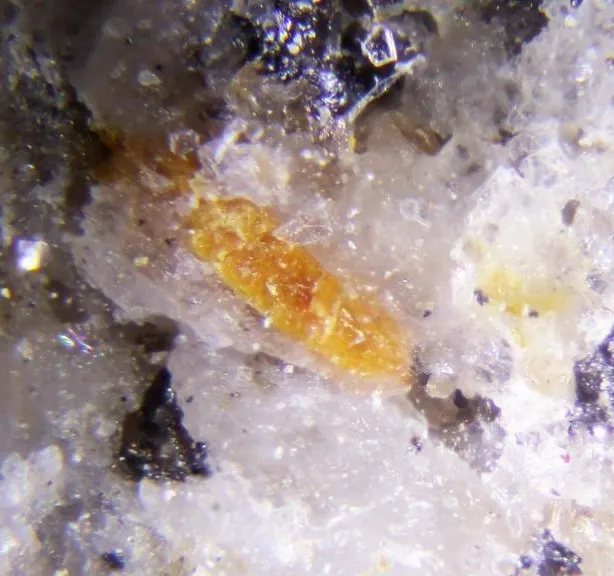

Manganberzeliite

(NaCa2)Mn2+2(AsO4)3
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mbzl
Also known as
  • Mangan-Berzeliit
  • Manganberzeliiet
  • Manganberzelit
  • +6 more

Where it forms, where it's found

Geological setting

Metamorphosed Mn deposit.

Metamorphosed Mn deposits.

Type locality
Sjögruvan
  1. Grythyttan
  2. Hällefors
  3. Örebro County
  4. Sweden

59.6685°, 14.6079°

31recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Yellow-orange · yellowish red · colorless to orange in transmitted light.

Depth of red tint increases with increase in the Mn content.

Streak
White to orange
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
4.28 g/cm³

Optical

Optical type
Isotropic
Surface relief
High
Principal indices
n 1.770 – 1.781
Birefringence
Exhibits weak anomalous birefringence at times.
Pleochroism
Non-pleochroic
UV response
Not fluorescent.
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation
Single index
n = 1.776

Crystallography

Crystal system
Isometric
Space group
Ia3d
Cell parameters
a = 12.52 Å
Morphology

Crystals very rare, as trapezohedrons with small modifying faces. Commonly massive or as rounded grains.

Comment

Nagashima & Armbruster (2012) give, for two crystals from different occurrences: 12.4829(1) and 12.4929(2) Å.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic374.922224.766
35.69%
8OOxygenOxygen1215.999191.988
30.48%
25MnManganeseManganese254.938109.876
17.45%
20CaCalciumCalcium240.07880.156
12.73%
11NaSodiumSodium122.99022.990
3.65%
Total629.776100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Mangan-Berzeliit
  • Manganberzeliiet
  • Manganberzelit
  • Manganoberzeliita
  • Manganoberzeliite
  • Manganoberzelit
  • Mn-Berzeliite
  • Pyrrharsenite
  • Pyrrhoarsénite

In other languages

German
Manganberzeliit
Italian
manganberzeliite · pyrrhoarsenite
Chinese
锰黄砷榴石

Classification

Strunz
10th ed.

8.AC.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.APhosphates, etc. without additional anions, without H2ODivision
  • 8.ACWith medium-sized and large cationsGroup
  • 8.AC.25ManganberzeliiteSpecies
Dana
8th ed.

38.02.01.02

  • 38Anhydrous Normal Phosphates, Arsenates, and VanadatesClass
  • 38.02(AB)5(XO4)3Type
  • 38.02.01Berzeliite GroupGroup
  • 38.02.01.02ManganberzeliiteSpecies
CIM

20.8.18

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.8Arsenates of MnGroup
  • 20.8.18ManganberzeliiteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. Zeitschrift für Kristallographie: 90: 44-50 (berzeliite).
  2. 1886Igelström, Lars Johan (1886) Pyrrhoarsénite, nouveau minéral de Sjœgrufvan, paroisse de Grythyttan, gouvernement d'Œrebro, Suède. Bulletin de Minéralogie, 9 (7) 218-220 doi:10.3406/bulmi.1886.2015DOI: 10.3406/bulmi.1886.2015
  3. 1887Högbom, A. G. (1887) Mineralanalyser. Geologiska Föreningens i Stockholm Förhandlinger: 9: 397-398
  4. 1893Igelström (1893) Mineralogiska meddelanden. Geologiska Föreningens i Stockholm Förhandlinger. 15: 471-472 (as Chlorarsenian ?).
  5. 1894Igelström, L. J. (1894) XXXIX. Mineralogische notizen. 2. Pyrrhoarsenit. Zeitschrift für Krystallographie und Mineralogie, 23: 590-593 (as Mangan-berzeliit).
