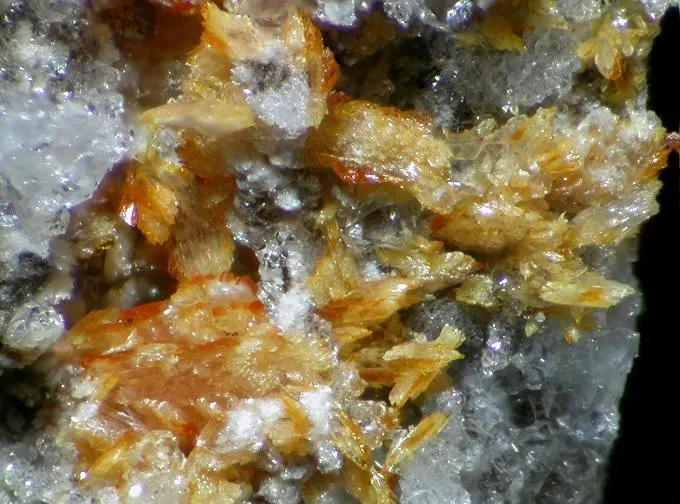

Marsturite

NaCaMn2+3Si5O14(OH)
IMA status
  • Approved
IMA symbol
Msr
Discovered
1978
Also known as
  • IMA1977-047
  • Marsturiet

Where it forms, where it's found

Geological setting

As a secondary mineral in cavities in fractures traversing massive -franklinite-willemite-zincite ore in a Precambrian Zn-Mn-Fe orebody hosted in the Franklin marble.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

7recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Tan · white to very light pink
Cleavage
Imperfect/Fair

(100) and (001)

Density
3.46 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60° · 2V calc = 58°
Refractive index
1.686 – 1.708
Surface relief
High
Principal indices
nα 1.686 · nβ 1.691 · nγ 1.708
Dispersion
r > v weak
UV response
None.
Michel-Lévy diagramhighlighted lineδ = 0.0220
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]220 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation220 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.70 Å · b = 12.03 Å · c = 6.78 Å
Cell angles
α = 85.26 ° · β = 94.1 ° · γ = 111.04 °
Ratio a:b:c
1 : 1.562 : 0.881
Epitaxy

Marsturite very frequently occurs grown epitaxially on bladed rhodonite crystals (Franklin, NJ).

Type-locality form

euhedral, prismatic crystals up to 0.5 mm in size

Comment

Nagashima et al. (2014) give 7.697(2), 11.720(2), 6.771(1) Å, 92.40(3), 94.41(3), 106.83(3), V = 581.9(6) Å3 for a sample from the Molinello mine.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
39.39%
25MnManganeseManganese354.938164.814
27.05%
14SiSiliconSilicon528.085140.425
23.05%
20CaCalciumCalcium140.07840.078
6.58%
11NaSodiumSodium122.99022.990
3.77%
1HHydrogenHydrogen11.0081.008
0.16%
Total609.300100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg

Synonyms

  • IMA1977-047
  • Marsturiet

In other languages

German
IMA 1977-047 · Marsturit
Italian
Marsturite

Classification

Strunz
10th ed.

9.DK.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.05MarsturiteSpecies
Dana
8th ed.

65.04.01.06

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.04Single-Width Unbranched Chains, W=1 with chains P=5Type
  • 65.04.01Rhodonite groupGroup
  • 65.04.01.06MarsturiteSpecies
CIM

14.18.29

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.29MarsturiteSpecies

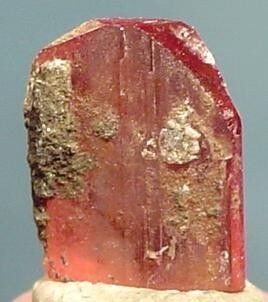

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1978Peacor, Donald R., Dunn, Pete J., Sturman, B. Darko (1978) Marsturite, Mn3CaNaHSi5O15, a new mineral of the nambulite group from Franklin, New Jersey. American Mineralogist, 63 (11-12) 1187-1189
  2. 1986Leavens, Peter B., Dunn, Pete J. (1986) Marsturite Epitaxial on Rhodonite from Franklin, New Jersey. The Mineralogical Record, 17 (2) 123-125
  3. 1990American Mineralogist (1990): 75: 413.
  4. 1995Dunn, P.J. (1995): Pt3: 440.
  5. 2001(2001) Marsturite. Handbook of Mineralogy. Mineralogical Society of America
