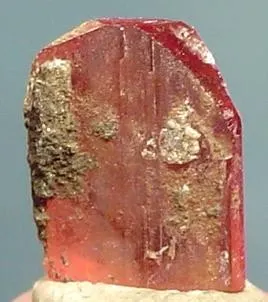

Nambulite

LiMn2+4Si5O14(OH)
IMA status
  • Approved
IMA symbol
Nbl
Discovered
1972
Also known as
  • IMA1971-032
  • Nambuliet

Where it forms, where it's found

Type locality
Funakozawa mine
  1. Ono
  2. Hirono
  3. Kunohe-gun
  4. Iwate Prefecture
  5. Japan
14recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Reddish-brown to orange · orange-yellow
Streak
Pale yellow
Cleavage
Perfect

(001) perfect; (010), (100) distinct

Density
3.53 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 30° · 2V calc = 44°
Refractive index
1.707 – 1.73
Surface relief
High
Principal indices
nα 1.707 · nβ 1.71 · nγ 1.73
Dispersion
r > v weak
Extinction
X' ∧ c = 19° on (010).
Michel-Lévy diagramhighlighted lineδ = 0.0230
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]230 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation230 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Cell parameters
a = 7.5391(2) Å · b = 11.7475(3) Å · c = 6.7137(2) Å
Cell angles
α = 93.024(2) ° · β = 95.147(2) ° · γ = 106.266(2) °
Ratio a:b:c
1 : 1.558 : 0.891
Unit cell volume
566.61 ų
Comment

Data from Nagashima et al. (2014) for a sample from the Fianel mine; for a sample from the Gozaisho mine, they give: 7.5372(1), 11.7267(1), 6.7078(1) Å, 93.057(1), 95.147(1), 106.240(1)°, V = 565.02(2) Å3. Original data: 7.62, 11.76, 6.73 Å, 92.77, 95.08, 106.87°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
39.46%
25MnManganeseManganese454.938219.752
36.14%
14SiSiliconSilicon528.085140.425
23.09%
3LiLithiumLithium16.9406.940
1.14%
1HHydrogenHydrogen11.0081.008
0.17%
Total608.110100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Fe
  • Mg
  • Ca
  • K
  • H2O
  • C
  • P

Synonyms

  • IMA1971-032
  • Nambuliet

In other languages

French
Nambulite
German
IMA 1971-032 · Nambulit
Spanish
Nambulita
Italian
Nambulite
Japanese
南部石

Classification

Strunz
10th ed.

9.DK.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DK.05NambuliteSpecies
Dana
8th ed.

65.04.01.04

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.04Single-Width Unbranched Chains, W=1 with chains P=5Type
  • 65.04.01Rhodonite groupGroup
  • 65.04.01.04NambuliteSpecies
CIM

14.18.1

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.1NambuliteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1972YOSHII, M., AOKI, Y., MAEDA, K. (1972) Nambulite, a new lithium- and sodium-bearing manganese silicate from the Funakozawa mine, northeastern Japan. Mineralogical Journal, 7 (1) 29-44 doi:10.2465/minerj1953.7.29 DOI: 10.2465/minerj1953.7.29
  2. 1973Fleischer, Michael (1973) New mineral names. American Mineralogist, 58 (11-12) 1111-1115
  3. 1975Narita, H., Koto, K., Morimoto, N., Yoshii, M. (1975) The crystal structure of nambulite (Li,Na)Mn4Si5O14(OH) Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 31 (10) 2422-2426 doi:10.1107/s056774087500773xDOI: 10.1107/s056774087500773x
  4. 1978Von Knorring, O., Sahama, Th. G., Törnroos, R. (1978) Second find of nambulite. Neues Jahrbuch für Mineralogie - Monatshefte, 1978. 346-348
  5. 1983Schneider, G., Urban, H. (1983) Ein neues Vorkommen von Nambulit, ein seltenes Lithium- und Natriumhaltiges Mangansilikat vom Urucum-Distrikt, Brasilien. Fortschritte der Mineralogie: 61(1): 195-196.
