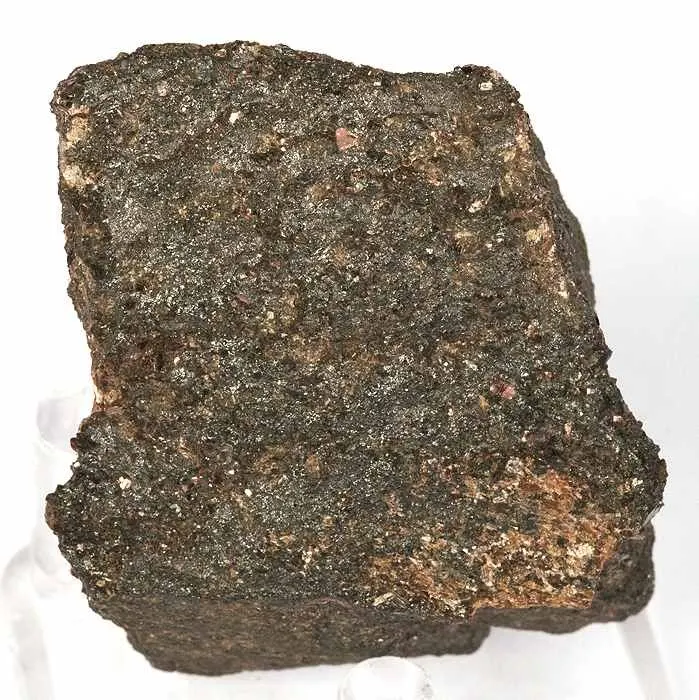

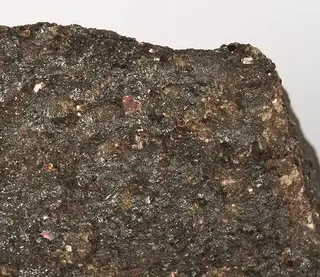

Melanotekite

Pb2Fe3+2O2(Si2O7)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mtk
Discovered
1880
Also known as
  • Melanotecit
  • Melanotecita
  • Melanotecite
  • +1 more

Where it forms, where it's found

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

22recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Black · dark gray · blackish green
Streak
Grayish-black
Tenacity
brittle
Cleavage
Very Good

Two cleavages are known, but without reported miller indices.

Density
5.73 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
2.12 – 2.31
Surface relief
Very high
Principal indices
nα 2.12 · nβ 2.17 · nγ 2.31
Birefringence
0.05
Pleochroism
Visible

Dark green to red brown. Translucent in thin section.

Dispersion
r < v
Extinction
Parallel
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
C2 2 21
Cell parameters
a = 6.93 Å · b = 10.98 Å · c = 10.06 Å
Ratio a:b:c
1 : 1.584 : 1.452
Z
4
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
57.06%
8OOxygenOxygen915.999143.991
19.83%
26FeIronIron255.845111.690
15.38%
14SiSiliconSilicon228.08556.170
7.73%
Total726.251100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mn
  • Mg

Synonyms

  • Melanotecit
  • Melanotecita
  • Melanotecite
  • Melanotekiet

In other languages

German
Melanotekit
Italian
Melanotekite

Classification

Strunz
10th ed.

9.BE.80

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.80MelanotekiteSpecies
Dana
8th ed.

56.02.10.01

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.02Si2O7 Groups and O, OH, F, and H2O with cations in [4] and/or >[4] coordinationType
  • 56.02.10Melanotekite groupGroup
  • 56.02.10.01MelanotekiteSpecies
CIM

14.13.9

  • 14Silicates not Containing AluminumClass
  • 14.13Silicates of PbGroup
  • 14.13.9MelanotekiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1967Glasser, F. P. (1967) New data on kentrolite and melanotekite: ternary phase relations in the system PbO-Fe2O3-SiO2. American Mineralogist, 52 (7-8) 1085-1093
  2. 1991Moore, Paul Brian, Gupta, Pradip K. Sen, Shen, Jinchuan, Schlemper, Elmer O. (1991) The kentrolite-melanotekite series, 4Pb2(Mn,Fe)3+2O2[Si2O7]: Chemical crystallographic relations, lone-pair splitting, and cation relation to 8URe2. American Mineralogist, 76 (7-8) 1389-1399
  3. 1994Holtstam, D., Langhof, J. (1994) Hancockite from Jakobsberg, Filipstad, Sweden: the second world occurrence. Mineralogical Magazine, 58 (390) 172-174 doi:10.1180/minmag.1994.058.390.18 DOI: 10.1180/minmag.1994.058.390.18
  4. 2001(2001) Melanotekite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2008Dorsam, G.; Liebscher, A.; Wunder, B.; Franz, G. (2008) Crystal structures of synthetic melanotekite (Pb2Fe2Si2O9), kentrolite (Pb2Mn2Si2O9), and the aluminum analogue (Pb2Al2Si2O9). American Mineralogist, 93 (4). 573-583 doi:10.2138/am.2008.2594 DOI: 10.2138/am.2008.2594
