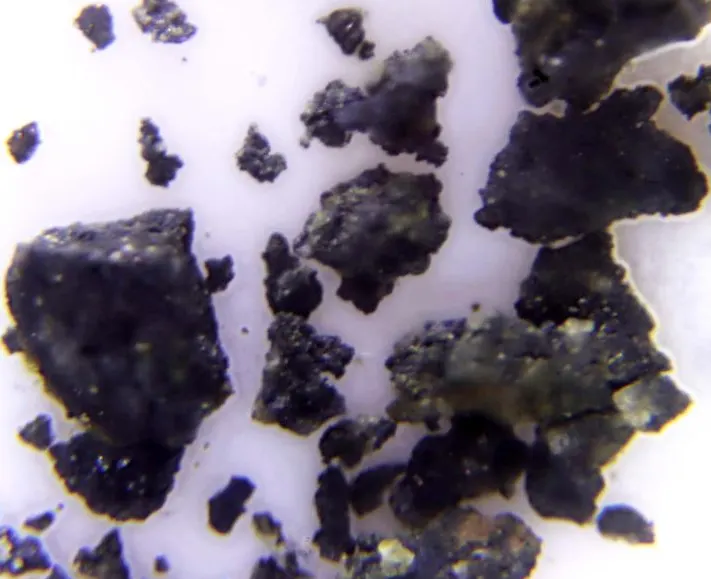

Melanovanadite

Ca(V5+,V4+)4O10 · 5H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mvd
Discovered
1921
Also known as
  • Melanovanadiet

Where it forms, where it's found

Geological setting

Altered black shale in a very rich vanadium deposit.

Colorado Plateau-type U-V deposits in Shinarump sandstone.

Type locality
Ragra Mine
  1. Huayllay District
  2. Pasco Province
  3. Pasco
  4. Peru

-10.8610°, -76.5722°

23recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black · dark reddish brown in transmitted light
Streak
Dark reddish brown
Tenacity
brittle
Cleavage
Perfect

On (010), perfect.

Density
2.55 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.73 – 1.98
Surface relief
Very high
Principal indices
nα 1.73 · nβ 1.96 · nγ 1.98
Pleochroism
Visible

X = Light reddish brown; Y = Deep reddish brown; Z = Dark reddish brown.

Dispersion
relatively strong
Extinction
Z = b; Y ∧ c = 15°.
Notes

2V = medium.

Michel-Lévy diagramhighlighted lineδ = 0.2500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2500 nm5th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2500 nm
Order5th order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.360(2) Å · b = 18.090(9) Å · c = 6.276(2) Å
Cell angles
α = 110.18(4) ° · β = 101.62(3) ° · γ = 82.86(4) °
Ratio a:b:c
1 : 2.844 : 0.987
Z
2
Morphology

Crystals prismatic, striated and elongated [001], with prominent but rounded prism zone and complexly terminated; radiating aggregates and rosettes; velvety.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
23VVanadiumVanadium850.942407.536
58.41%
8OOxygenOxygen1515.999239.985
34.40%
20CaCalciumCalcium140.07840.078
5.74%
1HHydrogenHydrogen101.00810.080
1.45%
Total697.679100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Melanovanadiet

In other languages

German
Melanovanadit
Italian
Melanovanadite

Classification

Strunz
10th ed.

4.HE.05

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HEPhyllovanadatesGroup
  • 4.HE.05MelanovanaditeSpecies
Dana
8th ed.

47.03.06.01

  • 47Vanadium OxysaltsClass
  • 47.03Hydrated Normal Vanadium OxysaltsType
  • 47.03.06— unnamed intermediate level —Group
  • 47.03.06.01MelanovanaditeSpecies
CIM

21.2.10

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.2Vanadates of Mg, Ca, Sr or BaGroup
  • 21.2.10MelanovanaditeSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1921Lindgren, W. (1921) Melanovanadite, A New Mineral from Mina Ragra, Pasco, Peru. Proceedings of the National Academy of Sciences, 7 (8) 249-251 doi:10.1073/pnas.7.8.249DOI: 10.1073/pnas.7.8.249
  2. 1922Lindgren, W., Hamilton, L.F., Palache, C. (1922) Melanovanadite, a new mineral from Mina Ragra, Pasco, Peru. Proceedings of the National Academy of Sciences: 3: 195-203.
  3. 1922Wherry, E.T. (1922) New minerals: new species. American Mineralogist: 7: 162-164.
  4. 1934Larsen, E.S.; Berman, H. (1934) The microscopic determination of the nonopaque minerals. Bulletin of the US Geological Survey Vol. 848. US Geological Survey p.1-266. doi:10.3133/b848 DOI: 10.3133/b848
  5. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
