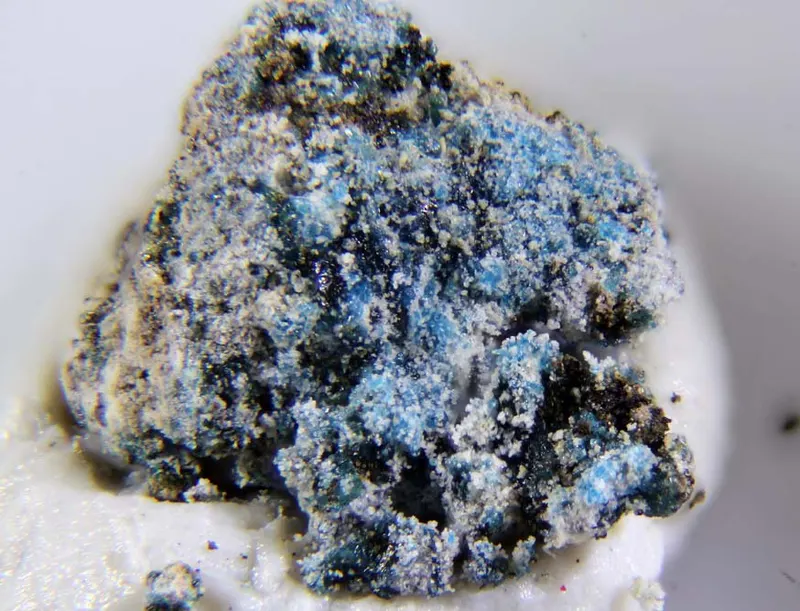

Minasragrite

V4+O(SO4) · 5H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mra
Discovered
1915
Also known as
  • Minasragriet

Where it forms, where it's found

Type locality
Ragra Mine
  1. Huayllay District
  2. Pasco Province
  3. Pasco
  4. Peru

-10.8610°, -76.5722°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Vivid cobalt-blue to pale aquamarine-blue · blue in transmitted light
Cleavage
None Observed
Density
2.03 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.513 – 1.545
Surface relief
Moderate
Principal indices
nα 1.513 · nβ 1.536 · nγ 1.545
Pleochroism
Visible

X = Deep blue Y = Blue Z = Colourless

Dispersion
strong
Notes

2V(meas.) = Medium large.

Michel-Lévy diagramhighlighted lineδ = 0.0320
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]320 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation320 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 12.902(4) Å · b = 9.716(5) Å · c = 6.976(2) Å
Cell angles
β = 110.93(3) °
Ratio a:b:c
1 : 0.753 : 0.541
Z
4
Morphology

Minute crystals forming efflorescences; granular aggregates; small mammillary masses; spherulites.

Type-locality form

Efflorescences on patronite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
63.22%
23VVanadiumVanadium150.94250.942
20.13%
16SSulfurSulfur132.06032.060
12.67%
1HHydrogenHydrogen101.00810.080
3.98%
Total253.072100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Minasragriet

In other languages

German
Minasragrit
Italian
Minasragrite

Classification

Strunz
10th ed.

7.DB.20

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DBWith only medium-sized cations; insular octahedra and finite unitsGroup
  • 7.DB.20MinasragriteSpecies
Dana
8th ed.

29.06.12.01

  • 29Hydrated Acid and Normal SulfatesClass
  • 29.06AXO4·xH2OType
  • 29.06.12Minasragrite Group (Monclinic and Triclinic)Group
  • 29.06.12.01MinasragriteSpecies
CIM

25.8.5

  • 25SulphatesClass
  • 25.8Sulphates of Sb, V, Cr and UGroup
  • 25.8.5MinasragriteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
1 mineral
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1915Schaller, Waldemar T. (1915) Four new minerals. Journal of the Washington Academy of Sciences, 5. 7
  2. 1917Schaller, W.T. (1917) Minasragrite, a hydrous sulphate of vanadium. Journal of the Washington Academy of Sciences, 7. 501-503
  3. 1921Larsen, Esper S. (1921) The microscopic determination of the nonopaque minerals. Bulletin 679. US Geological Survey doi:10.3133/b679 DOI: 10.3133/b679
  4. 1934Palache, Charles (1934) Contributions to crystallography: claudetite; minasragrite; samsonite; native selenium; indium. American Mineralogist, 19 (5) 194-205
  5. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
