Patrónite

VS4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Pat
Discovered
1906
Also known as
  • Patróniet
  • Rizopatronit
  • Rizopatronita
  • +1 more

Where it forms, where it's found

Geological setting

Ore mineral in vanadium deposit.

Type locality
Ragra Mine
  1. Huayllay District
  2. Pasco Province
  3. Pasco
  4. Peru

-10.8610°, -76.5722°

8recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Lead-gray on fresh surface · gray-black on exposed surface
Cleavage
Very Good

Pronounced columnar cleavage

Density
2.82 g/cm³

Optical

Pleochroism
Strong
Optical colour
Dark gray
Tropism
Anisotropic
Reflectance R%
(20.2, 29.9) 400, (20.0, 30.0) 420, (19.8, 30.1) 440, (19.8, 30.8) 460, (20.0, 31.9) 480, (20.1, 32.6) 500, (20.1, 32.9) 520, (20.0, 32.8) 540, (19.8, 32.4) 560, (19.6, 31.4) 580, (19.1, 30.5) 600, (18.9, 29.6) 620, (18.8, 29.6) 640, (19.0, 29.8) 660, (19.2, 30.3) 680, (19.5, 31.0) 700
Reflected-light panel
19.6 %anisotropic · dual curve
Specimen sRGB 161, 114, 62
White reference100 % reflector under same lamp
R₁ R₂
Mode
Reflected colour
Dark gray

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 12.11(1) Å · b = 10.42(1) Å · c = 6.775(5) Å
Cell angles
β = 100.8 °
Ratio a:b:c
1 : 0.860 : 0.559
Z
8

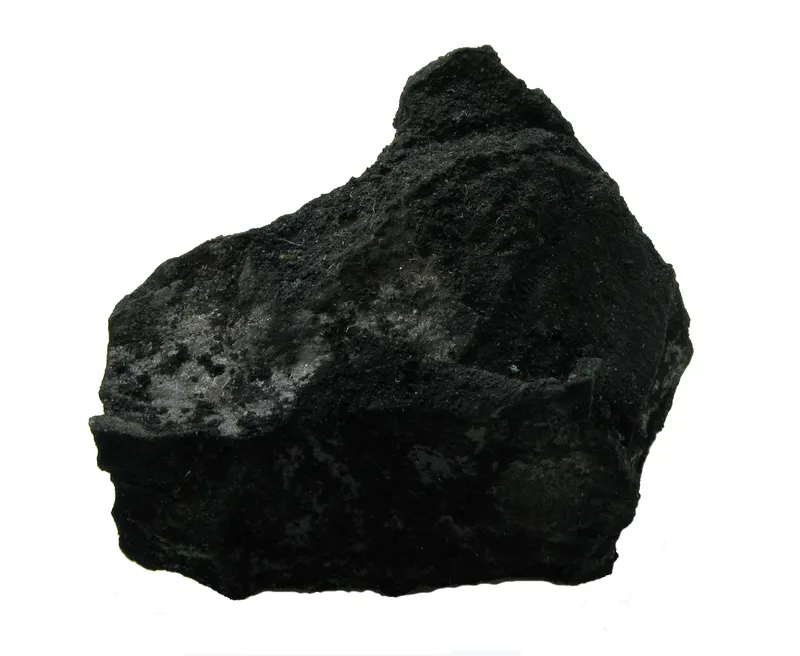

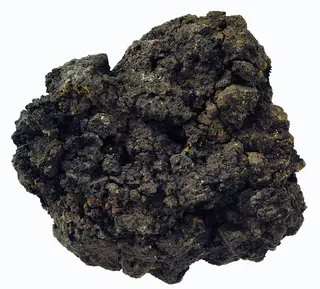

Morphology

Massive, and as aggregates of columnar crystals

Type-locality form

Massive and aggregates of columnar crystals.

Comment

Space Group: I2/c.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
16SSulfurSulfur432.060128.240
71.57%
23VVanadiumVanadium150.94250.942
28.43%
Total179.182100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Patróniet
  • Rizopatronit
  • Rizopatronita
  • Rizopatronite

In other languages

French
Patronite
German
Patrónit · Vanadiumtetrasulfid
Spanish
Patronita · Rizopatronita
Italian
Patrónite
Russian
Патронит
Arabic
باترونيت

Classification

Strunz
10th ed.

2.EC.10

  • 2Sulfides and SulfosaltsClass
  • 2.EMetal Sulfides, M: S <= 1:2Division
  • 2.ECM:S = 1:>2Group
  • 2.EC.10PatróniteSpecies
Dana
8th ed.

02.16.21.01

  • 02SulfidesClass
  • 02.16MiscellaneousType
  • 02.16.21— unnamed intermediate level —Group
  • 02.16.21.01PatróniteSpecies
CIM

3.7.1

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.7Sulphides etc. of V, As, Sb and BiGroup
  • 3.7.1PatróniteSpecies

Group, growth & confusion

Often grow together
6 minerals

Literature, links & citation

Citations
  1. 1906Hewett, F. (1906) A new occurrence of vanadium in Peru. Engineering and Mining Journal: 82: 385-385.
  2. 1906Bravo (1906) Informaciones y Memorias Soc. Eng., Lima: 8: 171.
  3. 1907Hillibrand, W.F. (1907) Vanadium sulphide, patronite, and its mineral associates from Minasragra, Peru. American Journal of Science: 24: 141-151.
  4. 1907Hillebrand, W. F. (1907) The vanadium sulphide, patronite, and its mineral associates from Minasragra, Peru. Journal Of The American Chemical Society, 29 (7). 1019-1029 doi:10.1021/ja01961a006DOI: 10.1021/ja01961a006
  5. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
