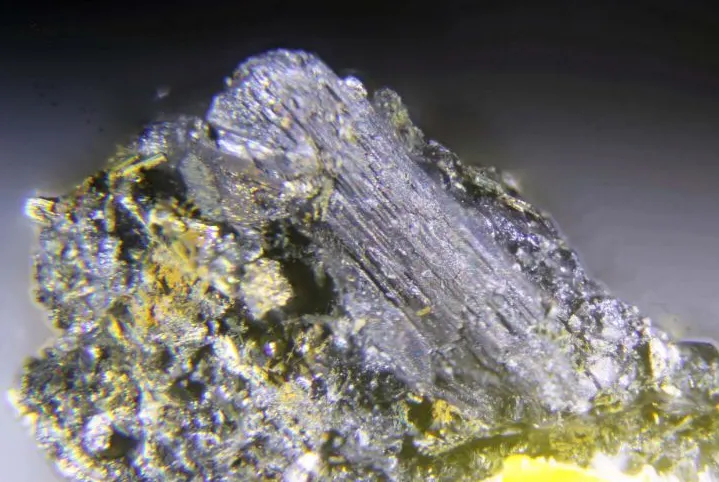

Mückeite

CuNiBiS3
IMA status
  • Approved
IMA symbol
Müc
Also known as
  • IMA1988-018
  • Mückeiet

Where it forms, where it's found

Geological setting

In dump material at a polymetallic hydrothermal deposit, topotactically relacing lapieite.

Type locality
Grüneau Mine (Grüne Au Mine
  1. Grünau Mine)
  2. Schutzbach
  3. Daaden-Herdorf
  4. Altenkirchen
  5. Rhineland-Palatinate
  6. Germany

50.7536°, 7.8984°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Light gray with an orange tint
Streak
Gray-black
Cleavage
Very Good

Very good (010), good (001)

Density
5.88 g/cm³

Optical

Pleochroism
Visible

Distinct in air and strong in oil.

Optical colour
Creamy gray to light gray with a yellow-brown tint in air, olive-tinted gray to yellow-brown in oil.
Anisotropism
Weak in air, stronger in oil
Tropism
Anisotropic
Reflectance R%
(35.7,36.4) 470, (34.1,39.0) 546, (39.8,40.2) 589, (40.9,42.3) 650
Reflected-light panel
37.6 %anisotropic · dual curve
Specimen sRGB 227, 148, 81
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Weak in air, stronger in oil
Reflected colour
Creamy gray to light gray with a yellow-brown tint in air, olive-tinted gray to yellow-brown in oil.

Crystallography

Crystal system
Orthorhombic
Space group
#44
Cell parameters
a = 7.51 Å · b = 12.55 Å · c = 4.88 Å
Ratio a:b:c
1 : 1.671 : 0.650
Z
4
Morphology

Tabular (010), elongate [100], showing (100), (010), (001), (101), and another (hk0).

Type-locality form

Subhedral to euhedral crystals up to 1 mm long.

Comment

Ranges given are: a = 7.509(2)-7.514(3), b = 12.551(2)-12.557(6), c = 4.877(1)-4.8880(2) Å.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth1208.980208.980
48.90%
16SSulfurSulfur332.06096.180
22.50%
29CuCopperCopper163.54663.546
14.87%
28NiNickelNickel158.69358.693
13.73%
Total427.399100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1988-018
  • Mückeiet

In other languages

German
IMA 1988-018 · Mückeit
Italian
Mückeite

Classification

Strunz
10th ed.

2.GA.25

  • 2Sulfides and SulfosaltsClass
  • 2.GSulfarsenites, sulfantimonites, sulfbismuthitesDivision
  • 2.GANeso-sulfarsenites, etc. without additional SGroup
  • 2.GA.25MückeiteSpecies
Dana
8th ed.

03.04.04.02

  • 03SulfosaltsClass
  • 03.04ø = 3Type
  • 03.04.04Lapieite GroupGroup
  • 03.04.04.02MückeiteSpecies
CIM

5.8.18

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.8Sulpharsenites etc. of Mn, Fe, Co and NiGroup
  • 5.8.18MückeiteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1989Schnorrer-Köhler, G., Neumann, U., Doering, T. (1989) Mückeite, CuNiS3, a new mineral from the Grüne Au mine, Schutzbach/Siegerland. Neues Jahrbuch für Mineralogie - Monatshefte, 1989. 193-200
  2. 1990Jambor, John L., Vanko, David A. (1990) New Mineral Names. American Mineralogist, 75 (5-6) 706-713
  3. 1990Bente, K., Doering, T., Edenharter, A., Kupcik, V., Steins, M., Wendschuh-Josties, M. (1990) Structure of the new mineral muckeite, BiCuNiS3. Acta Crystallographica: C46: 127-128.
  4. 1993Doering, T., Schnorrer, G. (1993) Mückeit, CuNiBiS3, und Lapieit, CuNiSbS3, zwei isotype Sulfosalze, Der Aufschluss: 44: 277-280.
  5. 2005(2005) Mückeite. Handbook of Mineralogy. Mineralogical Society of America
