Roterbärite

PdCuBiSe3
IMA status
  • Approved
IMA symbol
Rbä
IMA approved
2019
Also known as
  • Roterbäriet
  • Unnamed (Pd-Bi-Cu Selenide)

Where it forms, where it's found

Type locality
Roter Bär Mine
  1. St Andreasberg
  2. Braunlage
  3. Goslar District
  4. Lower Saxony
  5. Germany

51.7119°, 10.5267°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Transparency
Opaque
Colour
Greyish white
Streak
Grey
Tenacity
brittle
Density
7.23 g/cm³

Optical

Pleochroism
Weak

Dark cream to slightly greenish cream

Optical colour
Dark cream to slightly greenish cream
Anisotropism
Weak; pale orange brown to grey rotation tints
Internal reflections
None
Tropism
Anisotropic
Reflectance R%
(38.8,41.0) 400, (39.6,41.6) 420, (40.7,42.2) 440, (41.8,42.7) 460, (42.4,43.0) 470, (42.9,43.3) 480, (43.8,43.8) 500, (44.6,44.2) 520, (45.3,44.4) 540, (45.4,44.4) 546, (45.8,44.6) 560, (46.5,44.6) 580, (46.8,44.6) 589, (47.0,44.6) 600, (47.4,44.6) 620, (47.6,44.6) 640, (47.7,44.6) 650, (47.8,44.6) 660, (48.1,44.6) 680, (48.2,44.7) 700
Reflected-light panel
44.9 %anisotropic · dual curve
Specimen sRGB 243, 166, 86
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Weak; pale orange brown to grey rotation tints
Reflected colour
Dark cream to slightly greenish cream
Internal reflections
None

Crystallography

Crystal system
Orthorhombic
Space group
P21 21 21
Cell parameters
a = 5.00 Å · b = 7.99 Å · c = 13.59 Å
Ratio a:b:c
1 : 1.598 : 2.718
Type-locality form

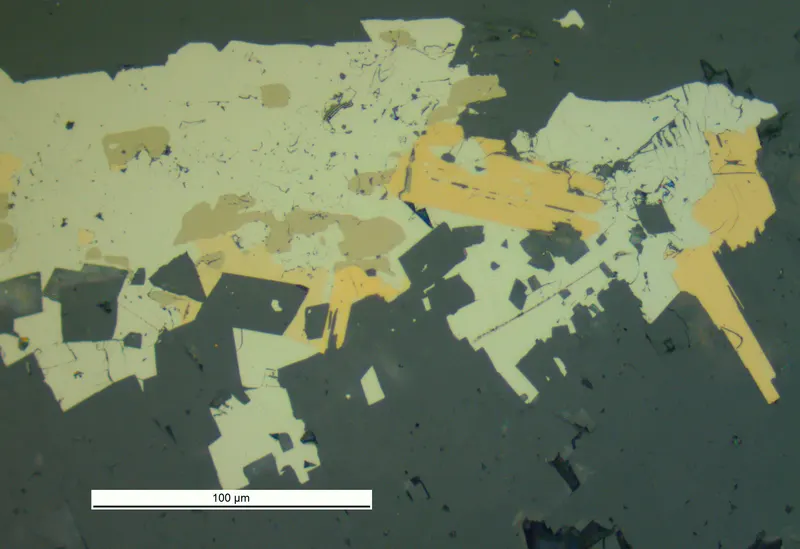

Euhedral to subhedral grains, up to 50 μm in diameter, in clausthalite.

Comment

(Bi,Sb)CuNiSsub>3 structure-type

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
34SeSeleniumSelenium378.971236.913
38.47%
83BiBismuthBismuth1208.980208.980
33.93%
46PdPalladiumPalladium1106.420106.420
17.28%
29CuCopperCopper163.54663.546
10.32%
Total615.859100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • S

Synonyms

  • Roterbäriet
  • Unnamed (Pd-Bi-Cu Selenide)

In other languages

French
Roterbärite
German
IMA 2019-043 · Roterbärit · Rtb

Classification

Strunz
10th ed.

2.GA.25

  • 2Sulfides and SulfosaltsClass
  • 2.GSulfarsenites, sulfantimonites, sulfbismuthitesDivision
  • 2.GANeso-sulfarsenites, etc. without additional SGroup
  • 2.GA.25RoterbäriteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
3 minerals

Literature, links & citation

Citations
  1. 2015Cabral, Alexandre Raphael, Ließmann, Wilfried, Lehmann, Bernd (2015) Gold and palladium minerals (including empirical PdCuBiSe3) from the former Roter Bär mine, St. Andreasberg, Harz Mountains, Germany: a result of low-temperature, oxidising fluid overprint. Mineralogy and Petrology, 109 (5) 649-657 doi:10.1007/s00710-015-0396-0DOI: 10.1007/s00710-015-0396-0
  2. 2019Ließmann, W. (2019): Roterbärit - Neu aus St. Andreasberg, Harz. Mineralien-Welt 30 (5), 89-92.
  3. 2019Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2019) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) NEWSLETTER 51. European Journal of Mineralogy, 31 (5-6) 1099-1104 doi:10.1127/ejm/2019/0031-2894DOI: 10.1127/ejm/2019/0031-2894
  4. 2020www.tu-clausthal.de (2020) https://www.tu-clausthal.de/universitaet/einrichtungen/presse-und-oeffentlichkeitsarbeit/pressemitteilungen/artikel/clausthaler-entdecken-neues-mineral-im-harz
  5. 2020Vymazalová, Anna, Cabral, Alexandre R., Laufek, František, Ließmann, Wilfried, Stanley, Chris J., Lehmann, Bernd (2020) Roterbärite, PdCuBiSe3, a new mineral species from the Roter Bär mine, Harz Mountains, Germany. Mineralogy and Petrology, 114 (5). 443-451 doi:10.1007/s00710-020-00703-1DOI: 10.1007/s00710-020-00703-1
