Neotocite

(Mn,Fe)SiO3 · H2O (?)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Neo
Discovered
1848
Also known as
  • Neotociet
  • Neotocit
  • Neotokita
  • +13 more

Where it forms, where it's found

Type locality
Erik Ers Mine
  1. Torsåker
  2. Hofors
  3. Gävleborg County
  4. Sweden

60.5294°, 16.3735°

177recorded occurrences
Source · OpenStreetMap

Varieties

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Black · dark brown to dark olive-green · dark red-brown
Streak
Dark brown to black
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal · Sub-Conchoidal
Density
2.43 g/cm³

Optical

Optical type
Isotropic
Refractive index
1.5 – 1.65
Surface relief
Moderate
Principal indices
nα 1.50 – 1.65
Birefringence
0.00
Pleochroism
Non-pleochroic
UV response
Not fluorescent in ultraviolet
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation

Crystallography

Crystal system
Amorphous
Morphology

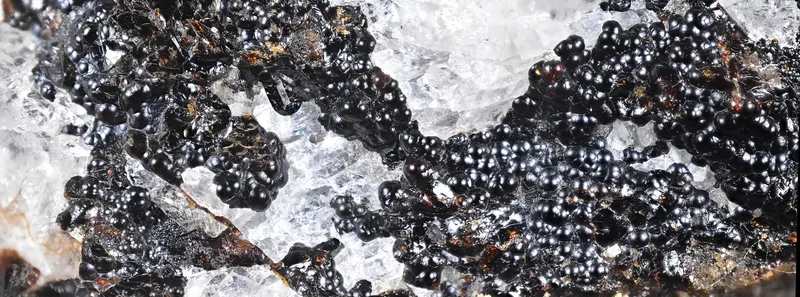

Botryoidal, also resinous brown to black masses or veinlets

Comment

Amorphous to poorly crystalline; crystal system unknown.

Chemical composition

Impurities
  • Al
  • Mg
  • Ca
  • Na
  • K
  • C

Synonyms

  • Neotociet
  • Neotocit
  • Neotokita
  • Neotokite
  • Opsimose
  • Penwithit
  • Penwithita
  • Penwithite
  • Stratopeite
  • Vittingit
  • Vittinkit
  • Vittinkita
  • Vittinkite
  • Wittingit
  • Wittingita
  • Wittingite

In other languages

German
Neotokit
Italian
neotocite

Classification

Strunz
10th ed.

9.ED.20

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EDPhyllosilicates with kaolinite layers composed of tetrahedral and octahedral netsGroup
  • 9.ED.20NeotociteSpecies
Dana
8th ed.

71.01.05.04

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.01Sheets of 6-membered rings with 1:1 layersType
  • 71.01.05— unnamed intermediate level —Group
  • 71.01.05.04NeotociteSpecies
CIM

14.18.37

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.37NeotociteSpecies

Group, growth & confusion

Often grow together
4 minerals

Literature, links & citation

Citations
  1. Brusnitsyn, A.I. and Egorov, G.S. (2023): Neotocite from Manganese Ores of the Ushkatyn-III Deposit, Central Kazakhstan. Zapiski RMO, 152(4), 47-64.
  2. Radelescu, Dan P.; Ignat, V. C. (1958): Neotocite in the manganese ores of Jakobeny, Romania. Neues Jahrbuch für Mineralogie, Monatshefte 1958, 55-58.
  3. 1849Nordenskjöld, N. (1849) in Ueber das Atomistisch-Chemische Mineral System und das Examinations-System der Mineralien, A. W. Gröndahl (Helsingfors): 1-157.
  4. 1921Pardee, J.T., Larsen, E.S., Steiger, G. (1921) Bementite and neotocite from western Washington, with conclusions as to the identity of bementite and caryopilite. Journal of the Washington Academy of Sciences: 11: 25-32.
  5. 1922Wherry, E.T. (1922) Redefinition of species. American Mineralogist: 7: 148-148.
