Nickelalumite

NiAl4(SO4)(OH)12(H2O)3
IMA status
  • Approved
IMA symbol
Nal
Discovered
1980
Also known as
  • Nickelalumiet
  • Nickelalumita

Where it forms, where it's found

Geological setting

Nickelalumite formed by hydrothermal alteration of U–V bearing carbon-rich silicified schists.

Type locality
Kara-Tangi U deposit
  1. Batken Region
  2. Kyrgyzstan
5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless to blue to pistachio-green
Streak
White
Tenacity
brittle
Cleavage
Perfect

Parallel to (001).

Fracture
Splintery
Density
2.231 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.533 – 1.542
Surface relief
Moderate
Principal indices
nα 1.542 · nγ 1.533
Pleochroism
Non-pleochroic
Dispersion
medium
UV response
Not fluorescent.
Notes

β could not be measured due to the almost negligible thickness of the flakes.

Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 10.2567(5) Å · b = 8.8815(4) Å · c = 17.0989(8) Å
Cell angles
β = 95.548(1) °
Ratio a:b:c
1 : 0.866 : 1.667
Unit cell volume
1550.3 ų
Z
4
Parting
None
Type-locality form

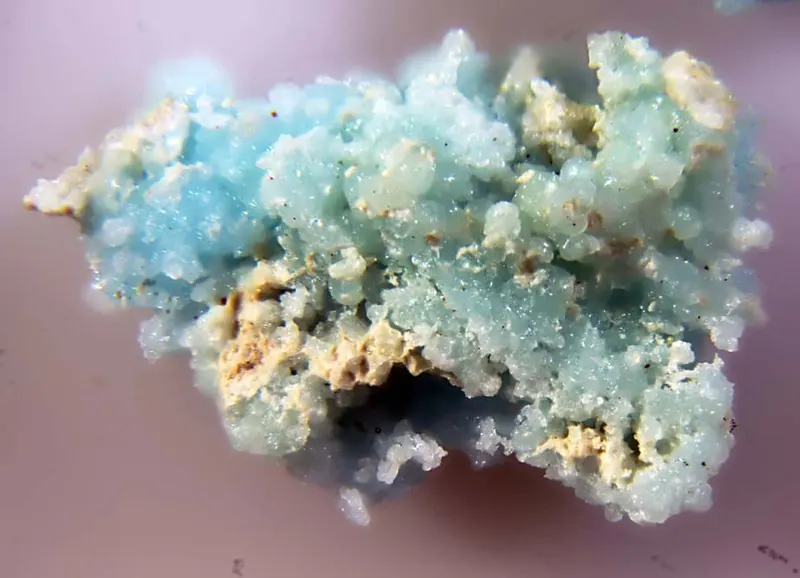

Pale-blue to greenish crusts of radiating lamellar aggregates of crystals up to 1.5 mm on the surface of carbon-rich siliceous schist.

Comment

Space group: P21/n

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1915.999303.981
58.37%
13AlAluminiumAluminium426.982107.928
20.72%
28NiNickelNickel158.69358.693
11.27%
16SSulfurSulfur132.06032.060
6.16%
1HHydrogenHydrogen181.00818.144
3.48%
Total520.806100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Nickelalumiet
  • Nickelalumita

In other languages

German
IMA 2022-071 · Nickelalumit
Italian
Nickelallumite · Nickelalumite

Classification

Strunz
10th ed.

7.DD.75

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.75NickelalumiteSpecies
Dana
8th ed.

31.03.01.02

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.03(AB)5(XO4)Zq·xH2OType
  • 31.03.01— unnamed intermediate level —Group
  • 31.03.01.02NickelalumiteSpecies
CIM

13.13

  • 13NitratesClass
  • 13.13— unnamed intermediate level —Group
  • 13.13NickelalumiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1980Martini, J.E.J. (1980) Mbobomkulite, hydrombobomkulite, and nickelalumite, new minerals from Mbobo Mkulu cave, eastern Transvaal. Annals of the Geological Survey of South Africa: 14(2): 1-110 (see: American Mineralogist (1982): 67: 415-416).
  2. 1982American Mineralogist (1982): 67: 416.
  3. 2004Karpenko, Vladimir Yu.; Agakhanov, Atali A.; Pautov, Leonid A.; Dikaya, Tamara V.; Bekenova, G.K. (2004) New occurrence of nickelalumite on Kara-Chagyr, South Kirgizia. New Data on Minerals, 39. 32-39
  4. 2005Uvarova, Y. A., Sokolova, E., Hawthorne, F. C., Karpenko, V. V., Agakhanov, A. A., Pautov, L. A. (2005) The crystal chemistry of the "nickelalumite"–group minerals. The Canadian Mineralogist, 43 (5) 1511-1519 doi:10.2113/gscanmin.43.5.1511 DOI: 10.2113/gscanmin.43.5.1511
  5. 2022Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 70. European Journal of Mineralogy, 34 (6) 591-601 doi:10.5194/ejm-34-591-2022 DOI: 10.5194/ejm-34-591-2022
