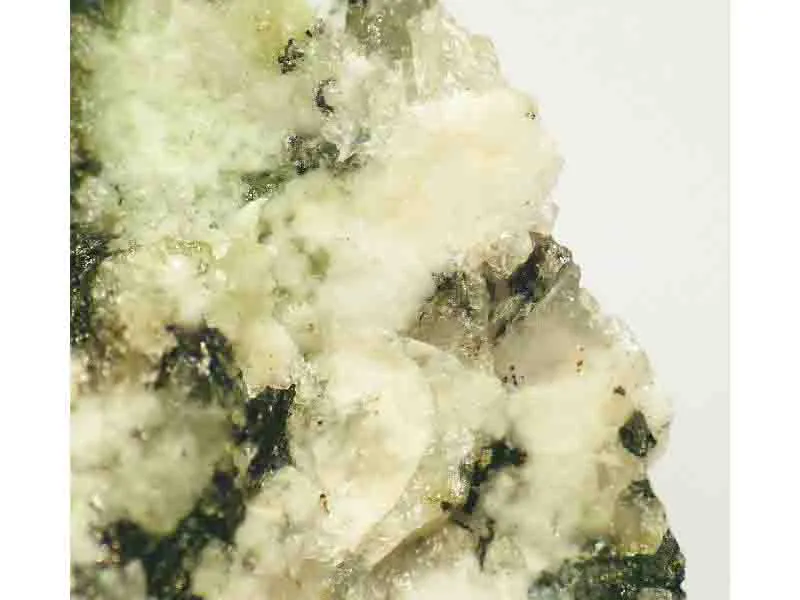

Nordenskiöldine

CaSn(BO3)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Nsk
Discovered
1887
Also known as
  • Nordenskjöldin

Where it forms, where it's found

Geological setting

Alkaline pegmatite

In marble in an ore pipe (Arandis).

Type locality
Nordenskiöldine type locality
  1. Store Arøya (Arøy)
  2. Larvik Commune
  3. Vestfold
  4. Norway
15recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · yellow · colourless in transmitted light
Streak
White
Tenacity
brittle
Cleavage
Perfect

On (0001) perfect; on (1011) indistinct (observed in thin sections).

Fracture
Conchoidal
Density
4.09 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.66 – 1.778
Surface relief
High
Principal indices
nω 1.774 – 1.778 · nε 1.660 – 1.661
UV response
Nordenskiöldine from MW Claims fluoresces bright pale yellow in SW and is virtually non-fluorescent in LW.
Michel-Lévy diagramhighlighted lineδ = 0.1155
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1155 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1155 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#80
Cell parameters
a = 4.858(1) Å · c = 16.080(2) Å
Z
3
Morphology

Crystals thin to thick tabular (0001). Also thick, lens-like crystals; subparallel growths.

Epitaxy

Calcite and siderite overgrowths on nordenskiöldine, with parallel axes. Cassiterite, with [001] parallel to nordenskiöldine (0001) [101_1] or [112_0].

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
50SnTinTin1118.710118.710
42.95%
8OOxygenOxygen615.99995.994
34.73%
20CaCalciumCalcium140.07840.078
14.50%
5BBoronBoron210.81021.620
7.82%
Total276.402100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Nordenskjöldin

In other languages

French
Nordenskiöldine
German
Nordenskiöldin
Italian
Nordenskioldine · Nördenskiöldite

Classification

Strunz
10th ed.

6.AA.15

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.AABO3, without additional anions; 1(D).Group
  • 6.AA.15NordenskiöldineSpecies
Dana
8th ed.

24.03.03.01

  • 24Anhydrous BoratesClass
  • 24.03AmBn[XO3]pType
  • 24.03.03— unnamed intermediate level —Group
  • 24.03.03.01NordenskiöldineSpecies
CIM

9.6.3

  • 9BoratesClass
  • 9.6Borates of Ti, Sn and TaGroup
  • 9.6.3NordenskiöldineSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1887Brögger, W. C. (1887) Forelöbig meddelelse om mineralerne på de sydnorske augit- og nefelinsyeniters grovkornige gange. Geologiska Föreningen i Stockholm Förhandlingar, 9 (4) 247-274 doi:10.1080/11035898709444657DOI: 10.1080/11035898709444657
  2. 1890Brögger, W.C. (1890) Zeitschrift für Kristallographie, Mineralogie und Petrographie, Leipzig: 16: 61.
  3. 1934Ramdohr (1934) Neues Jahrbuch für Mineralogie, Geologie und Paleontologie, Beil.-Bd., Heidelberg, Stuttgart: 68: 288.
  4. 1934Ehrenberg and Ramdohr (1934) Neues Jahrbuch für Mineralogie, Geologie und Paleontologie, Beil.-Bd., Heidelberg, Stuttgart: 69: 1.
  5. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
