Obradovicite-KCu

[K2(H2O)17Cu(H2O)6][Mo8As2Fe3+3O34(OH)3]
IMA status
  • Approved
IMA symbol
Obr-KCu
Also known as
  • IMA1978-061
  • Obradoviciet-KCu
  • Obradovicit
  • +1 more

Where it forms, where it's found

Geological setting

on brecciated, slightly leached, vein quartz or on crusts of earthy tan jarosite

Type locality
Chuquicamata Mine
  1. Chuquicamata District
  2. Calama
  3. El Loa Province
  4. Antofagasta
  5. Chile

-22.2894°, -68.9011°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Pea-green (RHS 149A)
Streak
Pale pea-green (RHS 149C)
Cleavage
None Observed
Density
3.55 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 81° · 2V calc = 75.7°
Refractive index
1.79 – 1.811
Surface relief
Very high
Principal indices
nα 1.790 · nβ 1.798 · nγ 1.811
Pleochroism
Weak

Weak yellow pleochroism, Z > X = Y

Dispersion
r> v, extreme
UV response
does not fluoresce under SW
Michel-Lévy diagramhighlighted lineδ = 0.0210
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]210 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation210 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#70
Cell parameters
a = 15.046 Å · b = 14.848 Å · c = 11.056 Å
Ratio a:b:c
1 : 0.987 : 0.735
Z
4
Morphology

a(100), m (110), and d(011)

Twinning

None observed.

Type-locality form

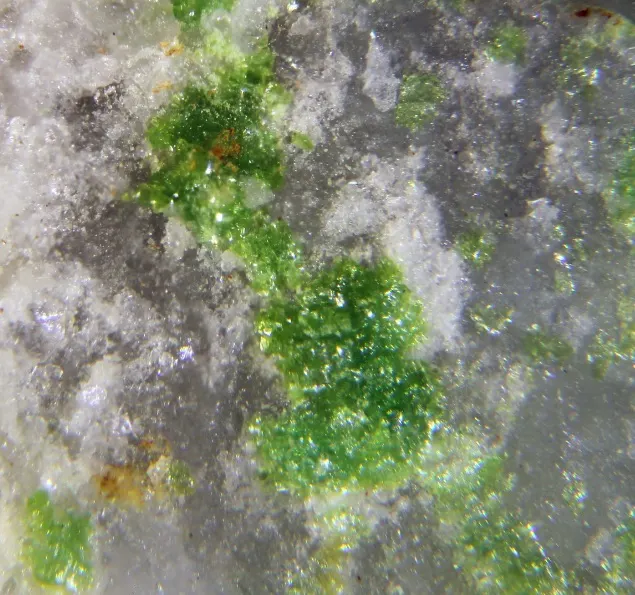

dense clusters of platy crystals to 0.1 mm

Comment

Pnmb

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6015.999959.940
42.93%
42MoMolybdenumMolybdenum895.950767.600
34.33%
26FeIronIron355.845167.535
7.49%
33AsArsenicArsenic274.922149.844
6.70%
19KPotassiumPotassium239.09878.196
3.50%
29CuCopperCopper163.54663.546
2.84%
1HHydrogenHydrogen491.00849.392
2.21%
Total2236.053100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-061
  • Obradoviciet-KCu
  • Obradovicit
  • Obradovicita

In other languages

German
IMA 1978-061 · Obradovicit-KCu
Italian
Obradovicite · Obradovicite-KCu

Classification

Strunz
10th ed.

7.GB.40

  • 7SulfatesClass
  • 7.GMolybdates, Wolframates and NiobatesDivision
  • 7.GBWith additional anions and/or H2OGroup
  • 7.GB.40Obradovicite-KCuSpecies
Dana
8th ed.

49.04.02.01

  • 49Hydrated Molybdates and TungstatesClass
  • 49.04Compound Molybdates and TungstatesType
  • 49.04.02— unnamed intermediate level —Group
  • 49.04.02.01Obradovicite-KCuSpecies
CIM

22.5.10

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.5Phosphates, arsenates or vanadates with chromate, molybdate, niobate or tantalateGroup
  • 22.5.10Obradovicite-KCuSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1986Finney, J. J., Williams, S. A., Hamilton, R. D. (1986) Obradovicite, a new complex arsenate-molybdate from Chuquicamata, Chile. Mineralogical Magazine, 50 (356) 283-284 doi:10.1180/minmag.1986.050.356.12 DOI: 10.1180/minmag.1986.050.356.12
  2. 1987Hawthorne, Frank C., Jambor, John L., Bladh, Kenneth W., Burke, Ernst A. J., Grice, Joel D., Phillips, Don, Roberts, Andrew C., Schedler, Robert A., E., James (1987) New mineral names. American Mineralogist, 72 (9-10) 1023-1028
  3. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) New minerals and nomenclature modifications approved in 2010, CNMNC Newsletter No 7. Mineralogical Magazine, 75 (1) 27-31 doi:10.1180/minmag.2011.075.1.27 DOI: 10.1180/minmag.2011.075.1.27
  4. 2012Kampf, A. R., Mills, S. J., Rumsey, M. S., Dini, M., Birch, W. D., Spratt, J., Pluth, J. J., Steele, I. M., Jenkins, R. A., Pinch, W. W. (2012) The heteropolymolybdate family: structural relations, nomenclature scheme and new species. Mineralogical Magazine, 76 (5) 1175-1207 doi:10.1180/minmag.2012.076.5.09DOI: 10.1180/minmag.2012.076.5.09
  5. 2021(2021) Obradovicite-KCu. Handbook of Mineralogy. Mineralogical Society of America
