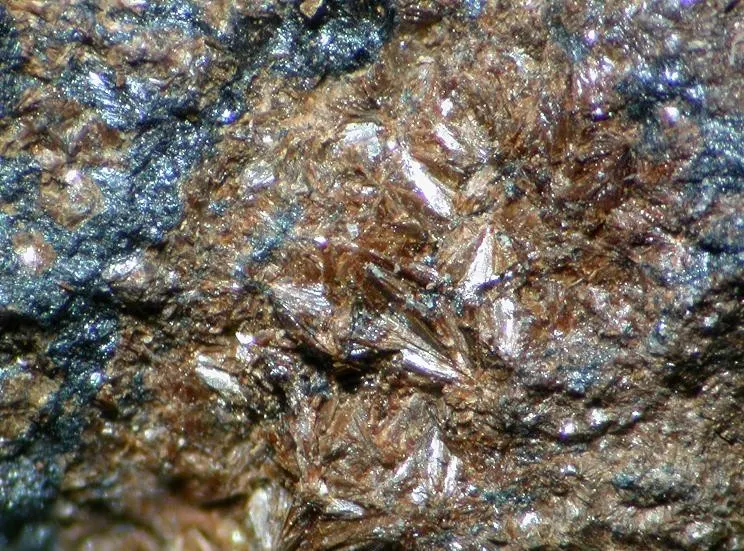

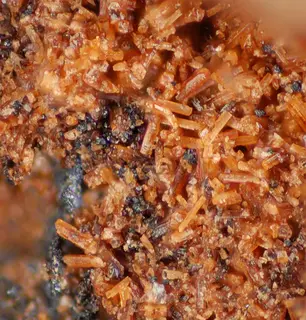

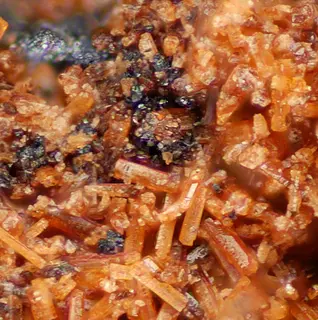

Orientite

Ca8Mn3+10(SiO4)3(Si3O10)3(OH)10 · 4H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Orn
Discovered
1921
Also known as
  • Orientiet

Where it forms, where it's found

Type locality
Firmeza District
  1. Santiago de Cuba Province
  2. Cuba
10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Light reddish brown · chocolate-brown
Streak
Brown
Tenacity
brittle
Cleavage
Imperfect/Fair

Perfect to imperfect on (001) may be parting

Density
3.05 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 67 – 83° · 2V calc = 90°
Refractive index
1.756 – 1.81
Surface relief
High
Principal indices
nα 1.756 – 1.765 · nβ 1.777 – 1.79 · nγ 1.794 – 1.81
Pleochroism
Visible

X = red-brown to brownish yellow; Y = yellow to reddish brown; Z = brownish yellow to deep brownish red

Dispersion
relatively strong
Michel-Lévy diagramhighlighted lineδ = 0.0415
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]415 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation415 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 9.074(4) Å · b = 6.121(2) Å · c = 19.130(7) Å
Ratio a:b:c
1 : 0.675 : 2.108
Z
4
Comment

Space group: Ccmm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen5615.999895.944
42.24%
25MnManganeseManganese1054.938549.380
25.90%
14SiSiliconSilicon1228.085337.020
15.89%
20CaCalciumCalcium840.078320.624
15.12%
1HHydrogenHydrogen181.00818.144
0.85%
Total2121.112100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • V
  • Cu
  • Mg
  • K
  • H2O
  • S

Synonyms

  • Orientiet

In other languages

German
Orientit
Spanish
Orientita
Italian
Orientite

Classification

Strunz
10th ed.

9.BJ.05

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BJSorosilicates with Si3O10, Si4O11, etc. anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BJ.05OrientiteSpecies
Dana
8th ed.

58.03.01.02

  • 58Sorosilicates Insular, Mixed, Single, and Larger Tetrahedral GroupsClass
  • 58.03Insular, Mixed, Single, and Larger Tetrahedral Groups with insular single and triple groups (n=1, 3)Type
  • 58.03.01Ardennite groupGroup
  • 58.03.01.02OrientiteSpecies
CIM

14.18.22

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.22OrientiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1921Hewett, D.F. and E.V. Shannon (1921) Orientite, a new hydrous silicate of manganese and calcium from Cuba. American Journal of Science: 1: 491-506.
  2. 1961Sclar, Charles B. (1961) Optical crystallography of orientite from Oriente Province, Cuba. American Mineralogist, 46 (1-2) 226-232
  3. 1979Moore, Paul B., Ito, Jun, Steele, Ian M. (1979) MacFallite and orientite: calcium manganese (III) silicates from upper Michigan. Mineralogical Magazine, 43 (327) 325-331 doi:10.1180/minmag.1979.043.327.02 DOI: 10.1180/minmag.1979.043.327.02
  4. 1984Mellini, M., Merlino, S., Pasero, M. (1984) Average structure and faulted sequences in orientite. Acta Crystallographica Section A Foundations of Crystallography, 40 (a1). C255 doi:10.1107/s0108767384092357DOI: 10.1107/s0108767384092357
  5. 1985Moore, Paul B., Shen, Jinchuan, Araki, Takaharu (1985) Crystal chemistry of the 2∞[M3+2φ2(TO4)2] sheet: structural principles and crystal structures of ruizite, macfallite and orientite. American Mineralogist, 70 (1-2) 171-181
