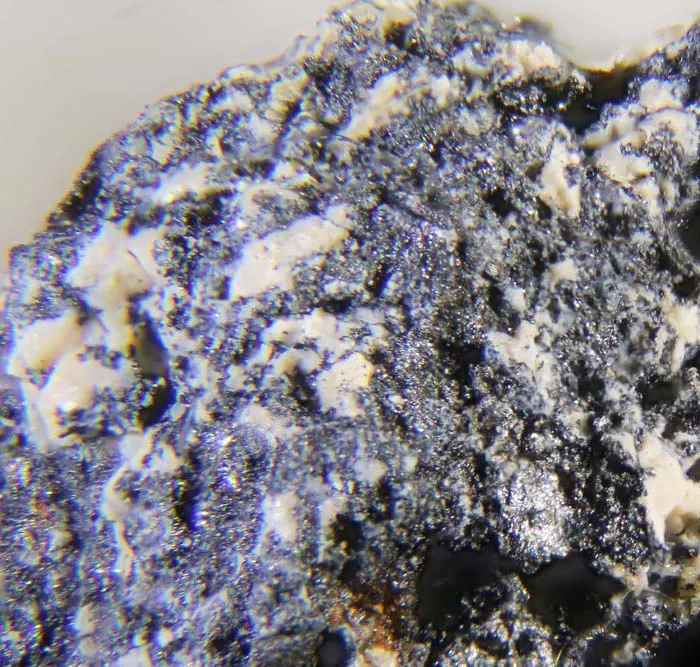

Neltnerite

CaMn3+6O8(SiO4)
IMA status
  • Approved
IMA symbol
Nel
Discovered
1979
IMA approved
1979
Also known as
  • IMA1979-059
  • Neltneriet

Where it forms, where it's found

Type locality
Tachgagalt Mine
  1. Tansifte Caïdat
  2. Agdz Cercle
  3. Zagora Province
  4. Drâa-Tafilalet Region
  5. Morocco

30.7833°, -6.8500°

11recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Black
Tenacity
brittle
Cleavage
Poor/Indistinct
Fracture
Sub-Conchoidal
Density
4.63 g/cm³

Optical

Optical colour
Gray to brownish gray
Anisotropism
Weak
Tropism
Anisotropic
Reflectance R%
(21.3,22.3) 470, (19.2,20.2) 546, (18.5,19.5) 589, (17.65,18.65) 650
UV response
Not fluorescent in UV
Reflected-light panel
19.2 %anisotropic · dual curve
Specimen sRGB 157, 113, 65
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Weak
Reflected colour
Gray to brownish gray

Crystallography

Crystal system
Tetragonal
Space group
I41/acd
Cell parameters
a = 9.464 Å · c = 18.854(1) Å
Z
8
Type-locality form

Dipyramidal crystals, to 1 mm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese654.938329.628
55.89%
8OOxygenOxygen1215.999191.988
32.55%
20CaCalciumCalcium140.07840.078
6.80%
14SiSiliconSilicon128.08528.085
4.76%
Total589.779100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • IMA1979-059
  • Neltneriet

In other languages

German
IMA 1979-059 · Neltnerit
Spanish
Neltnerita
Italian
Neltnerite

Classification

Strunz
10th ed.

9.AG.05

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AGNesosilicates with additional anions; cations in > [6] +- [6] coordinationGroup
  • 9.AG.05NeltneriteSpecies
Dana
8th ed.

07.05.01.02

  • 07Multiple OxidesClass
  • 07.05(AB)2X3Type
  • 07.05.01Humite group (Tetragonal: I41/acd) containing SiGroup
  • 07.05.01.02NeltneriteSpecies
CIM

14.18.19

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.19NeltneriteSpecies

Group, growth & confusion

In the same group
4 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1982Baudracco-Gritti, Célestine, Caye, René, Permingeat, François, Protas, Jean (1982) La neltnérite CaMn6SiO12, une nouvelle espèce minérale du groupe de la braunite. Bulletin de Minéralogie, 105 (2) 161-165 doi:10.3406/bulmi.1982.7598DOI: 10.3406/bulmi.1982.7598
  2. 1983Fleischer, Michael, Pabst, Adolf (1983) New Mineral Names. American Mineralogist, 68 (1-2) 280-283
  3. 1985Baudracco-Gritti, Célestine (1985) Substitution du manganèse bivalent par du calcium dans les minéraux du groupe : braunite, neltnérite, braunite II. Bulletin de Minéralogie, 108 (3) 437-445 doi:10.3406/bulmi.1985.7840DOI: 10.3406/bulmi.1985.7840
  4. 1991de Villiers, Johan P. R., Dobson, Susan M., Buseck, Peter R. (1991) Refinement of the crystal structure of neltnerite, a member of the bixbyite-braunite group of minerals. European Journal of Mineralogy, 3 (3) 567-574 doi:10.1127/ejm/3/3/0567DOI: 10.1127/ejm/3/3/0567
  5. 2001(2001) Neltnerite. Handbook of Mineralogy. Mineralogical Society of America
