Pachnolite

NaCaAlF6 · H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Phn
Discovered
1863
Also known as
  • Pachnoliet
  • Pyroconit
  • Pyroconita
  • +1 more

Where it forms, where it's found

Type locality
Ivigtut Mine
  1. Ivigtut stock
  2. Arsuk Fjord
  3. Sermersooq
  4. Greenland

61.2061°, -48.1756°

18recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colourless · white · colourless in transmitted light
Streak
White
Tenacity
brittle
Cleavage
Poor/Indistinct

On (001).

Fracture
Irregular/Uneven
Density
2.983 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.411 – 1.42
Surface relief
Low
Principal indices
nα 1.411 · nβ 1.413 · nγ 1.42
Dispersion
r > v
Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 12.117(4) Å · b = 10.414(3) Å · c = 15.680(4) Å
Cell angles
β = 90.37(2) °
Ratio a:b:c
1 : 0.859 : 1.294
Z
16
Morphology

Crystals prismatic [001], commonly acutely terminated. Terminated by (001) at times. (110) striated parallel to the intersection with (001). Massive, cleavale to granular; stalactitic masses.

Twinning

On (100) common, yielding crystals with an orthorhombic appearance; giving a grid pattern in thin section.

Epitaxy

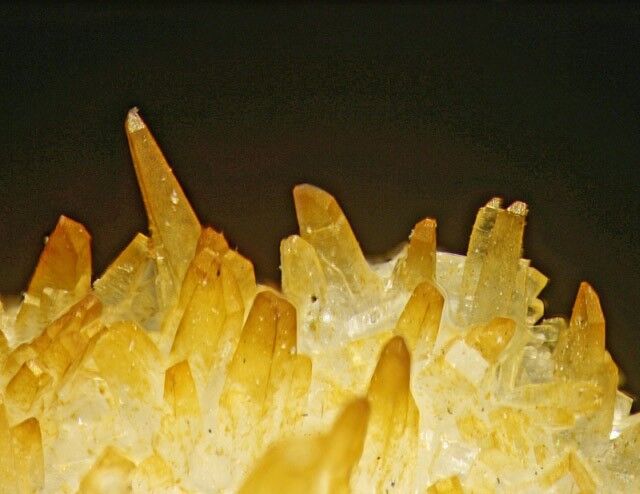

Oriented growths of thomsenolite on pachnolite, with thomsenolite (001) and (110) quasi-parallel to pachnolite (110) and (001). Also with thomsenolite (110) and (11_0) quasi-parallel to pachnolite (110) and (001).

Comment

Non-standard space-group setting F2/d.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
9FFluorineFluorine618.998113.988
51.33%
20CaCalciumCalcium140.07840.078
18.05%
13AlAluminiumAluminium126.98226.982
12.15%
11NaSodiumSodium122.99022.990
10.35%
8OOxygenOxygen115.99915.999
7.21%
1HHydrogenHydrogen21.0082.016
0.91%
Total222.053100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Pachnoliet
  • Pyroconit
  • Pyroconita
  • Pyroconite

In other languages

German
Pachnolith
Spanish
Pachnolita
Italian
Pachnolite

Classification

Strunz
10th ed.

3.CB.40

  • 3HalidesClass
  • 3.CComplex halidesDivision
  • 3.CBNeso-aluminofluoridesGroup
  • 3.CB.40PachnoliteSpecies
Dana
8th ed.

11.06.05.01

  • 11Halide ComplexesClass
  • 11.06Aluminofluorides - Isolated OctahedraType
  • 11.06.05— unnamed intermediate level —Group
  • 11.06.05.01PachnoliteSpecies
CIM

8.6.18

  • 8Halides - Fluorides, Chlorides, Bromides and Iodides; also Fluoborates and FluosilicatesClass
  • 8.6Halides of AlGroup
  • 8.6.18PachnoliteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1863Knop, A. (1863) Ueber Pachnolith, ein neues Mineral. Annalen der Chemie und Pharmacie, Heidelberg, 127, 61-68.
  2. 1875Wöhler (1875) Annalen der Physik, Halle, Leipzig: 180: 231 (as Pyroconite).
  3. 1876Koenig, G.A. (1876) On Pachnolite and Thomsenolite. Proceedings of the Academy of Natural Sciences of Philadelphia, 42-50.
  4. 1877Klein, J.F.C. (1877) Briefliche Mitteilungen über die Mineralien Kryolith, Pachnolith, und Thomsenolith. Neues Jahrbuch für Mineralogie: 808-809.
  5. 1882Des Cloizeaux, Alfred (1882) Notes sur les caractères optiques et cristallographiques de la Pachnolite et de la Thomsénolite. Bulletin de Minéralogie, 5 (9) 310-316 doi:10.3406/bulmi.1882.1767DOI: 10.3406/bulmi.1882.1767
