Parsonsite

Pb2(UO2)(PO4)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Pso
Discovered
1923
Also known as
  • Parsonsiet
  • UM2000-//-PO:AlPbU
  • Unnamed (Pb-U-Al Phosphate)

Where it forms, where it's found

Geological setting

Oxidized zone of a hydrothermal uranium deposit.

Type locality
Shinkolobwe Mine
  1. Shinkolobwe
  2. Kambove Territory
  3. Haut-Katanga
  4. DR Congo

-11.0486°, 26.5508°

64recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Light citron-yellow · honey-brown · green-brown · pale rose (rare) · pale yellow in transmitted light.
Cleavage
None Observed
Fracture
Conchoidal
Density
5.72 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 11 – 26°
Refractive index
1.85 – 1.86
Surface relief
Very high
Principal indices
nα 1.85 · nγ 1.86
Pleochroism
Non-pleochroic
Dispersion
relatively strong
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.842(4) Å · b = 10.383(6) Å · c = 6.670(40) Å
Cell angles
α = 101.26(7) ° · β = 98.17(7) ° · γ = 86.38(7) °
Ratio a:b:c
1 : 1.518 : 0.975
Unit cell volume
459.8 ų
Z
2
Morphology

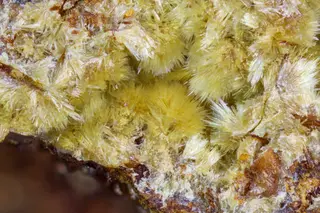

Crystals lath-like, elongated [001] and flattened (010), exhibiting (001), (101), and (100). Radial-fibrous spherulites; commonly as crusts and powdery aggregates.

Type-locality form

Minute tabular crystals.

Comment

Non-standard setting; reduced cell: 6.670, 6.842, 10.383 Å, 86.38, 78.74, 81.83°. Cell parameters from Burns (2000)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
47.39%
92UUraniumUranium1238.029238.029
27.22%
8OOxygenOxygen1015.999159.990
18.30%
15PPhosphorusPhosphorus230.97461.948
7.09%
Total874.367100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Parsonsiet
  • UM2000-//-PO:AlPbU
  • Unnamed (Pb-U-Al Phosphate)

In other languages

German
Parsonsit
Spanish
Parsonsita
Italian
Parsonsite

Classification

Strunz
10th ed.

8.EA.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EAUO2:RO4 = 1:2Group
  • 8.EA.10ParsonsiteSpecies
Dana
8th ed.

40.2a.31.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.31— unnamed intermediate level —Group
  • 40.2a.31.01ParsonsiteSpecies
CIM

19.11.36

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.36ParsonsiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1923Wherry, E.T. (1923) New minerals: new species. American Mineralogist: 8: 150-151.
  2. 1923Schoep, A. (1923) Sur la parsonsite, nouveau minéral radioactif. Comptes rendus hebdomadaires des séances de l'Académie des Sciences, Paris: 176: 171-173 (in French). https://gallica.bnf.fr/ark:/12148/bpt6k31295/f171.item
  3. 1926Billiet, Valère (1926) Détermination des indices de réfraction de la becquerélite, de la curite, de la kasolite, de la fourmariérite, de la parsonsite, de la dumontite, et de l'ianthinite. Bulletin de la Société française de Minéralogie, 49 (3). 136-140 doi:10.3406/bulmi.1926.4309DOI: 10.3406/bulmi.1926.4309
  4. 1950Frondel, Clifford (1950) Studies of uranium minerals (I) : Parsonite and randite. American Mineralogist, 35 (3-4) 245-250
  5. 1958Frondel, Clifford (1958) Systematic mineralogy of uranium and thorium. Bulletin 1064. US Geological Survey doi:10.3133/b1064 DOI: 10.3133/b1064
